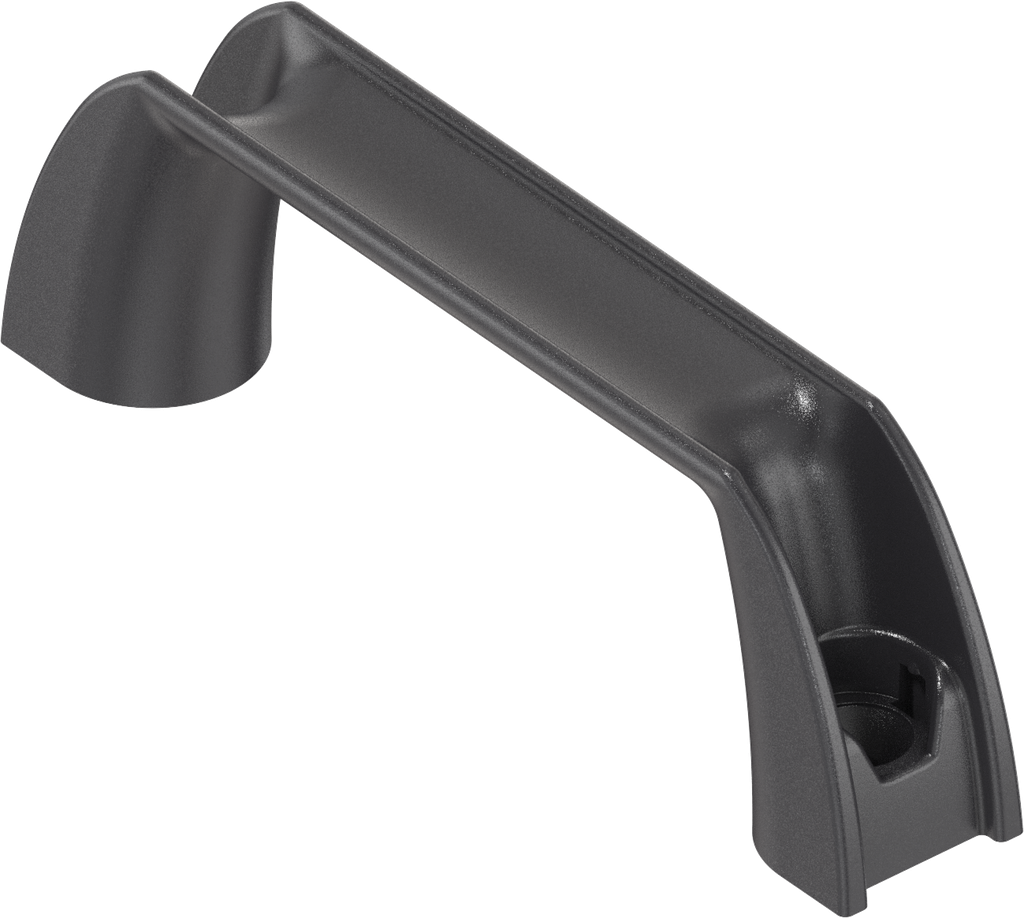

Bow-type handle with countersunk, Polyamide GF black
Cover for bow-type handle, Antimicrobial polyamide GF black
Product information:
Bow-type handle for countersunk screw with small head M5 or blind rivet Ø 4.8 mm small head = DIN ISO 2009, 2010, 7046-1, 7046-2, 7047 Bow-type handle and cover for bow-type handle are also available in colour Note Antimicrobial additive: biomaster silver biocide. Please use biocides responsibly.

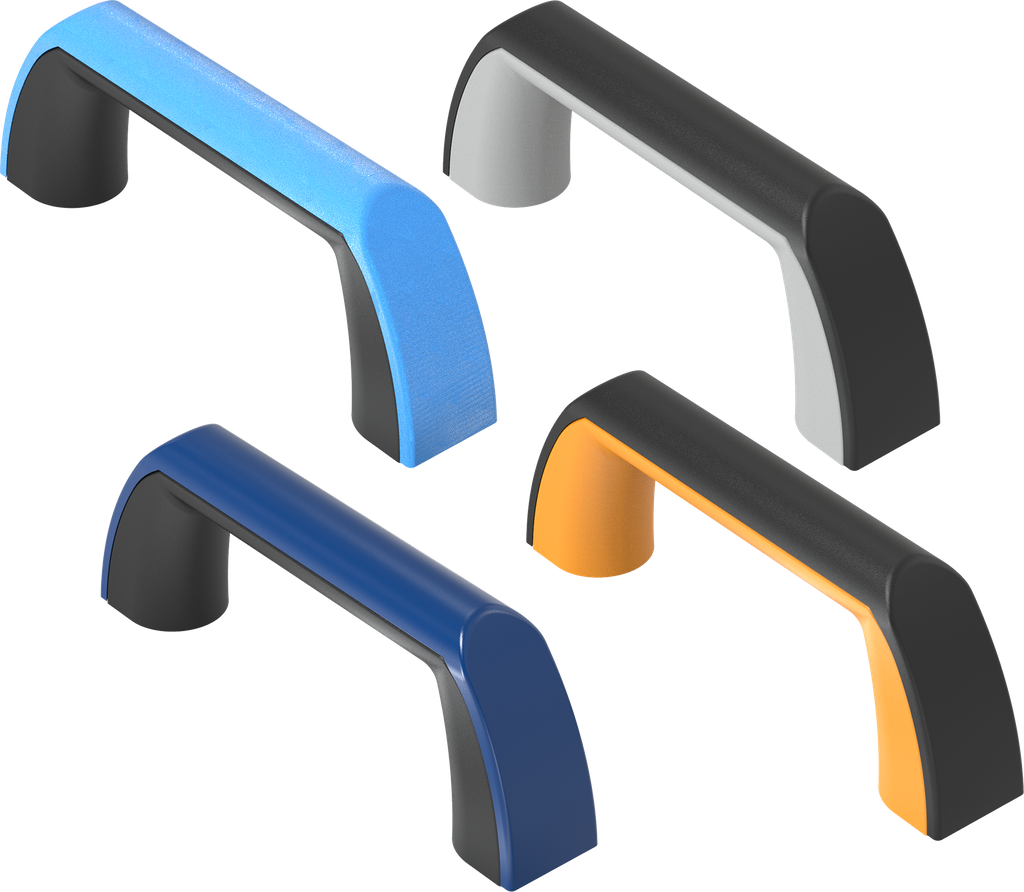

Bow-type handle and cover for bow-type handle are also available in colour
Note
Antimicrobial additive: biomaster silver biocide.
Please use biocides responsibly.

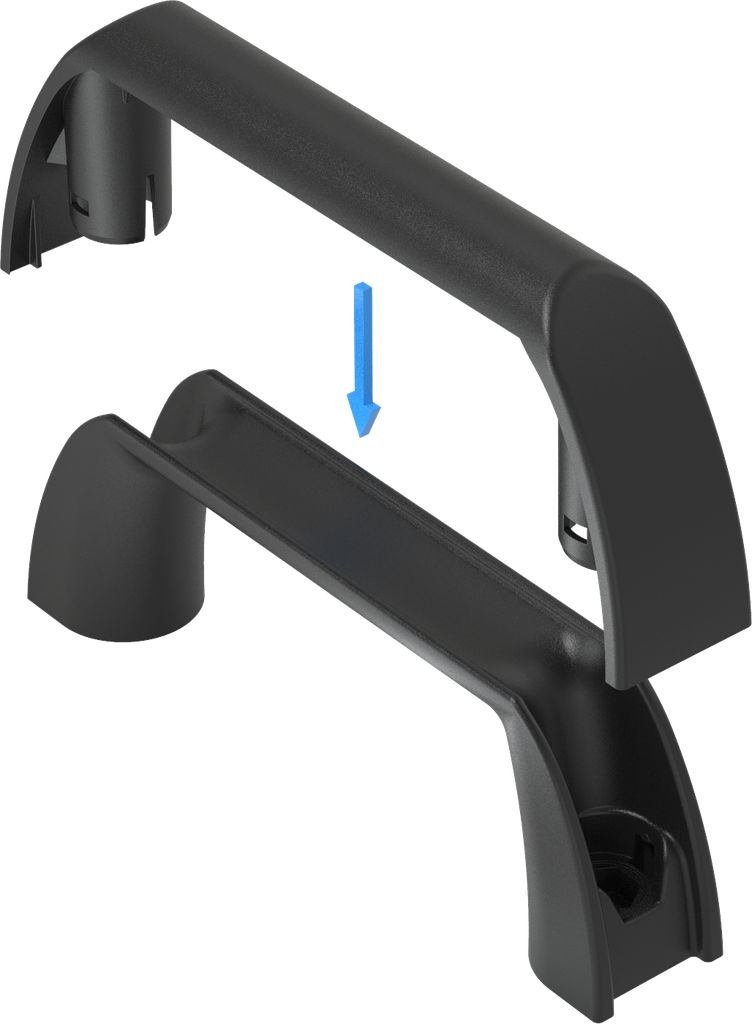

Assembly instruction:
The cover for bow-type handle 1095-37-WI is suitable for the bow-type handle
Internal Reference:
1095-36-WI
Product Type:
Handle
Material:
Antimicrobial polyamide GF
Program:
1095
Surface:
black
Catalog sheet:
6A-120

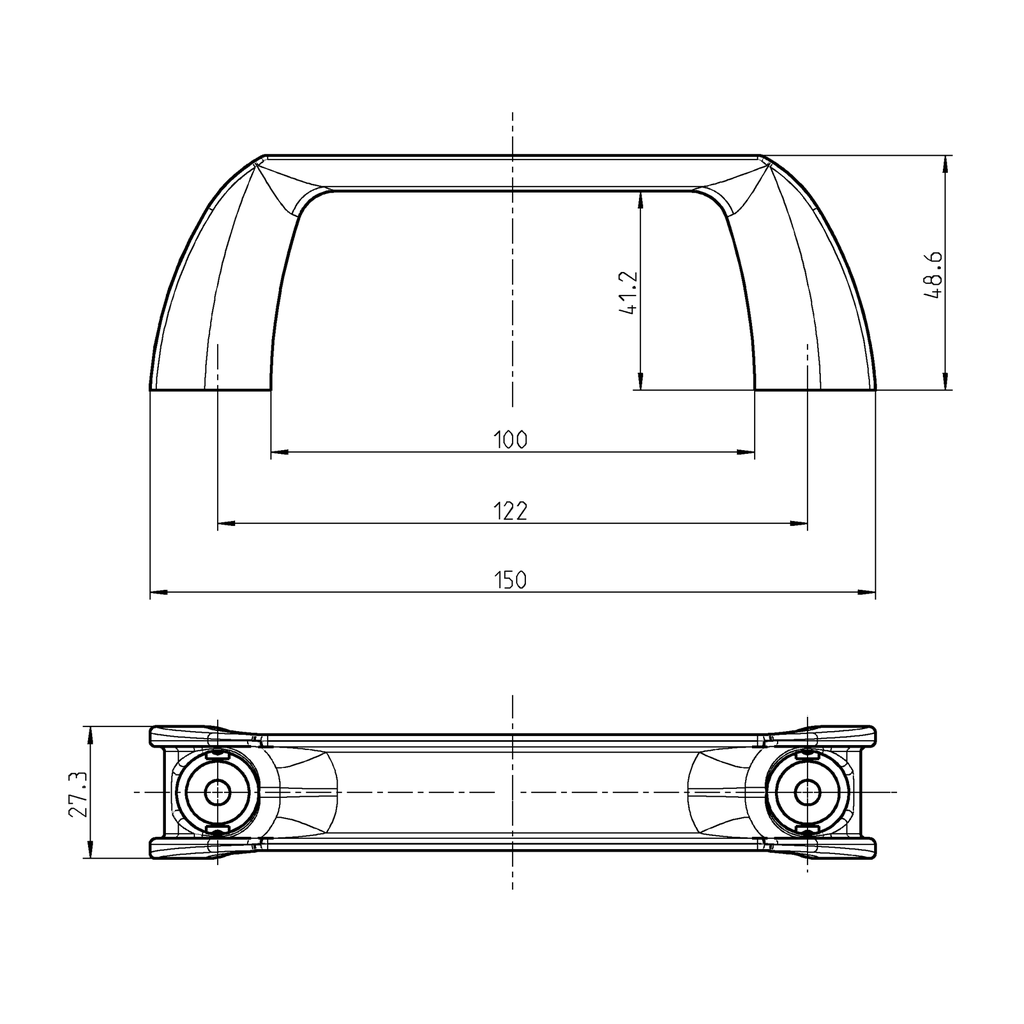

Dimension A:
122 mm
Fixing type of handle:
screw-on from outside,rivetable
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
