Bow-type handle, Die-cast aluminium blank

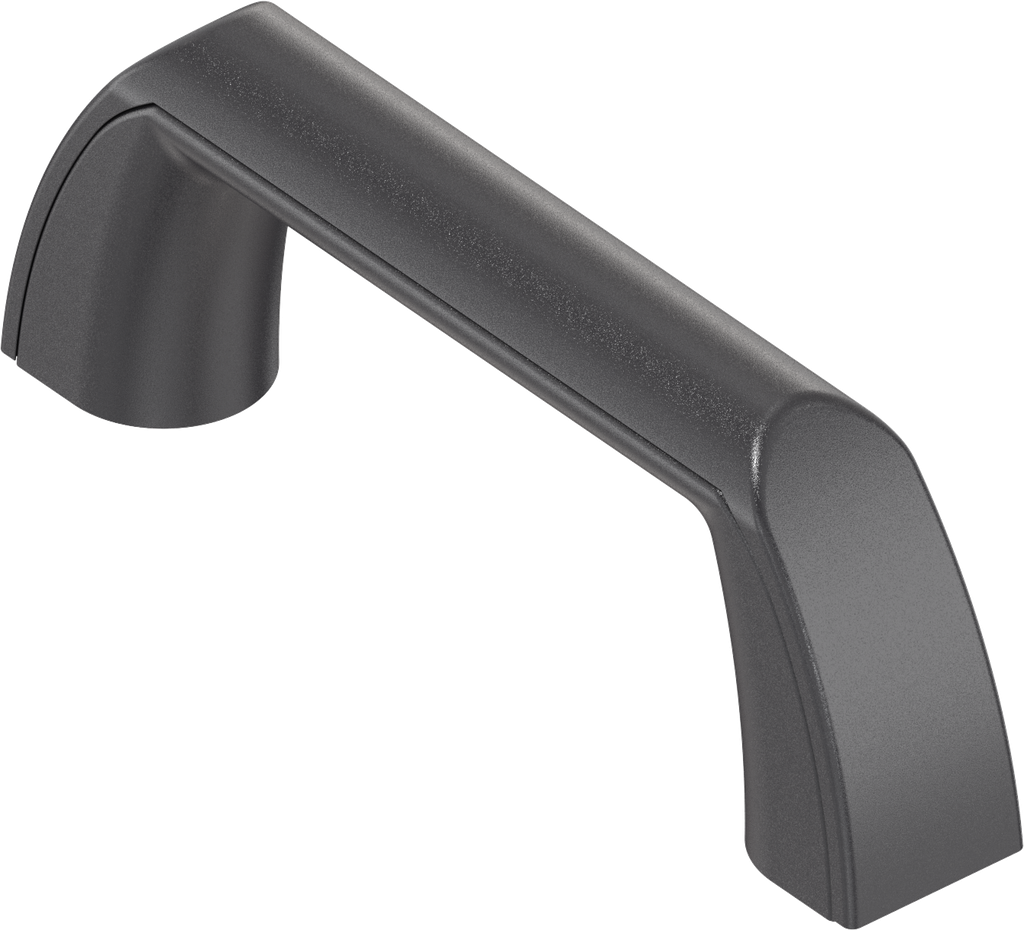

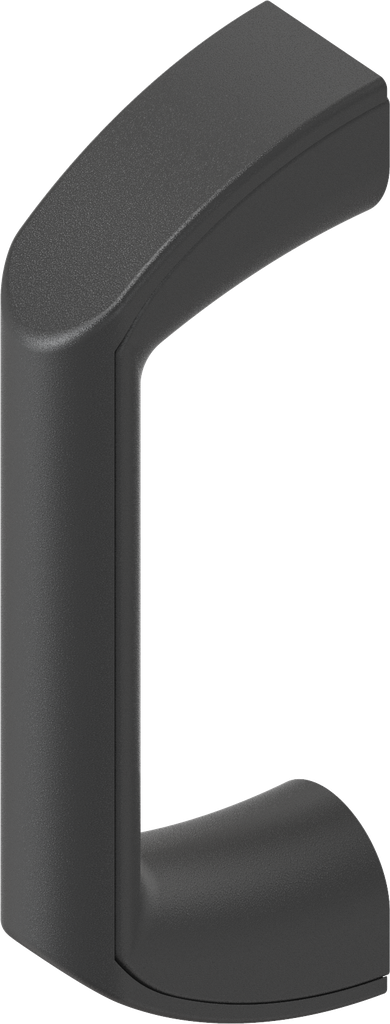

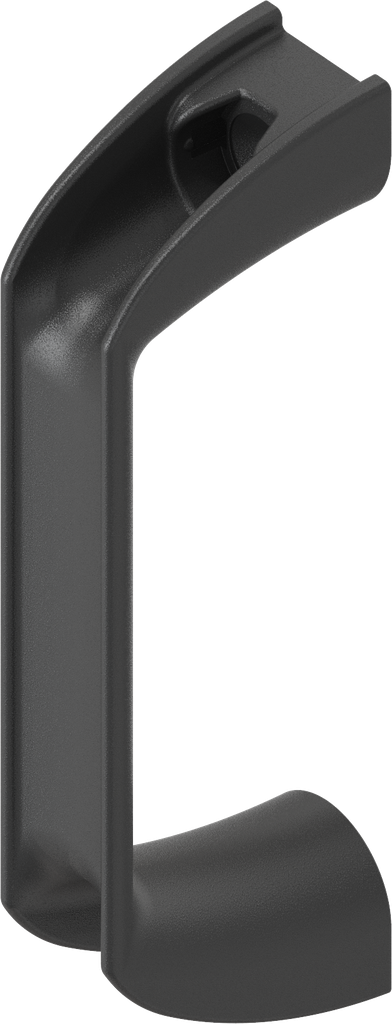

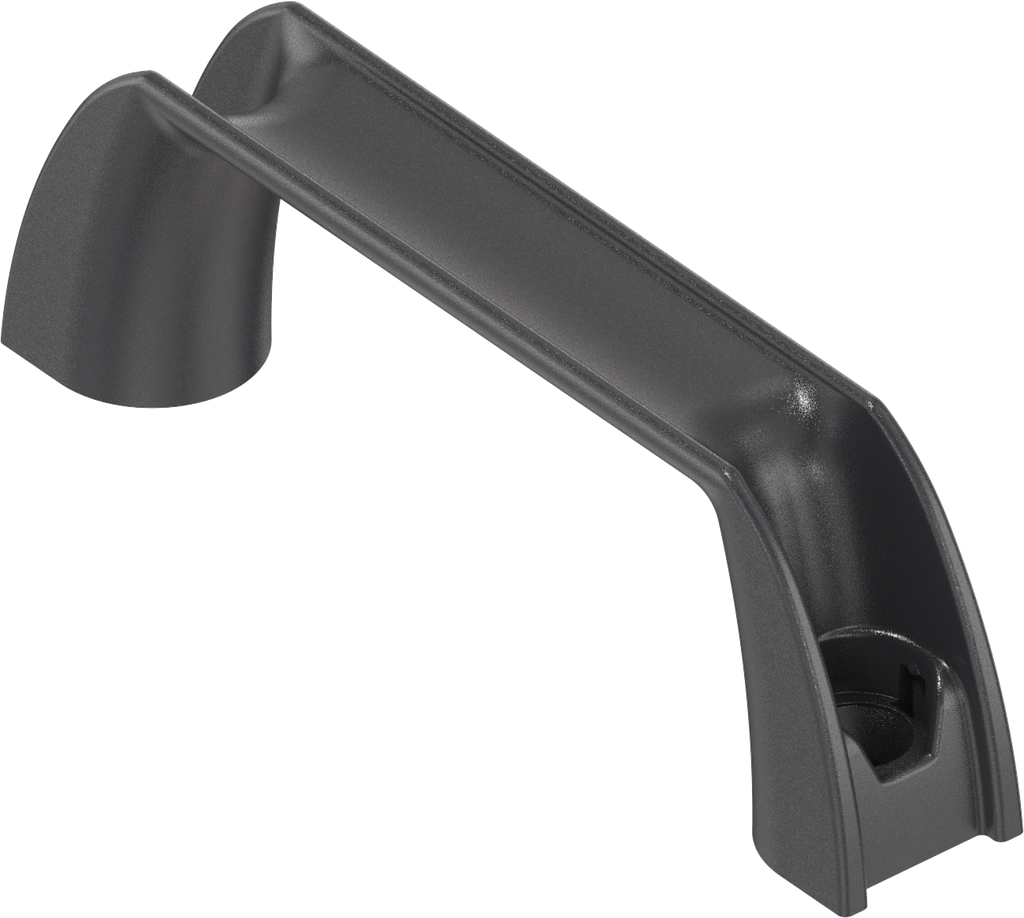

Bow-type handle with countersunk, Antimicrobial polyamide GF black
Product information:
Bow-type handle for countersunk screw with small head M5 or blind rivet Ø 4.8 mm
Small head = DIN ISO 2009, 2010, 7046-1, 7046-2, 7047

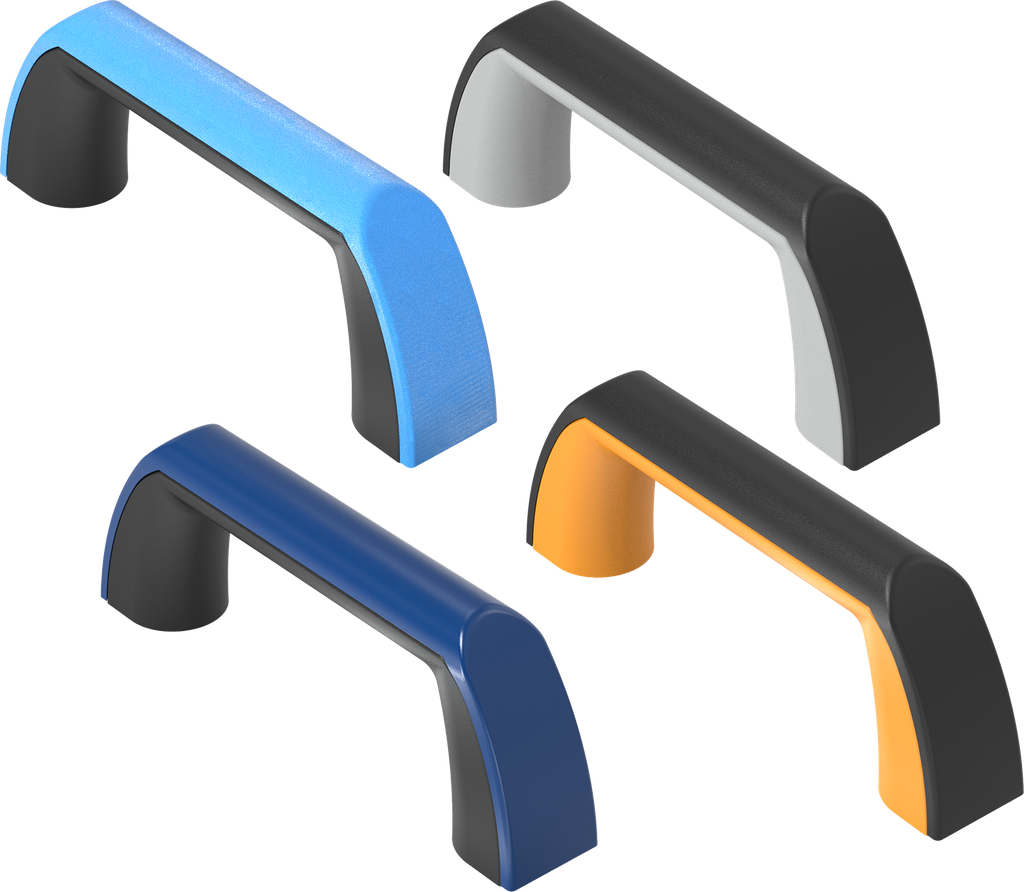

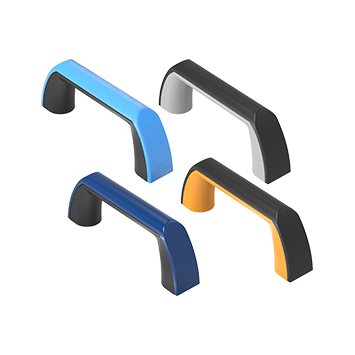

Bow-type handle and cover for bow-type handle are also available in colour
Assembly instruction:

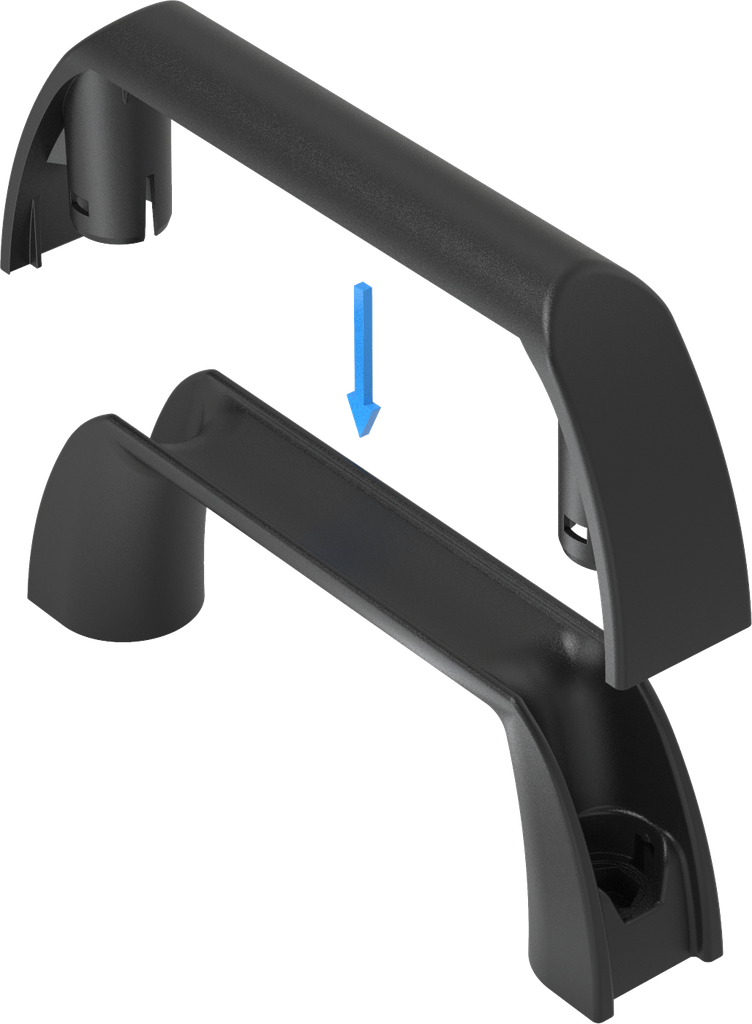

The cover for bow-type handle 1095-37 is suitable for the bow-type handle.
Internal Reference:
1095-36
Product Type:
Handle
Material:
Polyamide GF
Program:
1095
Surface:
black
Catalog sheet:
6A-120

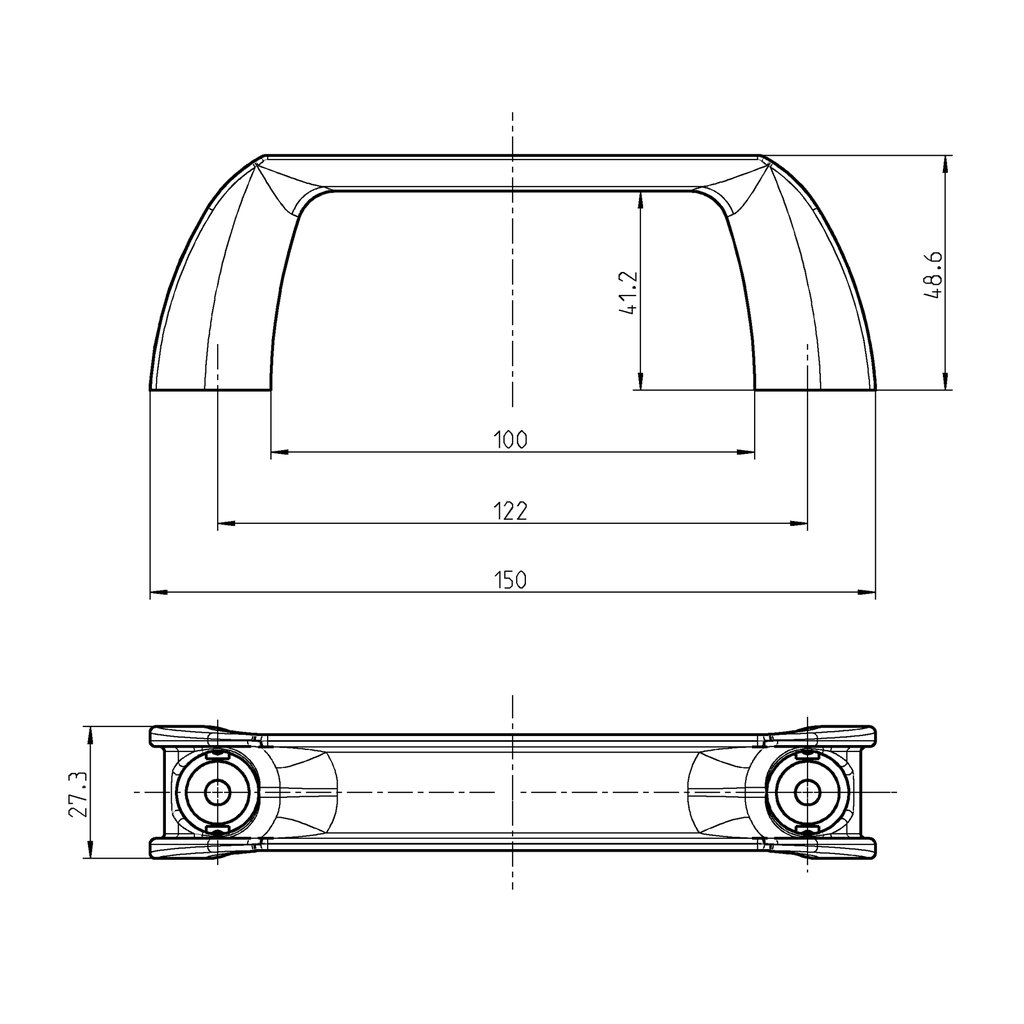

Dimension A:
122 mm
Article with property rights:
Yes
Fixing type of handle:
screw-on from outside,rivetable
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
