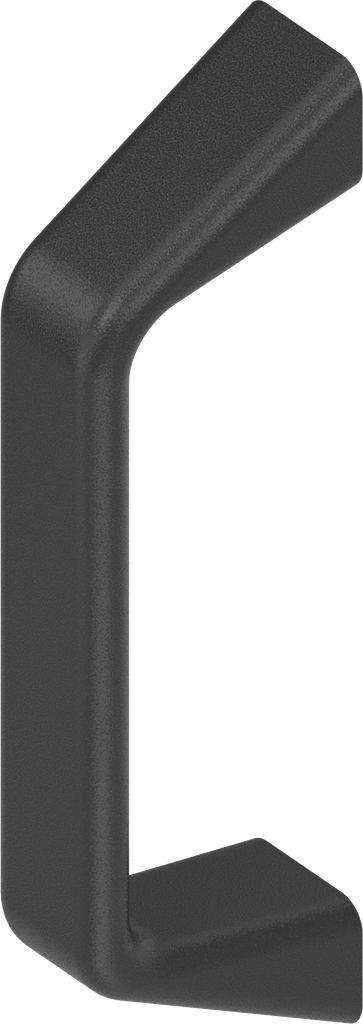

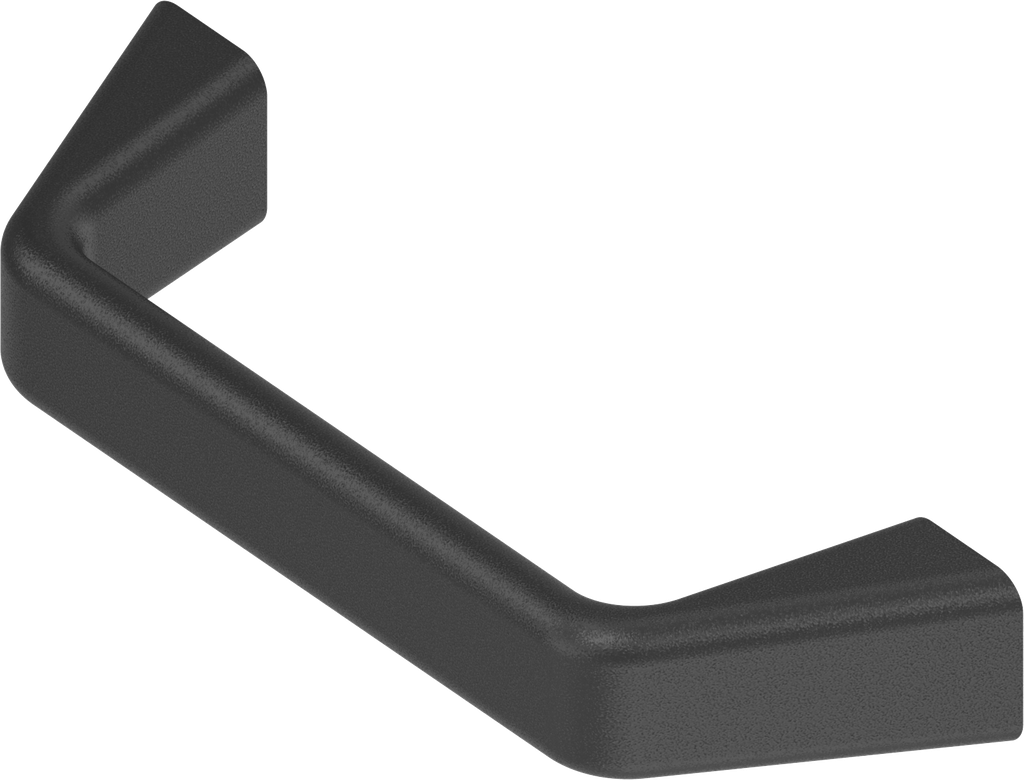

Bow-type handle, Die-cast aluminium black plastic-coated; 1095-30-120AA

https://20241023-uat.emka.opaas.sh/products/1095-30-120aa https://20241023-uat.emka.opaas.sh/web/image/product.template/62242/image_1920?unique=cd9810d

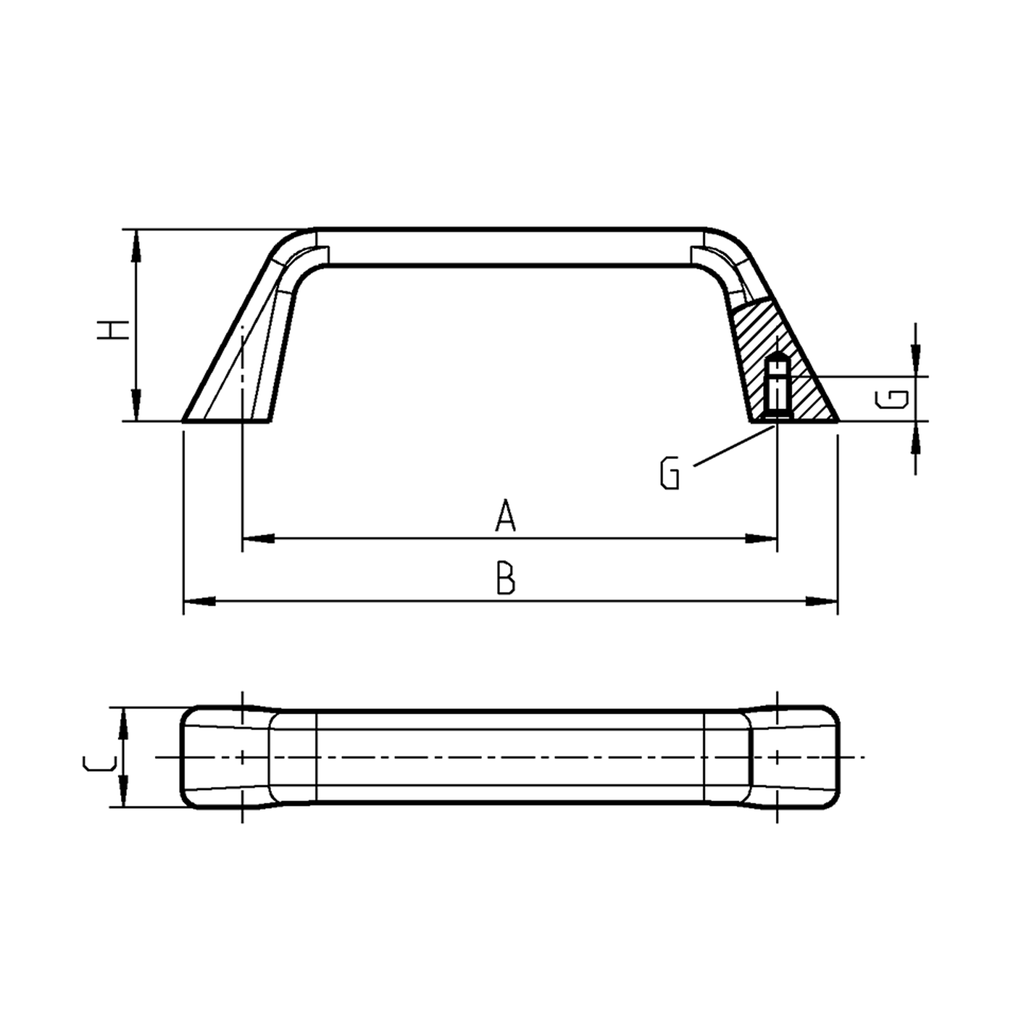

A = 120 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1095-30-120AA
    Product Type: Handle
    Material: Die-cast aluminium
    Program: 1095
    Surface: black plastic-coated
    Catalog sheet: 6A-180
    Dimension A: 120 mm
    Dimension B: 147 mm
    Fixing type of handle: screw-on from inside
    Dimension C: 22.50 mm
    G = thread specification: M6 x 10
    Handle Art(2): Fixed handle, tube handle, bow-type handle and machine handle
    Dimension H: 43 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 6A-180
    CAD file | 1095-30-120AA_igs
    CAD file | 1095-30-120AA_stp
