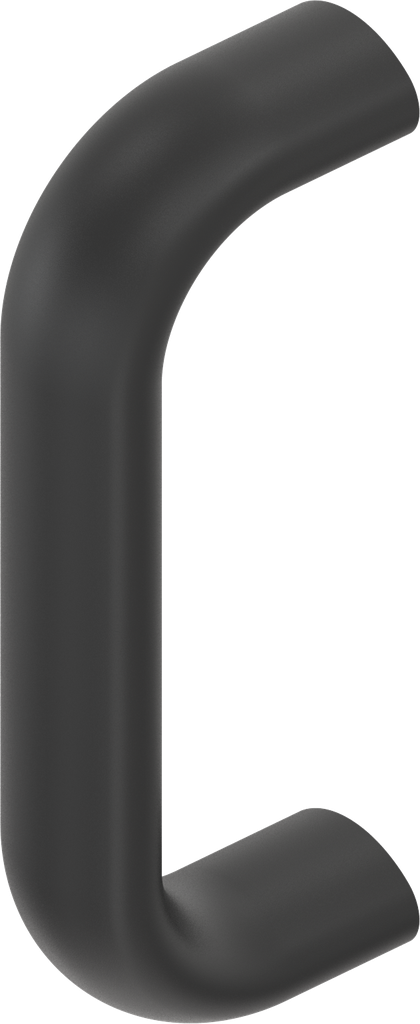

Bow-type handle, Aluminium black plastic-coated; 1095-27-128AA
A = 128 mm
Internal Reference:
1095-27-128AA
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
black plastic-coated
Catalog sheet:
6A-160

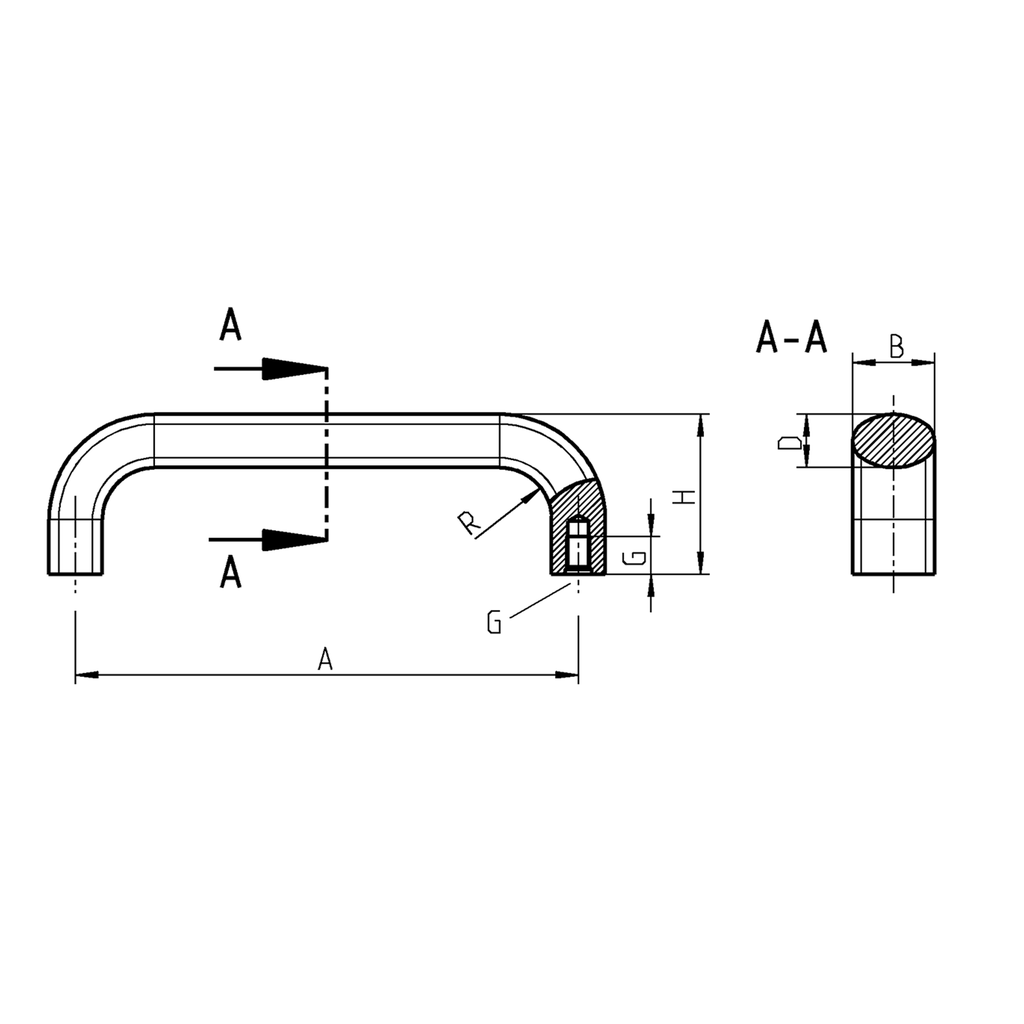

Dimension A:
128 mm
Dimension B:
26 mm
Fixing type of handle:
screw-on from inside
Dimension D:
17 mm
G = thread specification:
M8-12
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
55 mm
Dimension R:
17 mm
