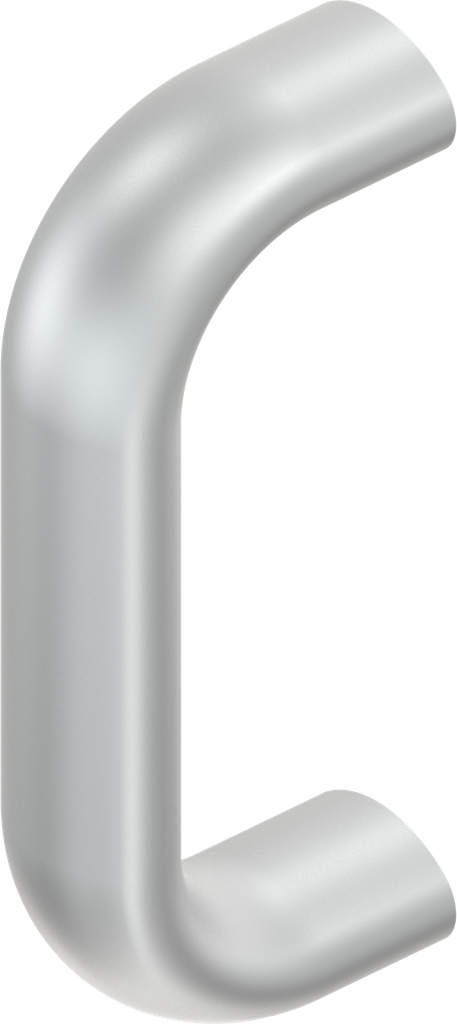

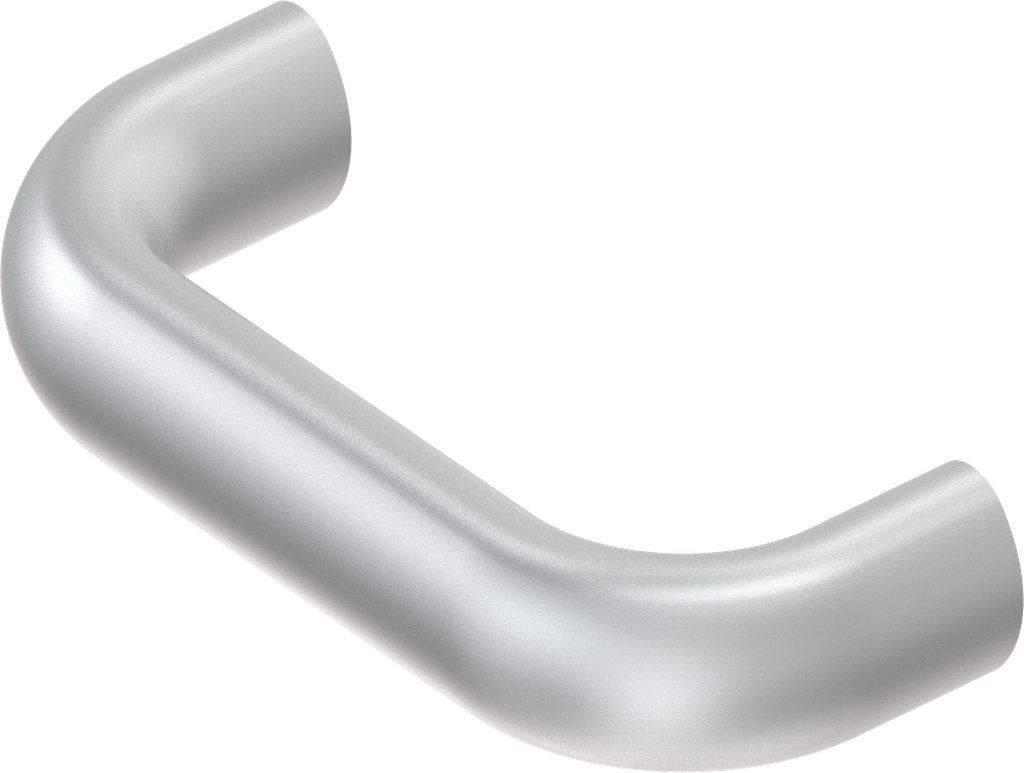

Bow-type handle, Aluminium blank; 1095-27-112KB
A = 112 mm
Internal Reference:
1095-27-112KB
Product Type:
Handle
Material:
Aluminium
Program:
1095
Surface:
blank
Catalog sheet:
6A-160

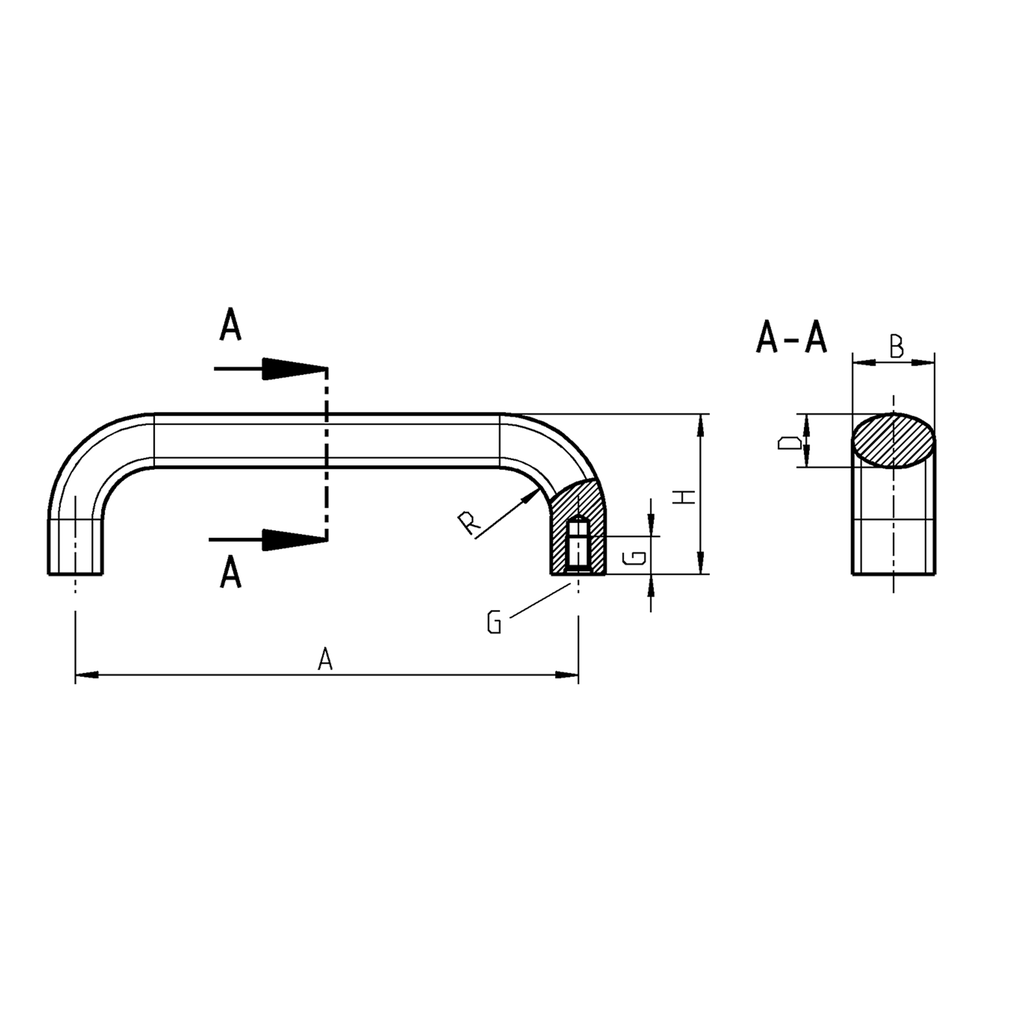

Dimension A:
112 mm
Dimension B:
26 mm
Fixing type of handle:
screw-on from inside
Dimension D:
17 mm
G = thread specification:
M8x12
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
53 mm
Dimension R:
17 mm
