Steel tube Ø 30, Steel, plastic-coated black
Middle stay, Polyamide GF black

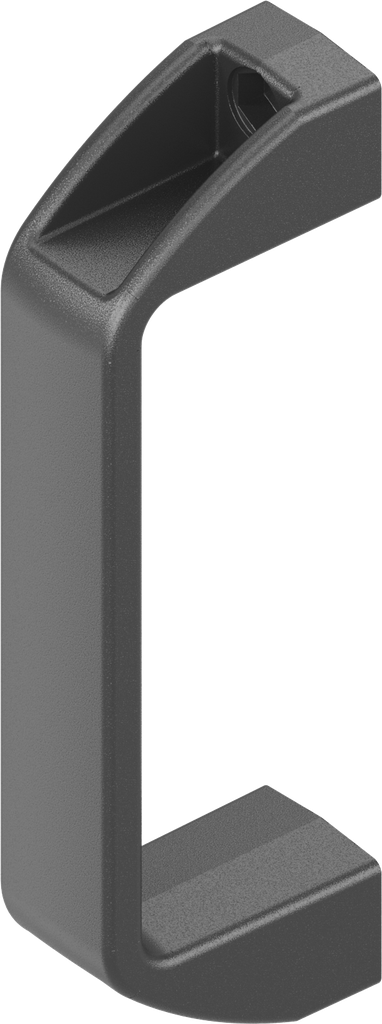

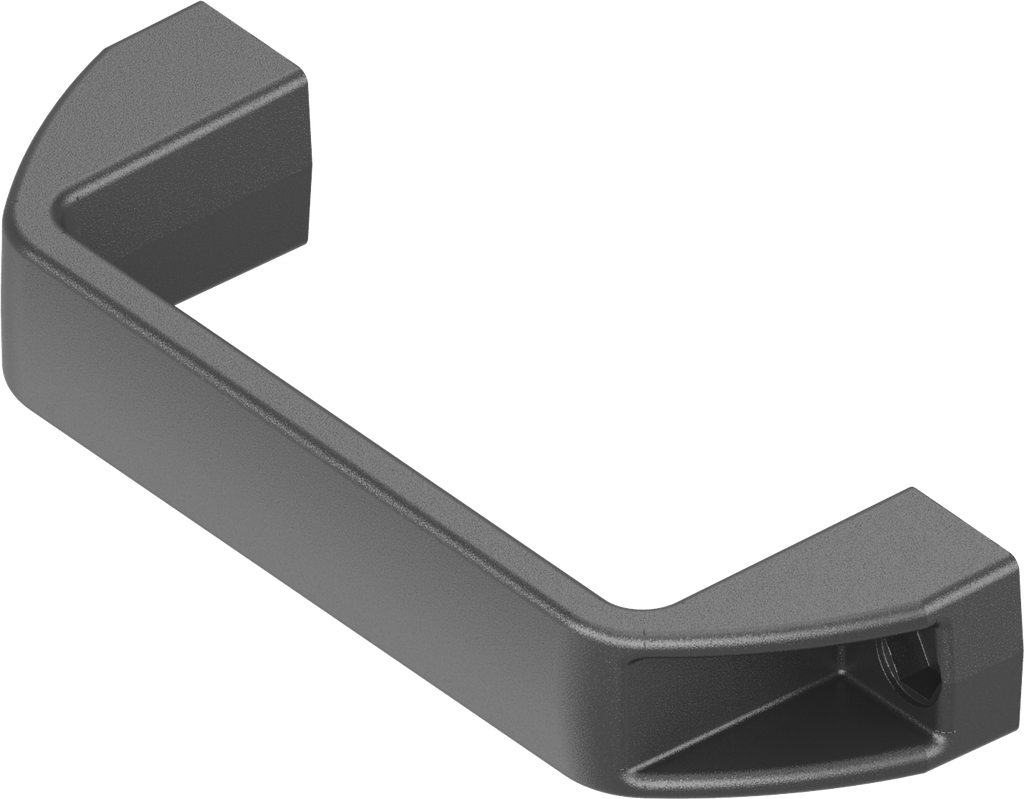

Bow-type handle, Polyamide GF black; 1095-19
A = 152 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1095-19
Barcode:
1095-000019-0000000
Product Type:
Handle
Material:
Polyamide GF
Program:
1095
Surface:
black
Catalog sheet:
6A-120

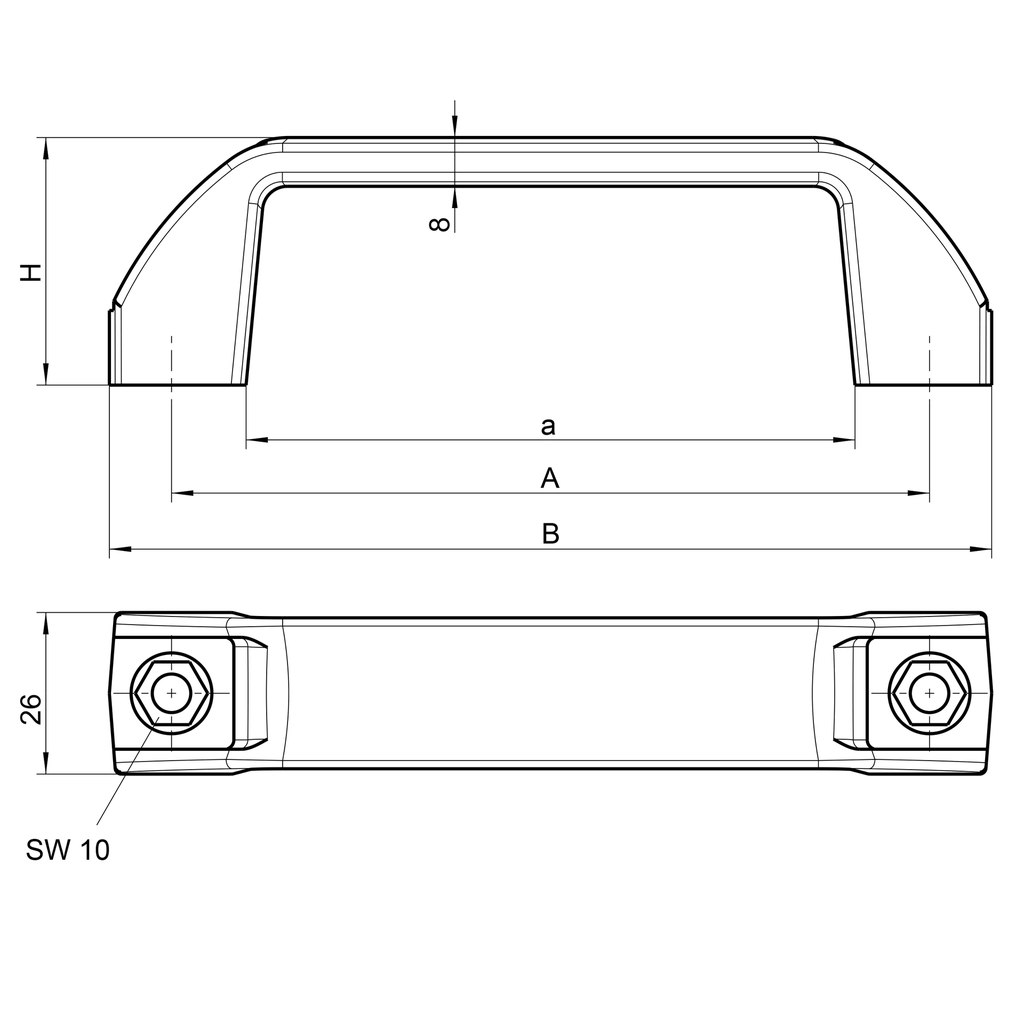

Dimension a:
118.50 mm
Dimension A:
152 mm
Dimension B:
167 mm
Fixing type of handle:
Handle for hexagon screw M6,Handle for cylinder screw M6 according to DIN 4017/1207
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
53.50 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
