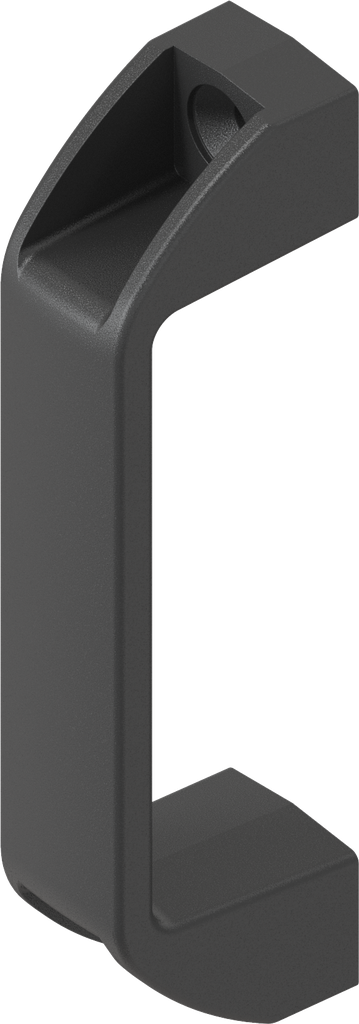

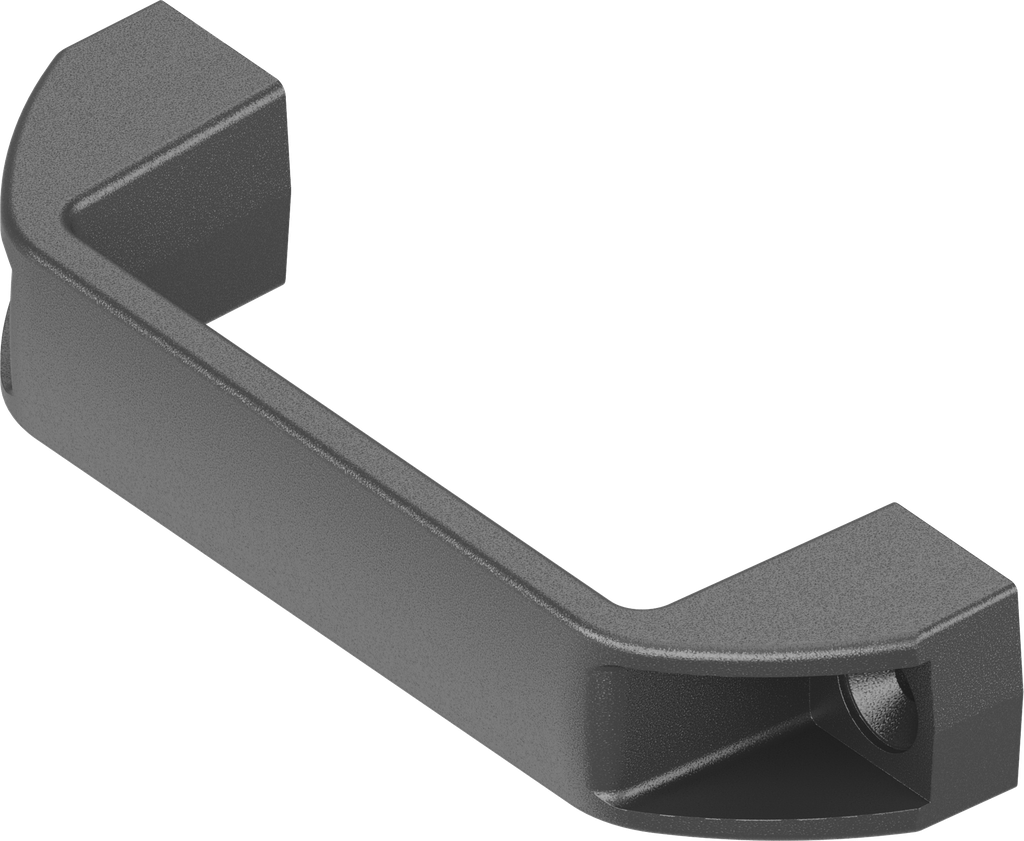

Bow-type handle, Polyamide GF black
Handle piece, Polyamide GF black
Internal Reference:
1095-06
Product Type:
Handle
Material:
Polyamide GF
Program:
1095
Surface:
black
Catalog sheet:
6A-120

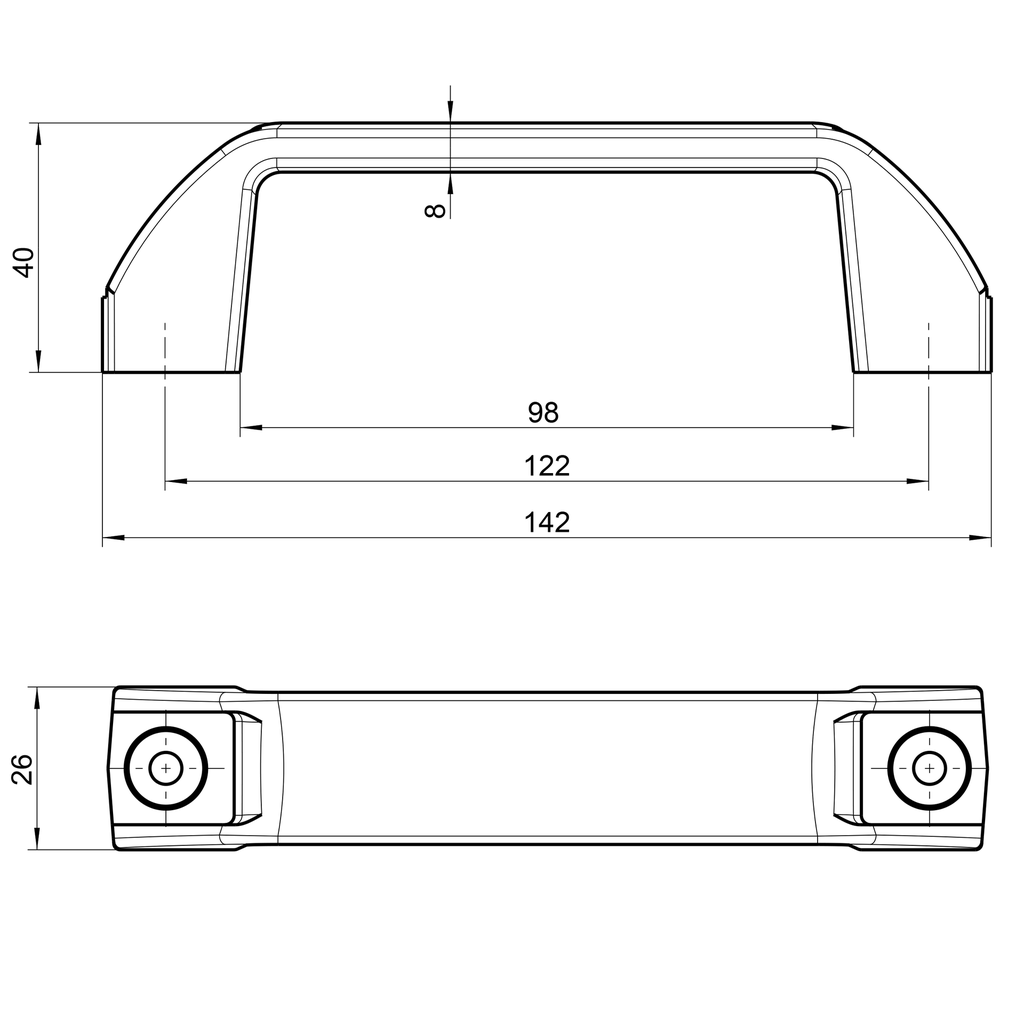

Dimension a:
98 mm
Dimension A:
122 mm
Dimension B:
142 mm
Fixing type of handle:
Handle for countersunk screw with small head M5 or blind rivet Ø 4.8 mm
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
40 mm
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
