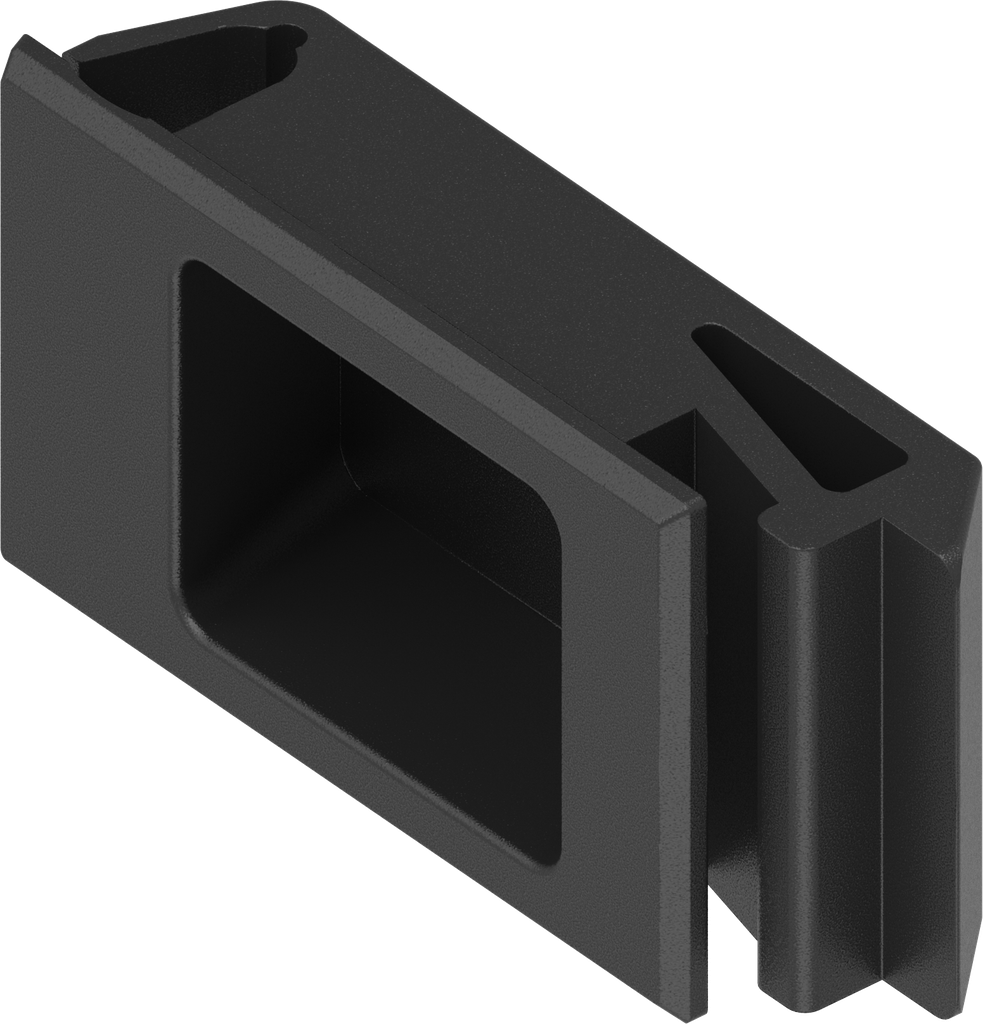

Snap lock, clip-in, Polyamide GF black
Snap lock, clip-in, Polyamide GF black
Akeneo Note:
Lockable e.g. with small quarter turns of Program 1022
Internal Reference:
1091-U114-01
Product Type:
Other latch
Program:
1091
Catalog sheet:
8A-420
Material of the module :
Polyamide GF
Surface of the module:
black

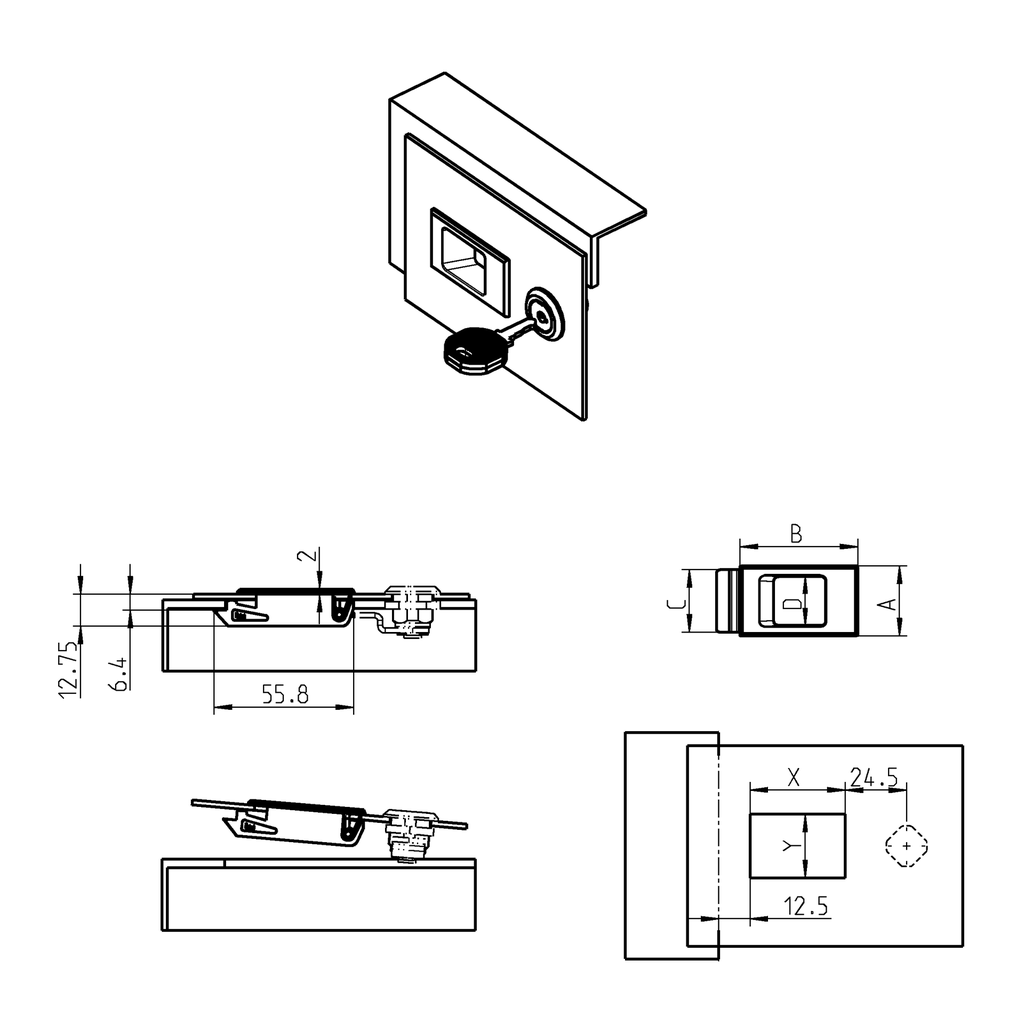

Dimension A:
28 mm
Dimension B:
47 mm
Dimension C:
25 mm
Dimension D:
20 mm
Mounting Positions :
Inside the sealing,Outside the sealing
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
1.60 mm
Door Version :
Left,Right
Lock Type:
Snap lock
Dimension X:
38 mm
Dimension Y:
25.50 mm
