Blind plug, Polyethylene black

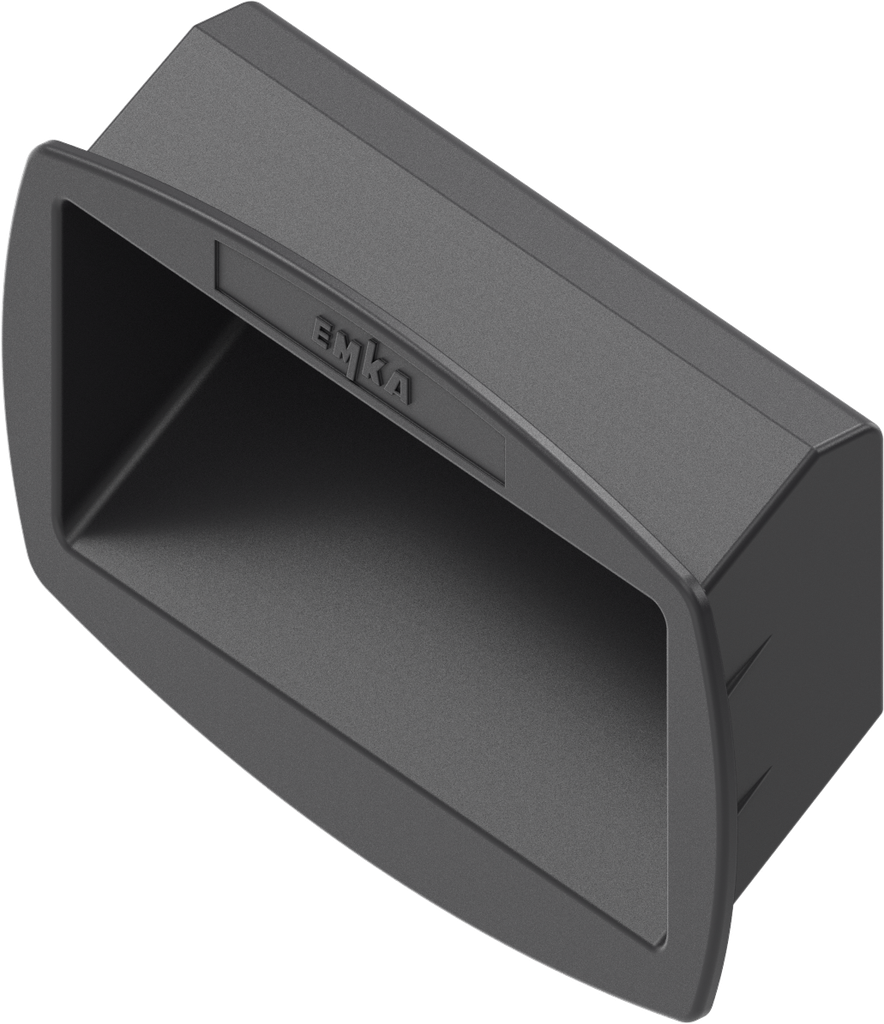

Recessed grip for Ts = 1.75 - 2.2 mm, Polyamide black
Assembly instruction:

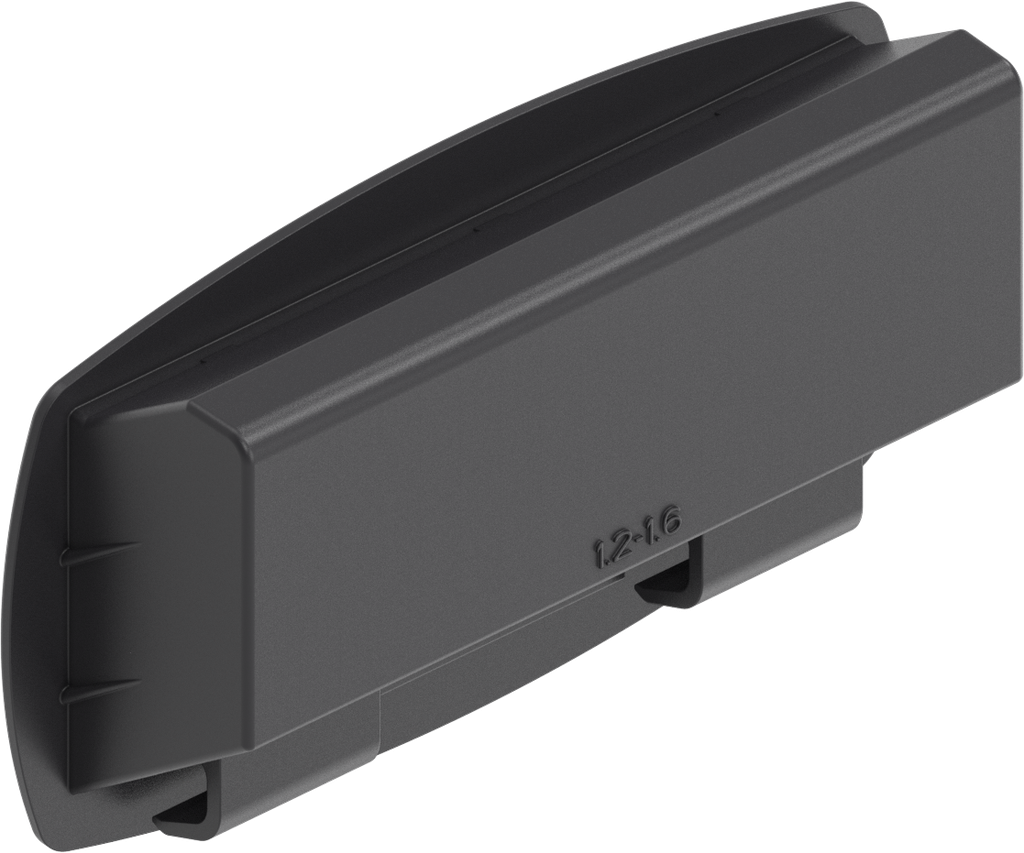

Pull is fitted with clip-in arms which snap automatically into place behind the door leaf.
Internal Reference:
1091-91
Product Type:
Handle
Material:
Polyamide
Program:
1091
Surface:
black
Fixing type of handle:
clip-on, assembly without tools
Handle Art(2):
Pull
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
1.60 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
