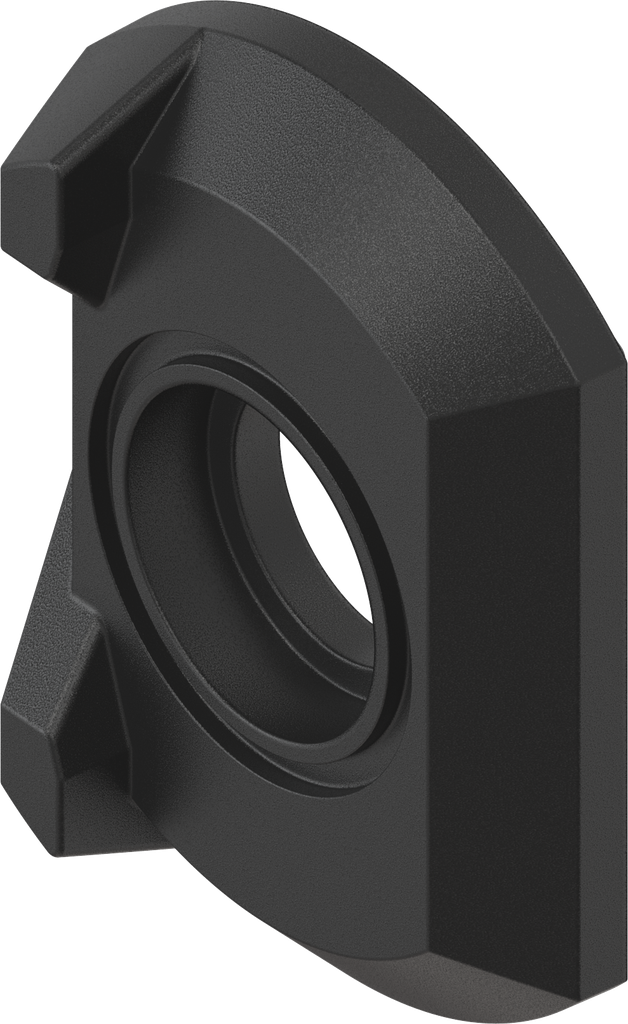

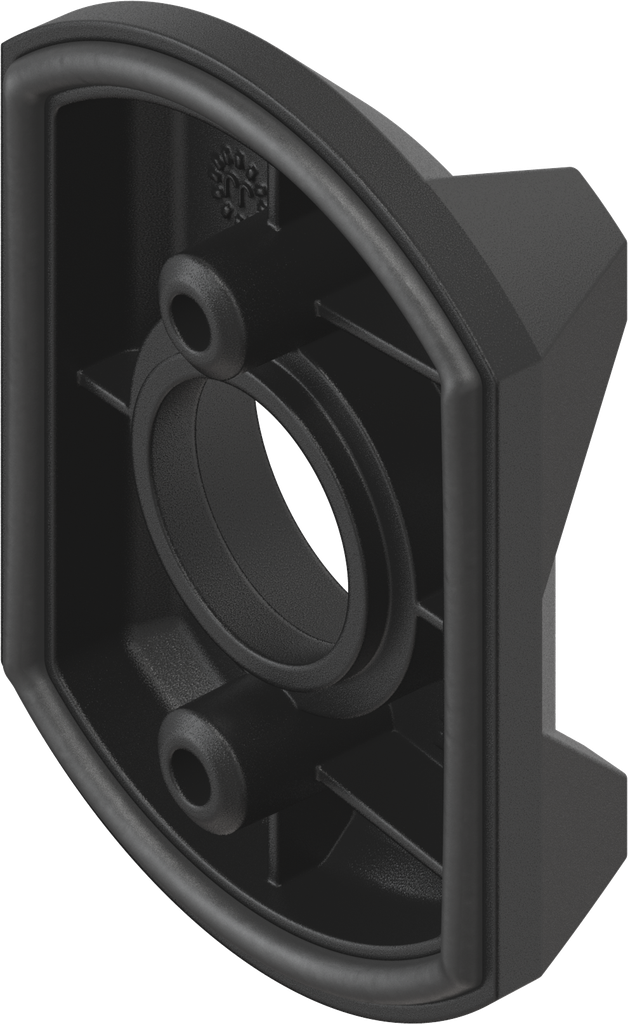

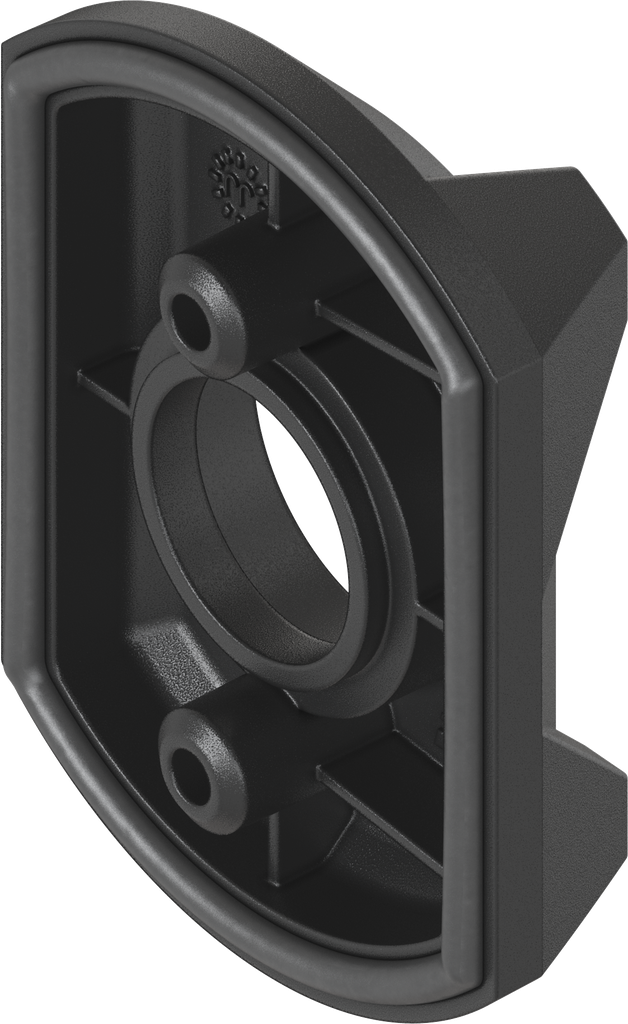

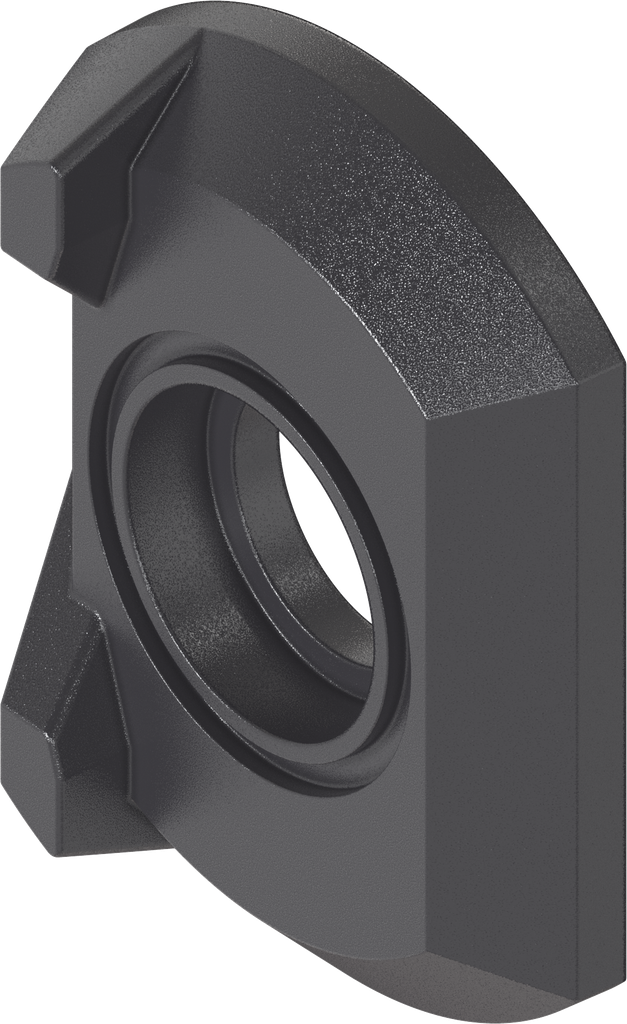

Bezel foamed, Polyamide GF black
Bezel with 180° stopper for lockable heavy duty latch, Polyamide GF black

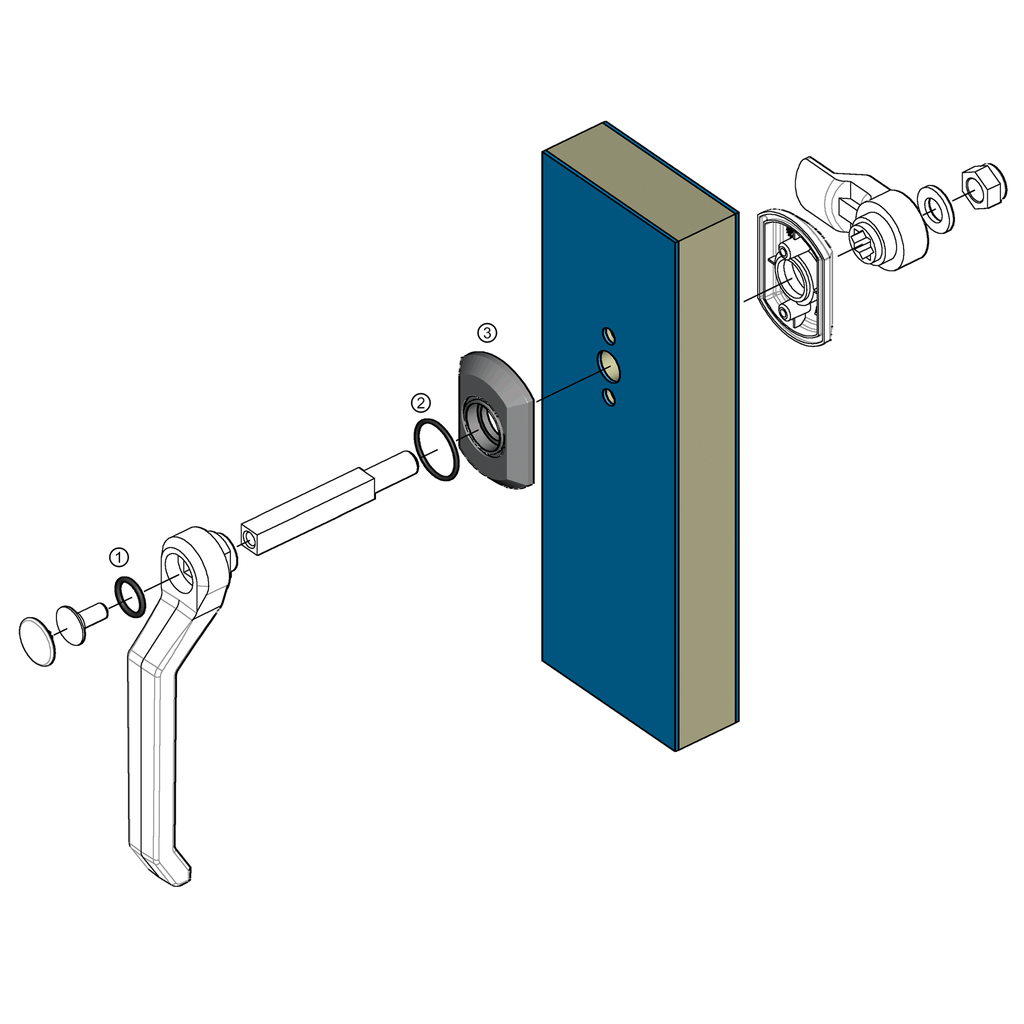

Product information:
1 = O-ring for outside handle
2 = O-ring for bezel
3 = Foamed bezel
IP 65 is achieved using O-ring set 1091-U90
Internal Reference:
1091-17-1G
Product Type:
Bezel
Material:
Polyamide GF
Program:
1091
Surface:
black
Integrated seal:
Yes
Rosette:

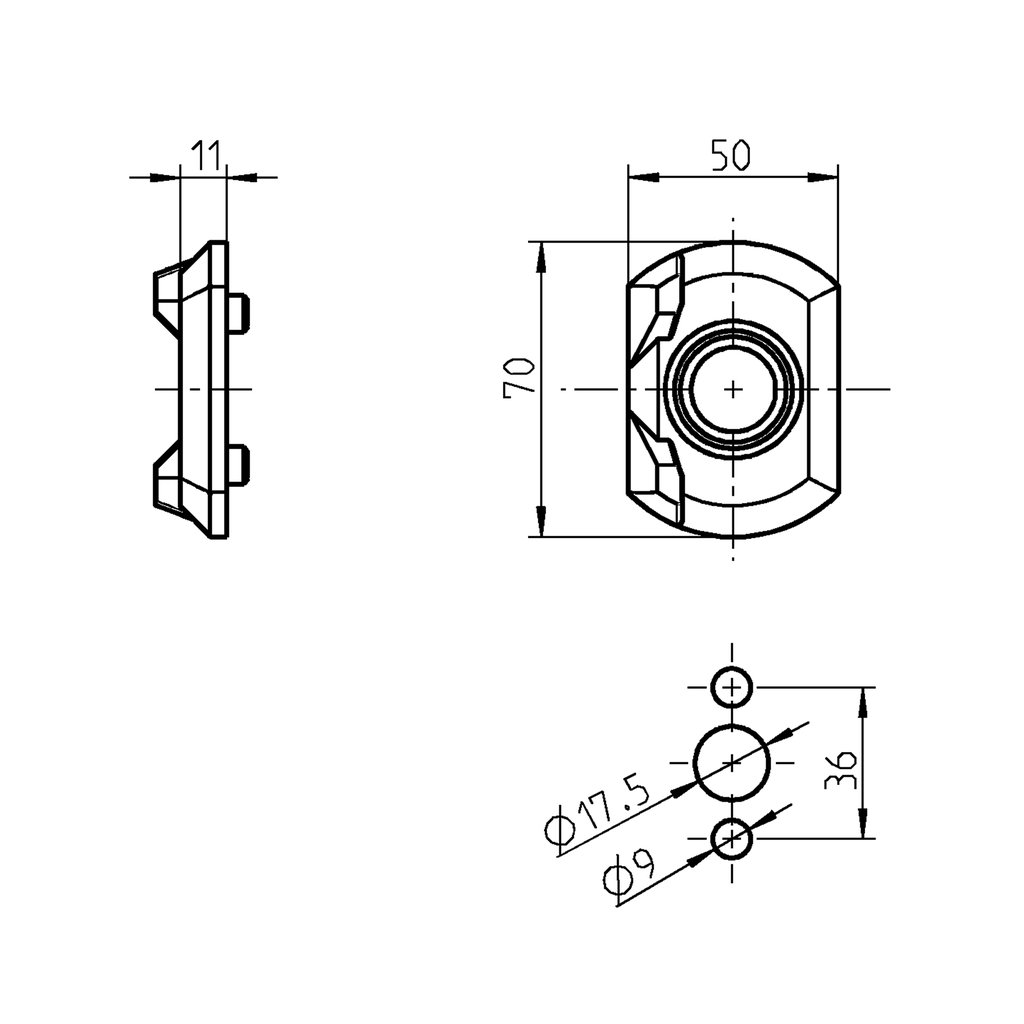

Bezel round Ø 70, width 50 with 180° stopper and foamed for IP 65
Closure Type:
Heavy duty latch, classic
