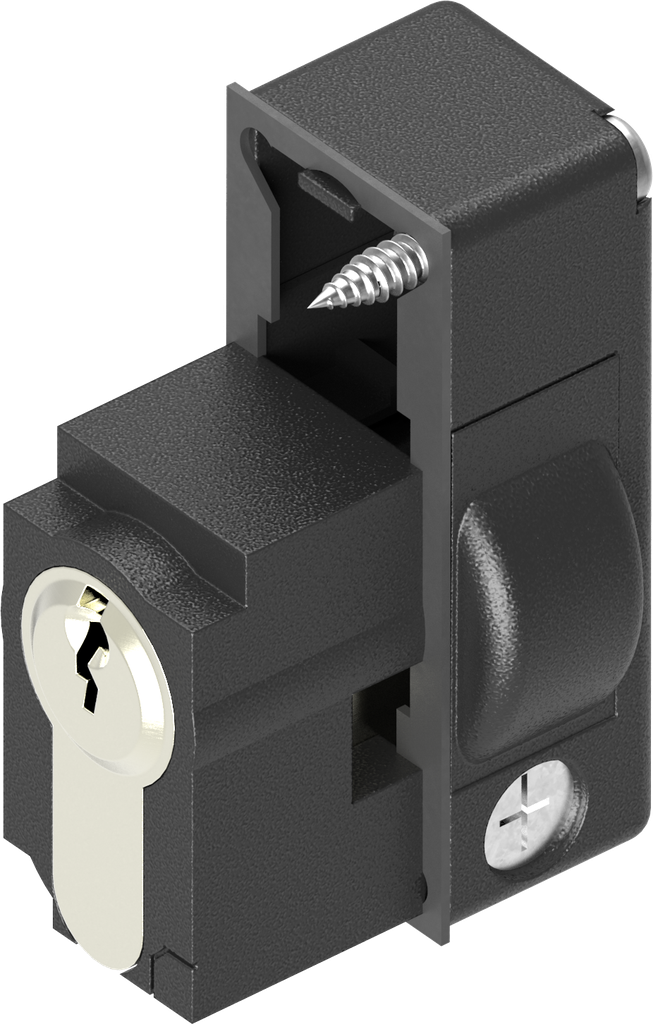

Locking set with profile half cylinder acc. to DIN 18252, keyed different, with 3 keys, Polyamide GF black
Shaft, Steel zinc-plated
Locking set with profile half cylinder acc. to DIN 18252 keyed 110319 with 3 keys, Polyamide GF black; 1089-U6
Akeneo Note:
Also available as key system
Internal Reference:
1089-U6
Product Type:
Locking set
Program:
1089
Catalog sheet:
3XA-120
Material of the module :
Polyamide GF
Surface of the module:
black
Article with property rights:
Yes
Installation Position of Block:
Dish
Cloak:
Yes

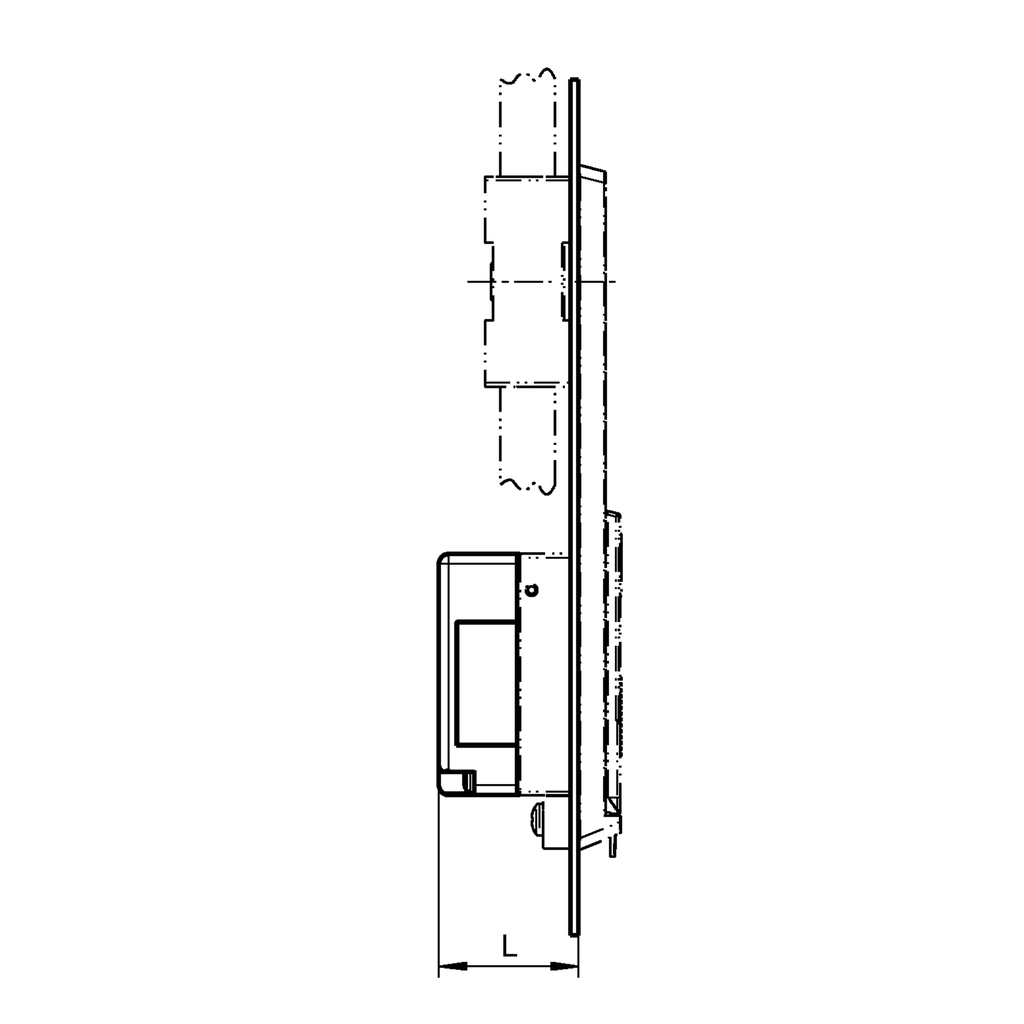

Cap dimension L:
Program 1190 = 29.5,Program 1150 = 42,Program 2400 = 23,Program 1180 = 32,Program 2100 = 36,Program 2600 = 36
Profile Half Cylinder :
Keyed alike 110319 N; A = 30
Locking set:
Profile half cylinder A = 30
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
