180° Hinge, Stainless steel AISI 316
180° Hinge, Stainless steel AISI 316
Slam-lock, Steel zinc-plated
Slam-lock, Steel zinc-plated

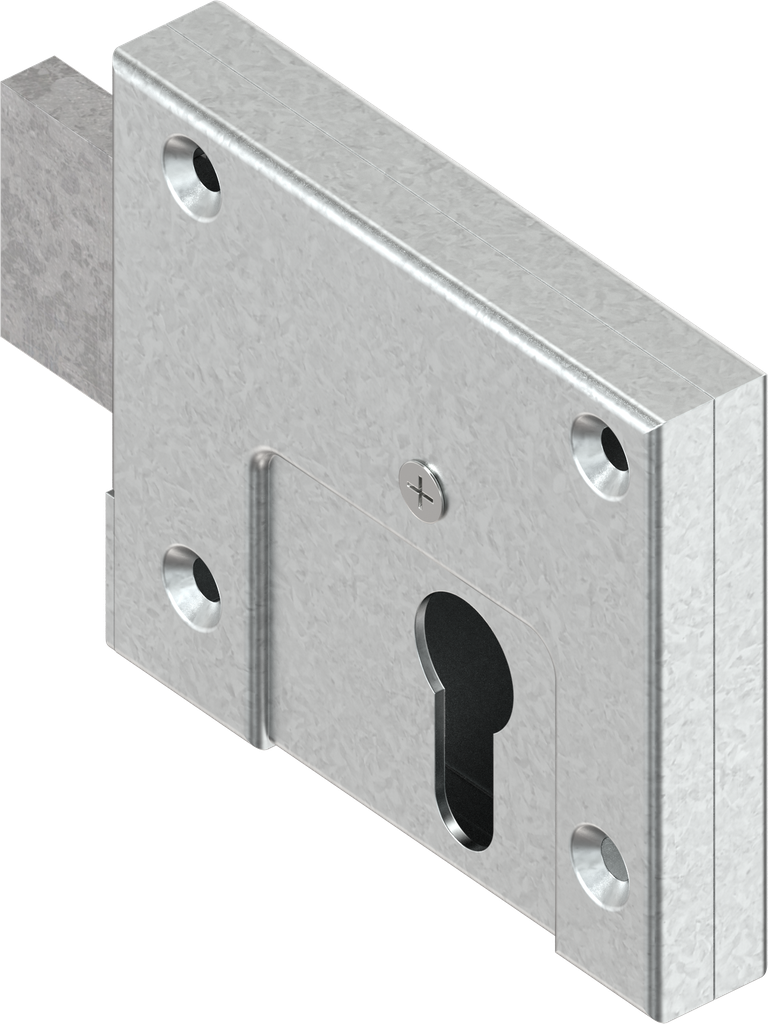

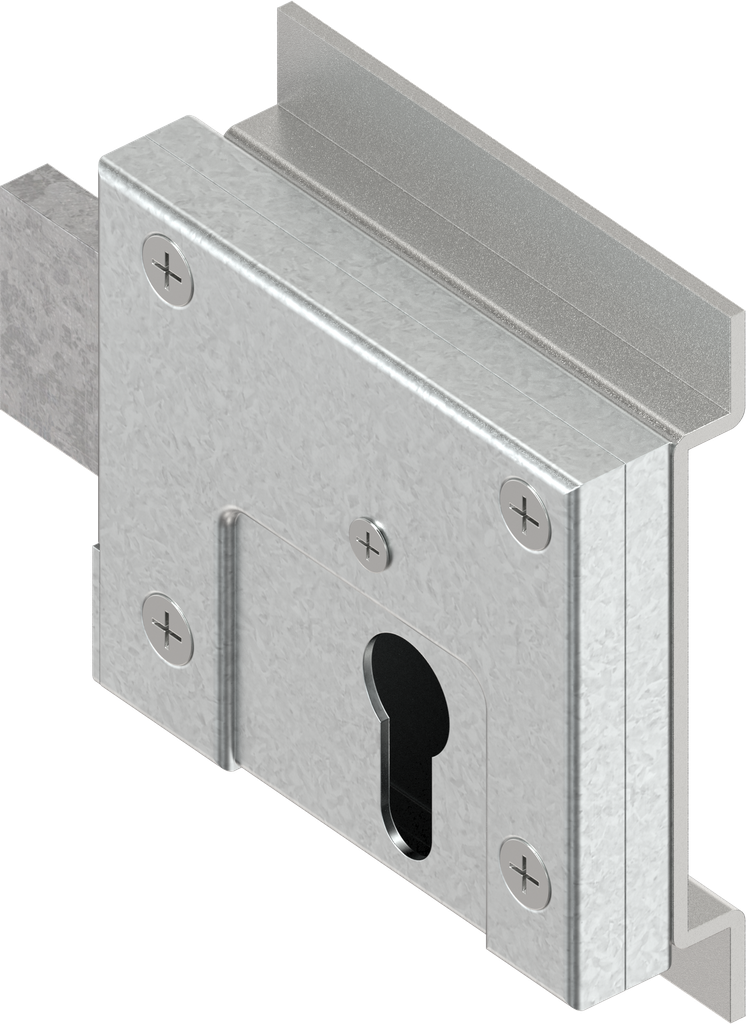

Dead-bolt lock, Steel zinc-plated; 1080-U1

https://20241023-uat.emka.opaas.sh/products/1080-u1 https://20241023-uat.emka.opaas.sh/web/image/product.template/61853/image_1920?unique=d38491b

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1080-U1
    Product Type: Other latch
    Program: 1080
    Catalog sheet: 8A-520
    Material of the module : Steel
    Surface of the module: zinc-plated
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Locking set: Profile half cylinder A = 30,Padlock
    Door Version : Left,Right
    Lock Type: Dead-bolt lock
    No Specifications
    View All Products
    Profile half cylinder
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 8A-520

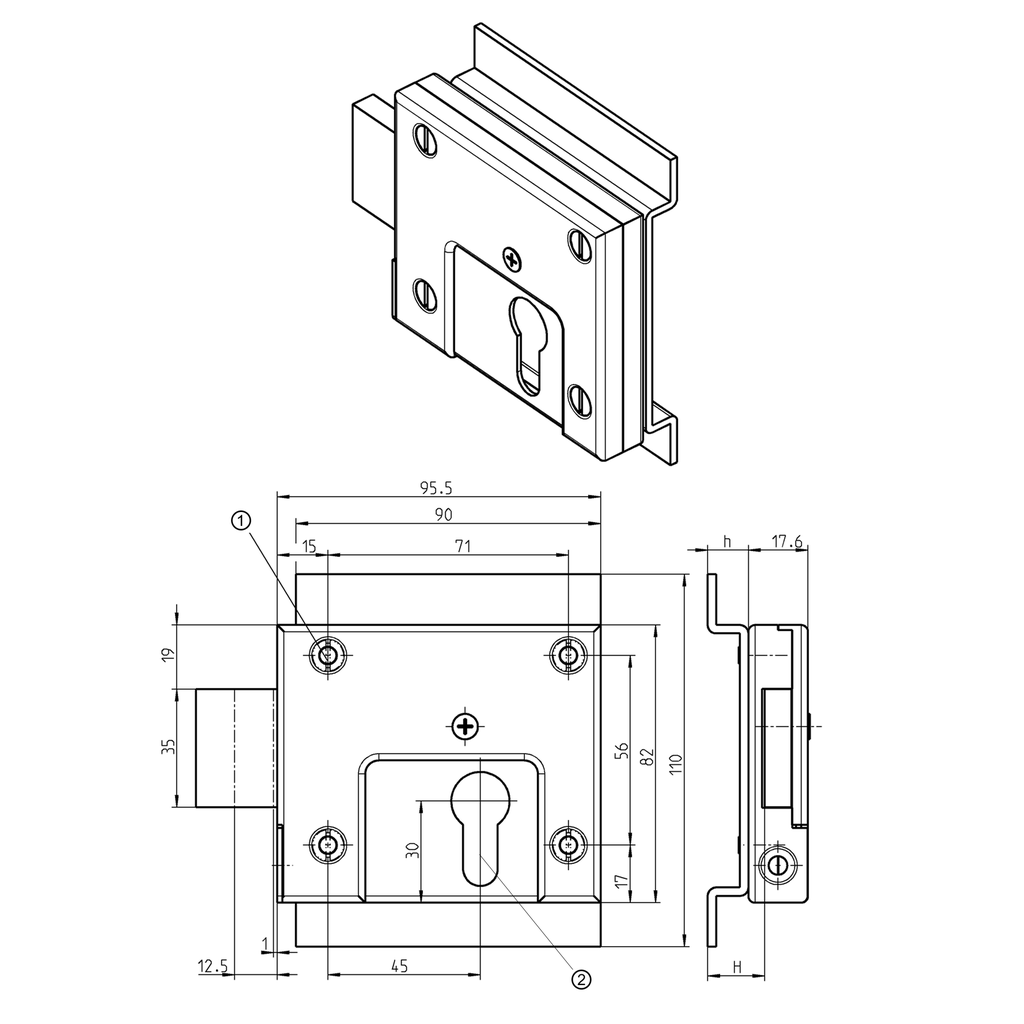

    Product data sheet
    CAD file | 1080-U1_igs
    CAD file | 1080-U1_stp
