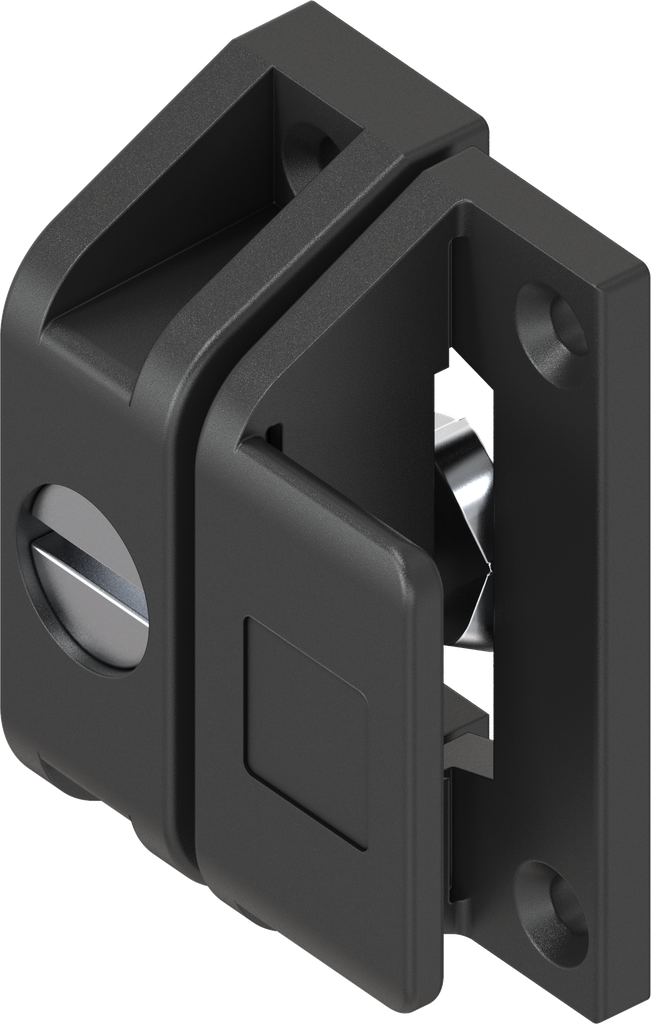

Cam lock with insert slot 2 x 4, Polyamide black; 1076-U12

https://20241023-uat.emka.opaas.sh/products/1076-u12 https://20241023-uat.emka.opaas.sh/web/image/product.template/61837/image_1920?unique=668949c


    This combination does not exist.

    Left Right


    Product information:

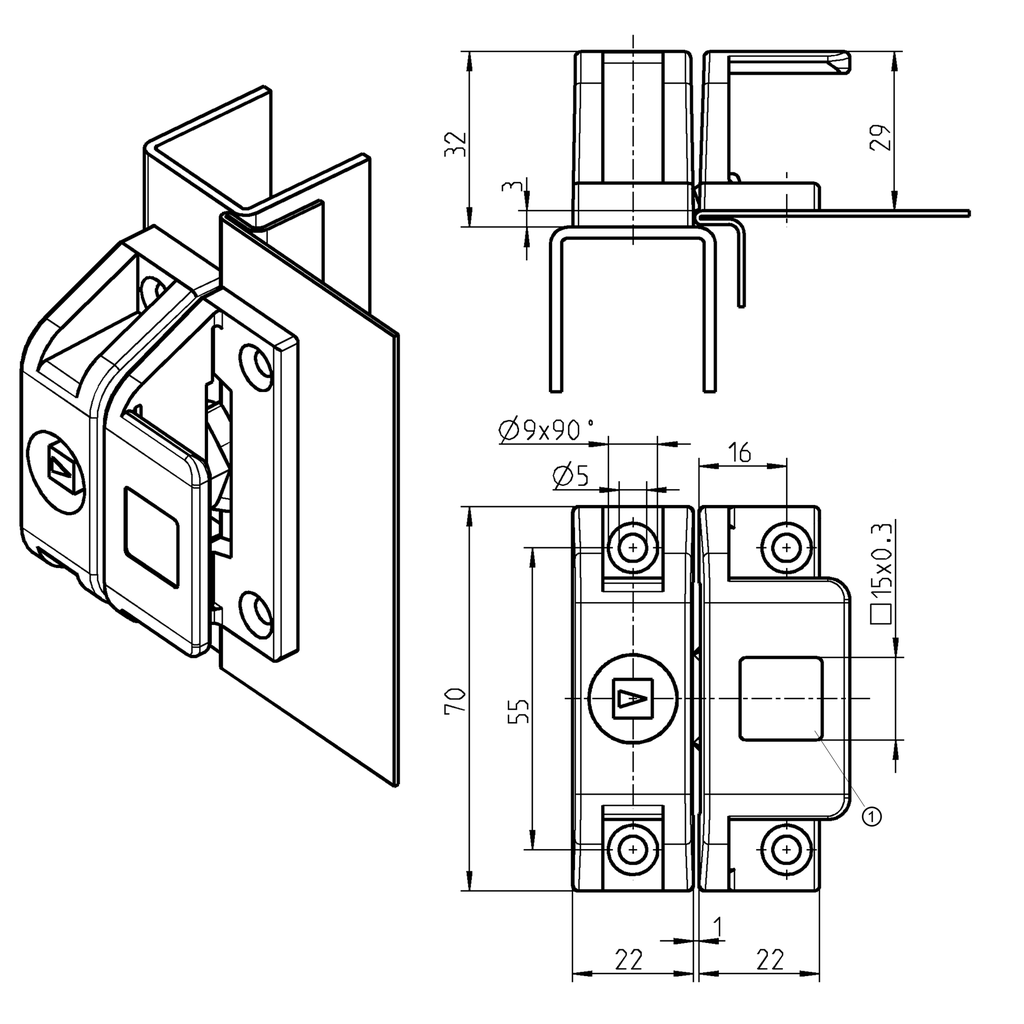

    Logo recess 15 x 15 x 0.3

    Multicolour pad print possible

    Countersink for countersunk screws M4x... acc. to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Internal Reference: 1076-U12
    Product Type: Other latch
    Program: 1076
    Catalog sheet: 8A-240
    Material of the module : Polyamide
    Surface of the module: black
    Fixing type of housing : nut fixing
    Type of actuation: Slot 2 x 4
    Locking set: Insert
    Door Version : Left,Right
    Lock Type: Cam lock
    No Specifications
    View All Products
    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 8A-240
    Product data sheet
    CAD file | 1076-U12_igs
    CAD file | 1076-U12_stp
