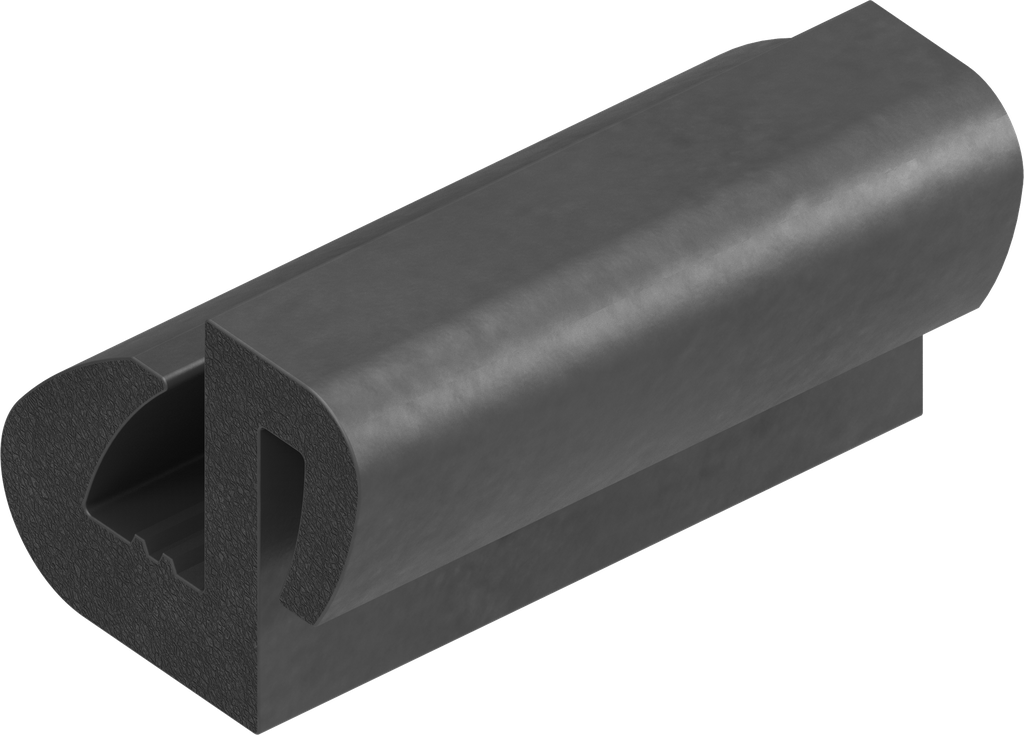

Window rubber profile, NBR 80 ± 5 Shore A black; 1074-04

https://20241023-uat.emka.opaas.sh/products/1074-04 https://20241023-uat.emka.opaas.sh/web/image/product.template/61824/image_1920?unique=5b86266


    This combination does not exist.



    Akeneo Note:

    Bending radius ≥ 40

    Internal Reference: 1074-04
    Product Type: Seal
    Material: NBR 80 ± 5 Shore A
    Program: 1074
    Surface: black

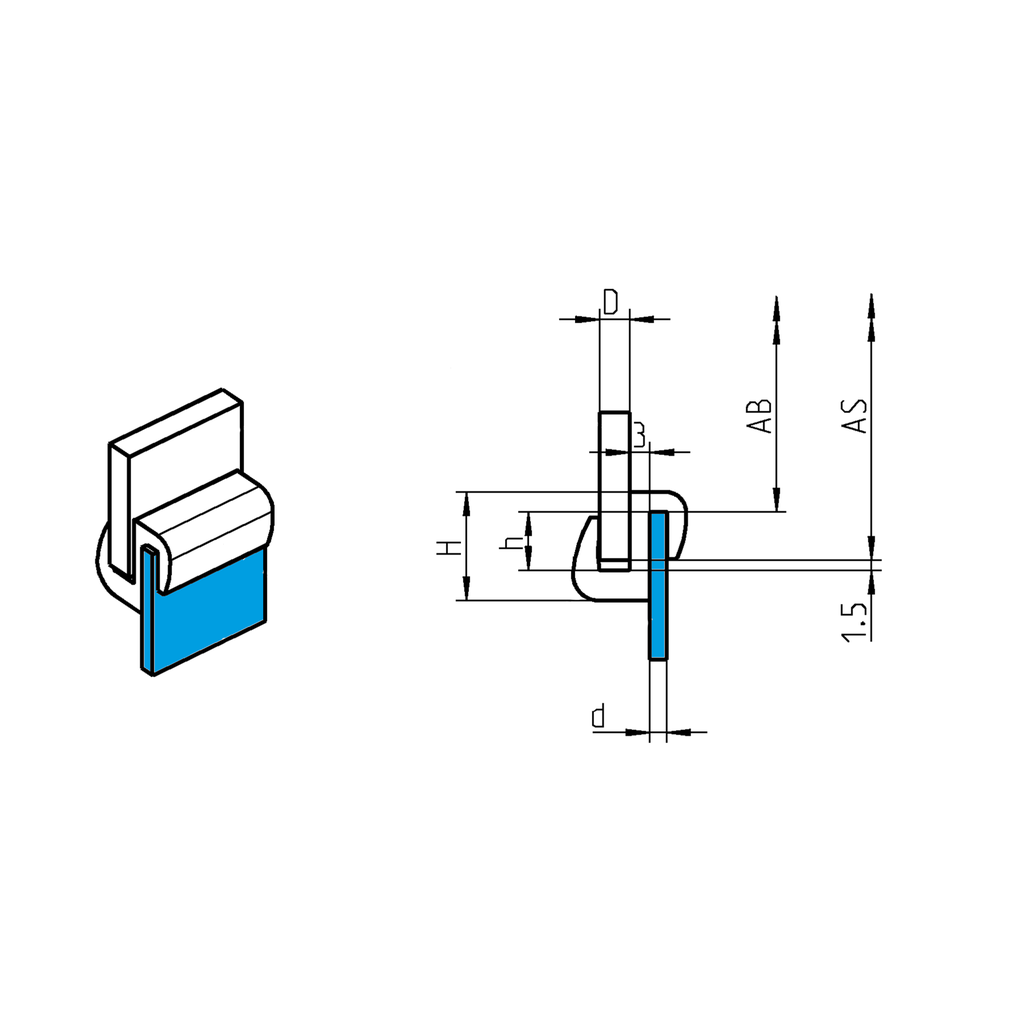

    Dimension d: 2 mm
    Dimension D: 6 mm
    Seal Type: Window rubber profile
    Dimension h: 8.70 mm
    Dimension H: 16.20 mm
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1074-04_igs
    CAD file | 1074-04_stp
