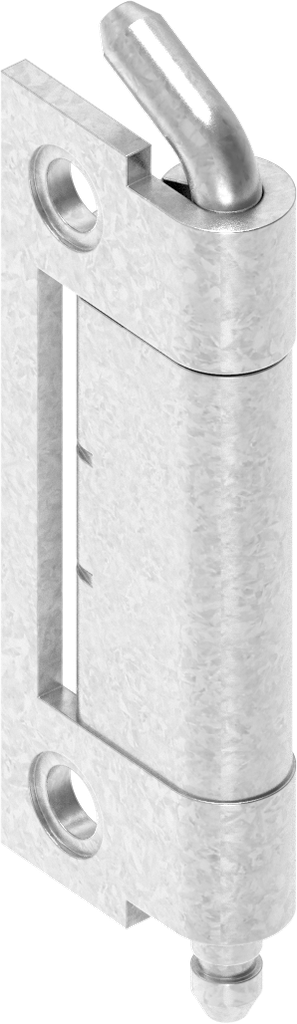

120° Hinge, Steel zinc-plated and raw
135° Hinge, Steel zinc-plated and raw
Internal Reference:
1069-U6
Product Type:
Hinge
Program:
1069
Catalog sheet:
4A-120
Material of the module :
Steel
Surface of the module:
zinc-plated

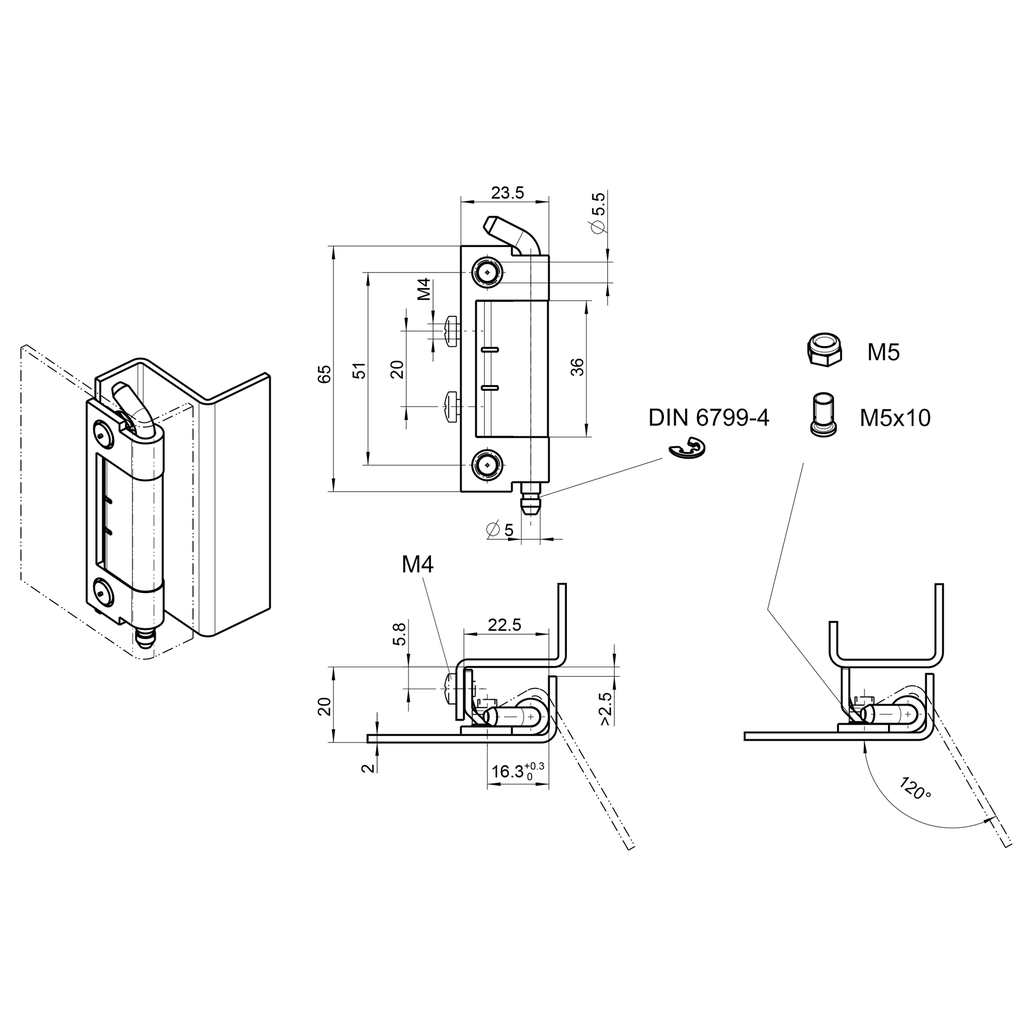

Dimension A, Variable:
20 mm
Detachable:
with tools
Type of attachment to the frame:
screw-on, with weld stud M5 x 10
Type of fastening on the door:
screw-on from inside
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
No Specifications
