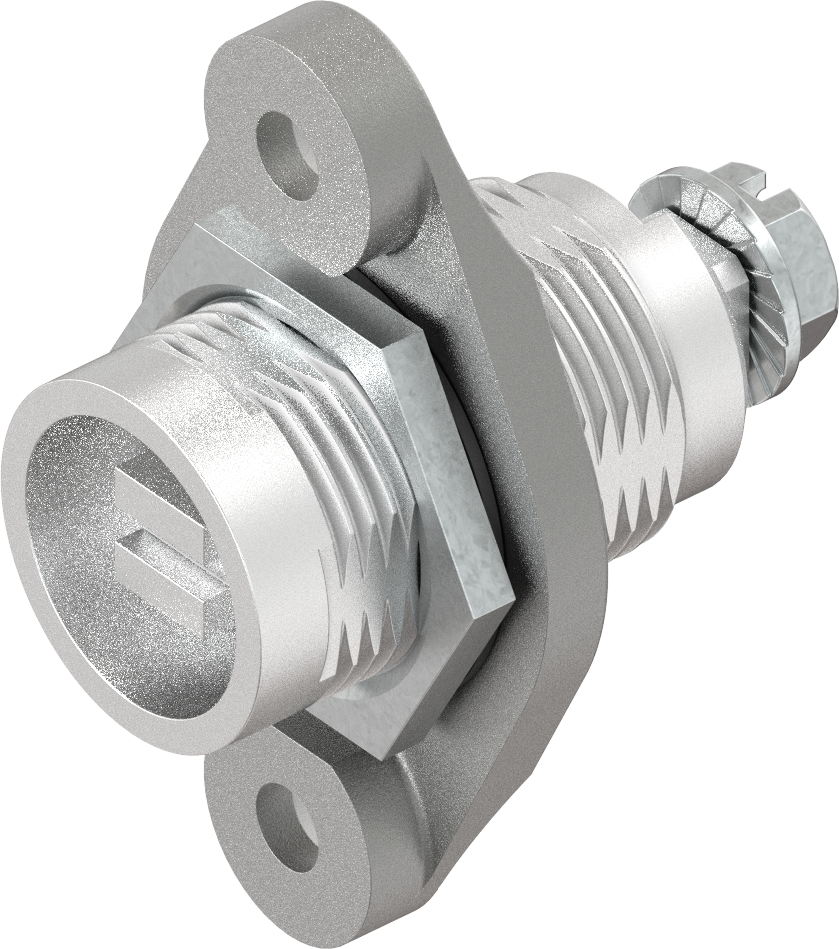

Quarter turn for flush mounting square 8 with slot, Zinc die chrome-plated; 1057-U3-01

https://20241023-uat.emka.opaas.sh/products/1057-u3-01 https://20241023-uat.emka.opaas.sh/web/image/product.template/75453/image_1920?unique=89d1666

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1057-U3-01
    Product Type: Quarter turn
    Program: 1057
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Type of actuation: Square 8 with slot
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    GH Mass: 36 mm
    Suitable for door thickness from: 5 mm
    Suitable for door thicknesses up to: 21 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Assembly
    Rod control
    Quarter turn accessories
    Keys
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1057-U3-01_igs
    CAD file | 1057-U3-01_stp
