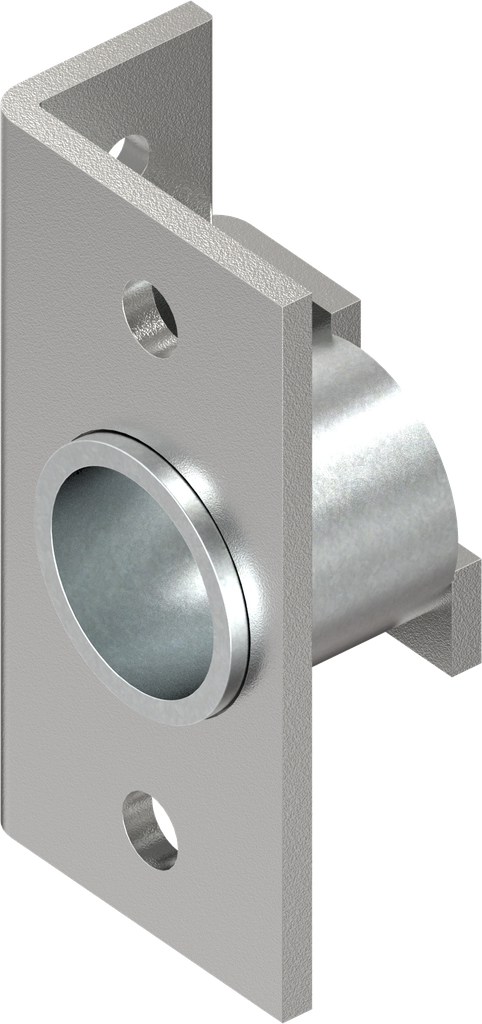

Housing with bush, Zinc die and steel raw
Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
Internal Reference:
1057-U2
Product Type:
Housing
Program:
1057
Catalog sheet:
1B-820
Material of the module :
Zinc die and steel
Surface of the module:
raw
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing,weld-on
Mounting Positions :
Inside the sealing
Housing Head Shape:
Special form
GH Mass:
20 mm
Suitable for door thicknesses up to:
1.50 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
