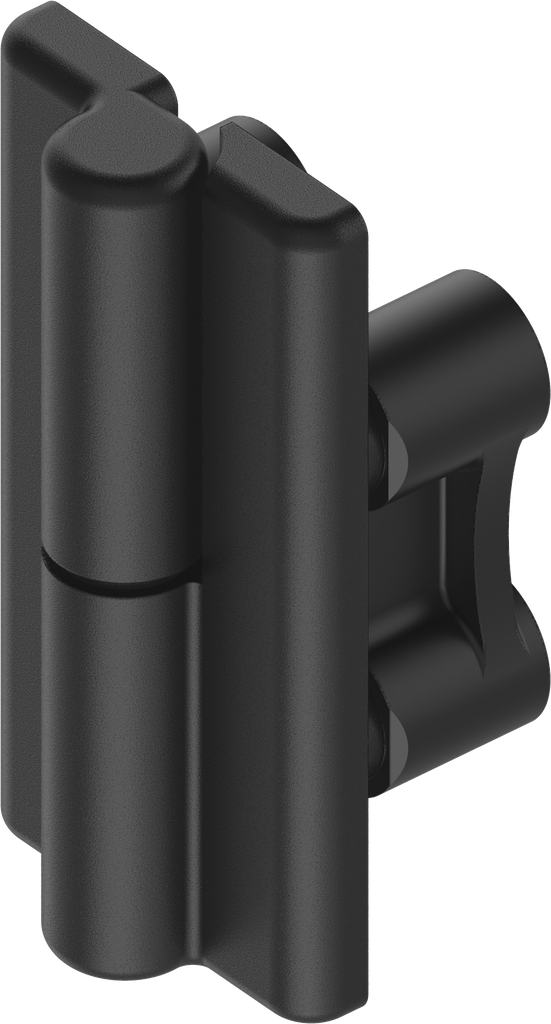

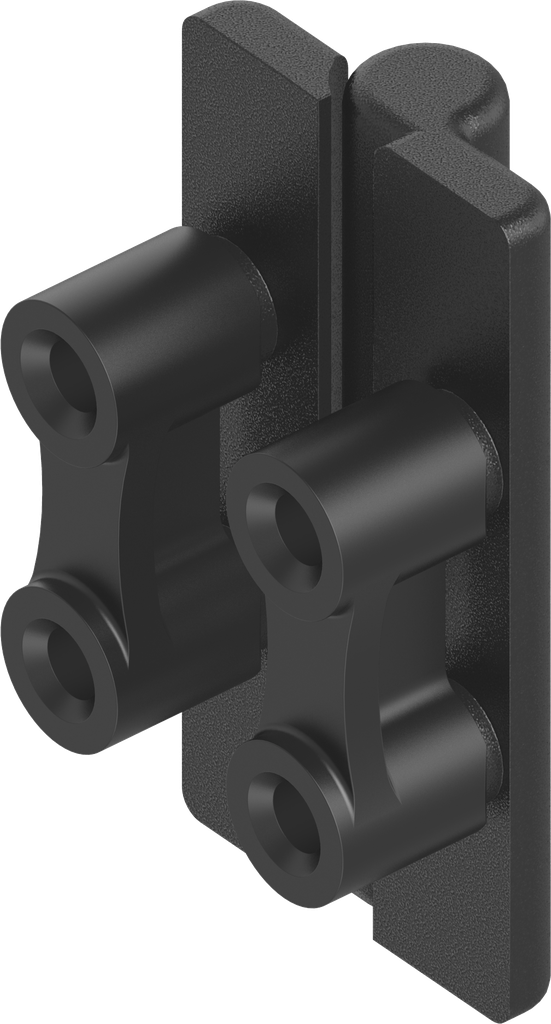

180° Hinge with fastening bow, right version, Zinc die black powder-coated; 1056-U44

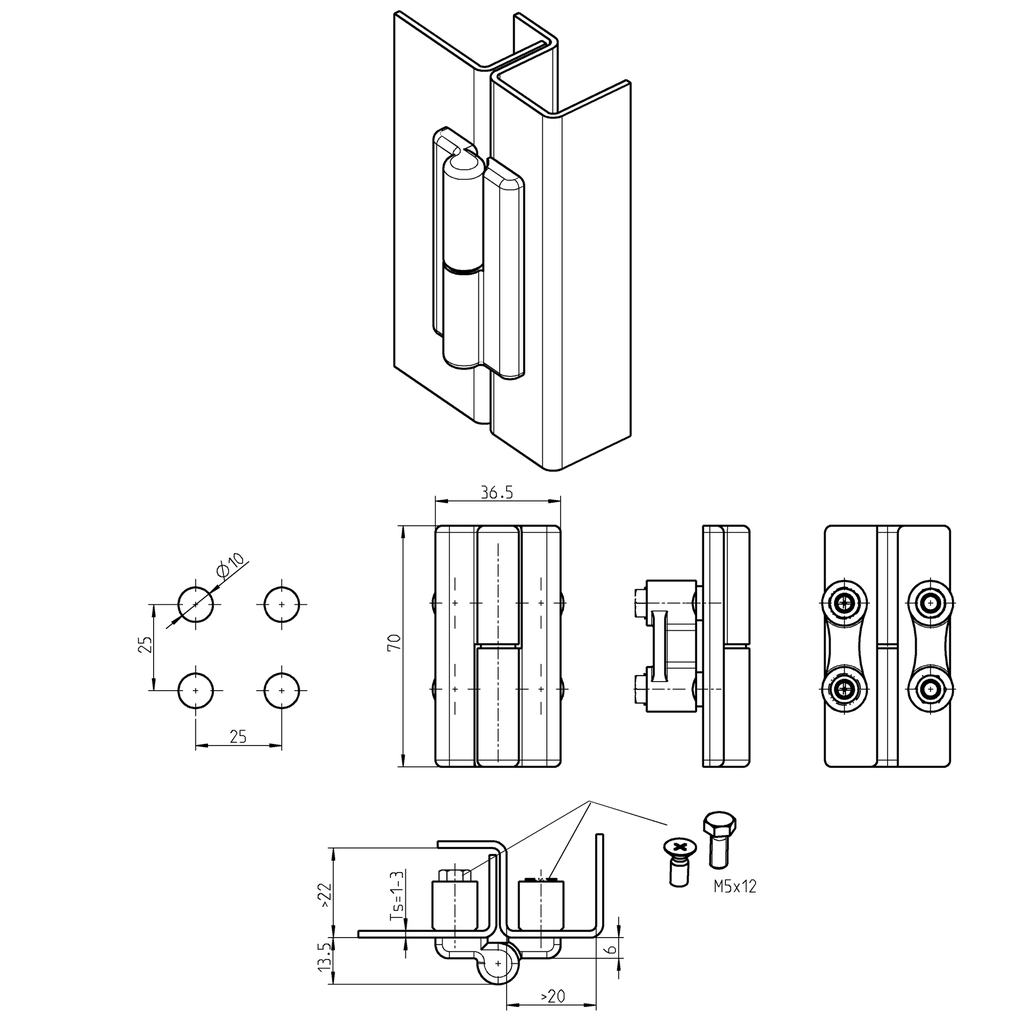

Dimension 36.5 x 70 mm
Internal Reference:
1056-U44
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-240
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
concealed
Door Version :
Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
