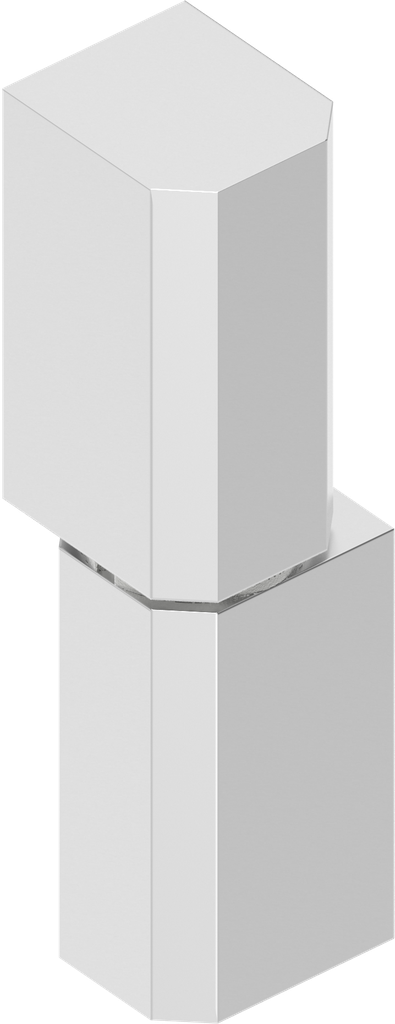

180° Hinge, Stainless steel AISI 316 polished; 1056-U34-PH

https://20241023-uat.emka.opaas.sh/products/1056-u34-ph https://20241023-uat.emka.opaas.sh/web/image/product.template/61735/image_1920?unique=e15f353

    This combination does not exist.

    Single cabinets Left Right
    Contact Us
    Internal Reference: 1056-U34-PH
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4A-285
    Material of the module : Stainless steel AISI 316
    Surface of the module: polished
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max. opening angle due to installation: Yes
    Max Opening Angle: 180°
    Cabinet type : Single cabinets
    Door position: prominent
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4A-285
    Product data sheet
    CAD file | 1056-U34-PH_igs
    CAD file | 1056-U34-PH_stp
