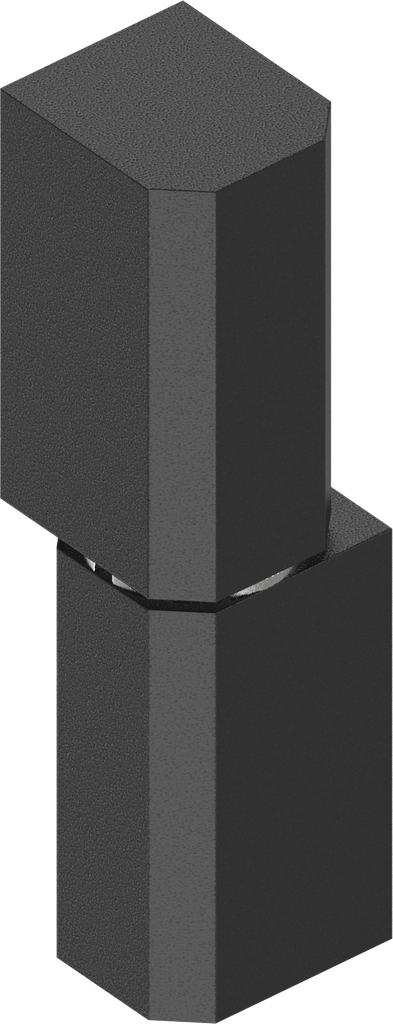

180° Hinge with clamping pin, left version, Zinc die black powder-coated
180° Hinge, Stainless steel AISI 316 polished
Internal Reference:
1056-U34
Product Type:
Hinge
Program:
1056
Catalog sheet:
4A-285
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Max Opening Angle:
180°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
