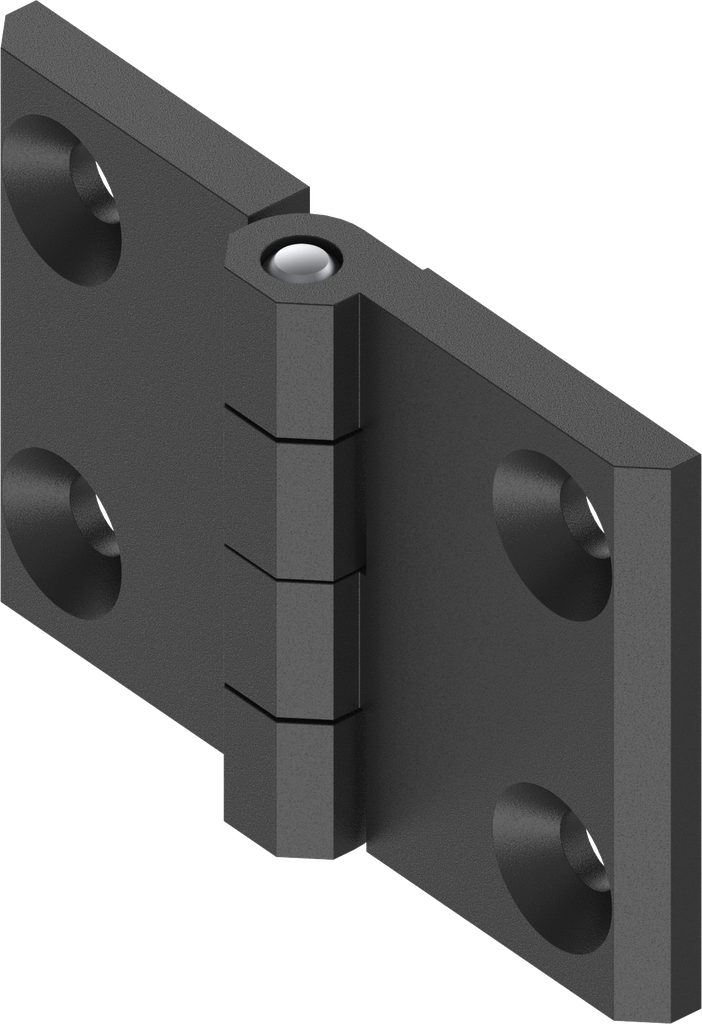

270° Hinge, Zinc die black powder-coated; 1056-U18

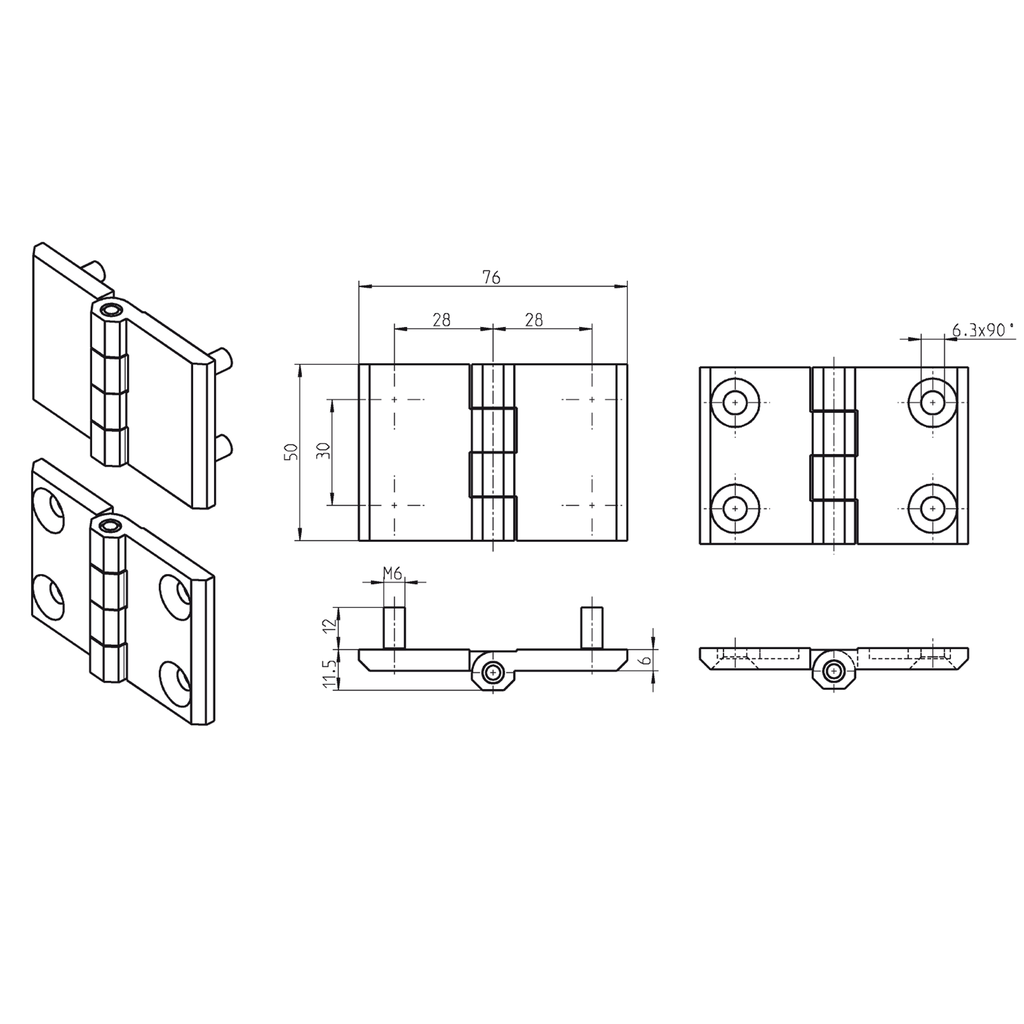

Dimension 76 x 50 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1056-U18
Barcode:
1056-U00018-0000000
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-200
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
270°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
