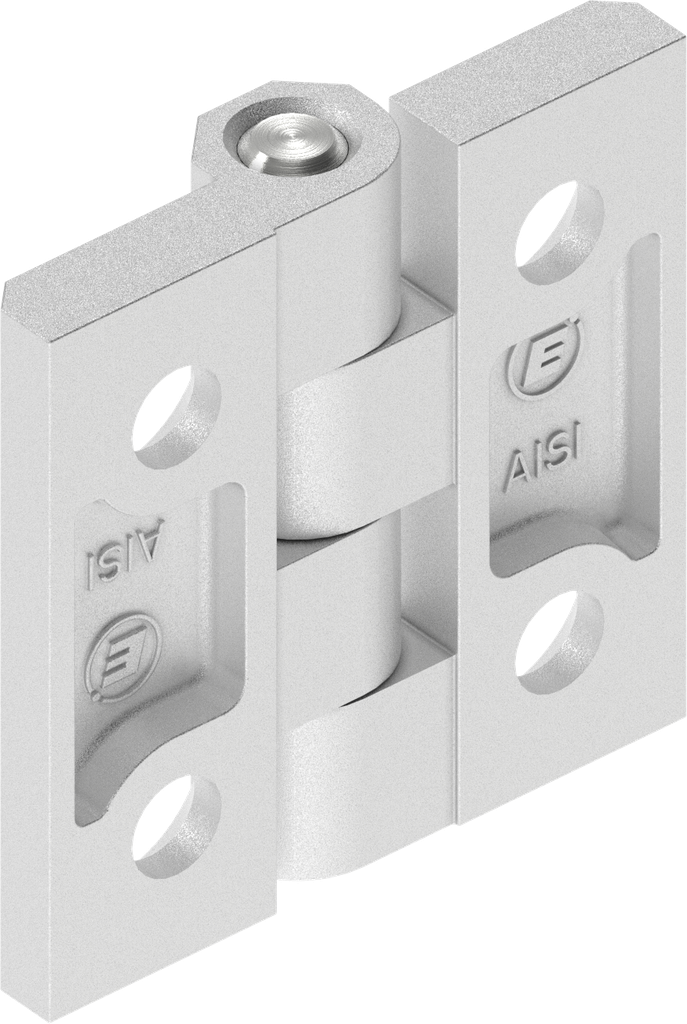

180° Hinge, Stainless steel AISI 316 pickled and passivated P.2756BIP
180° Hinge, Stainless steel AISI 316 pickled and passivated P.2757pasivizirana

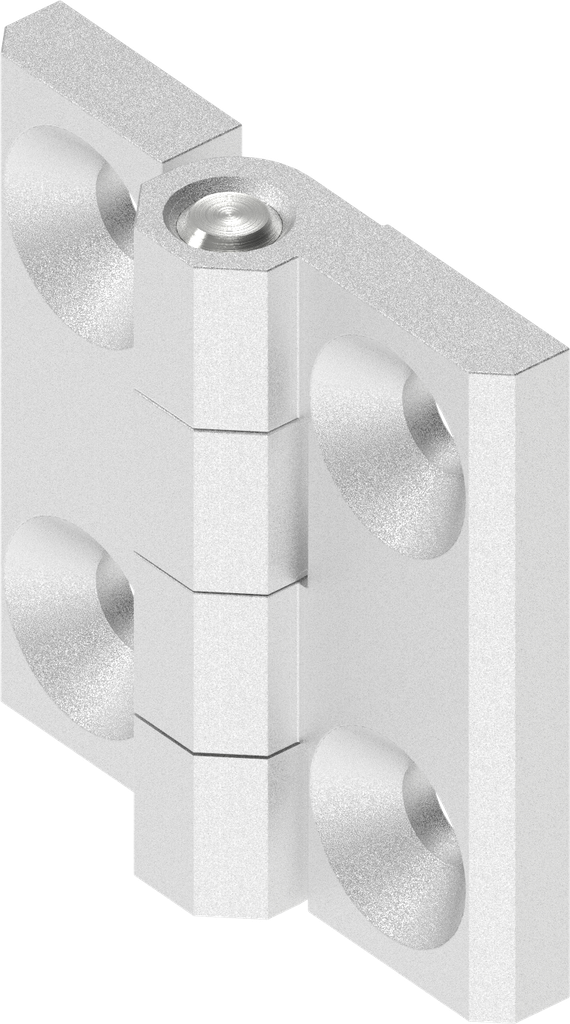

180° Hinge, Stainless steel AISI 316 bright polished; 1056-U13-PPPH

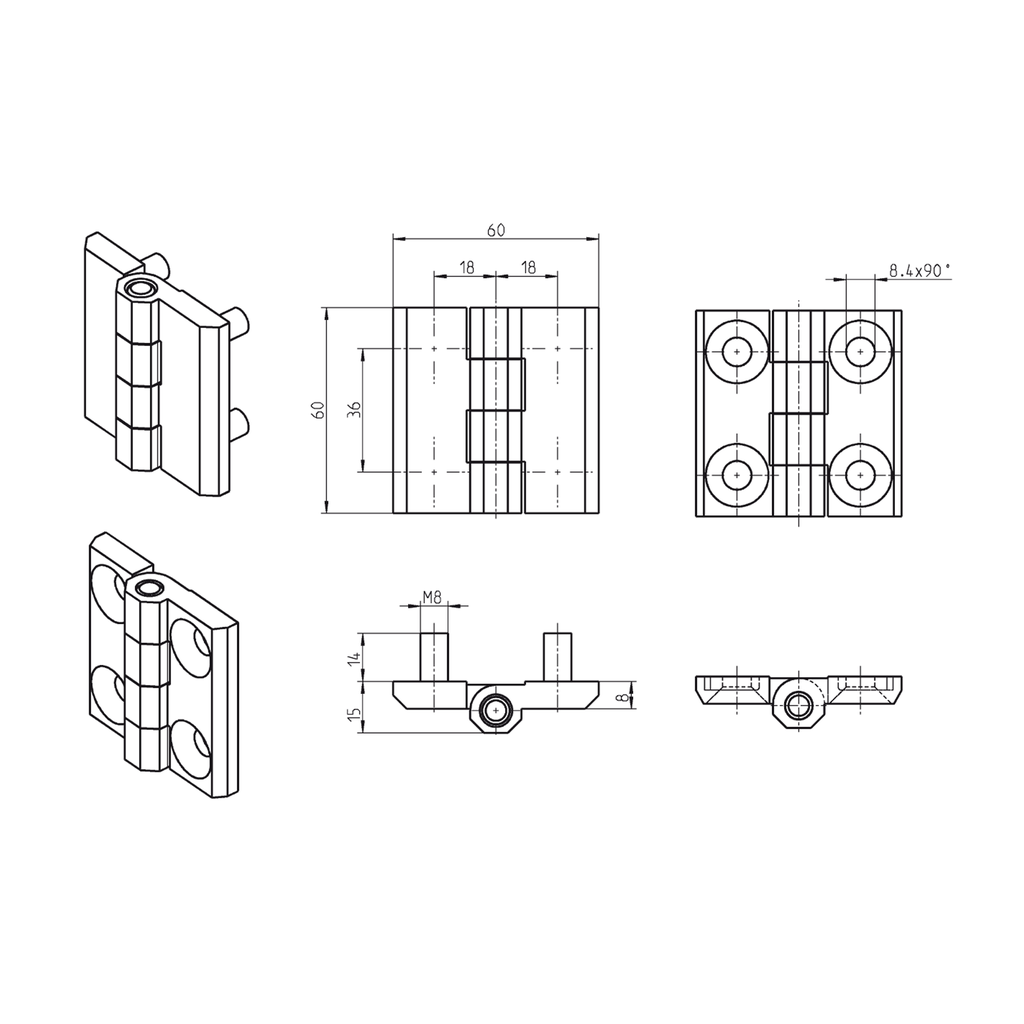

Dimension 60 x 60 mm
100% original guarantee
Return within 30days
Free delivery on all orders
Internal Reference:
1056-U13-PPPH
Barcode:
1056-u00013-000PPPH
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-205
Material of the module :
Stainless steel AISI 316
Surface of the module:
bright polished
Door return variable:
Yes
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M8x...
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
