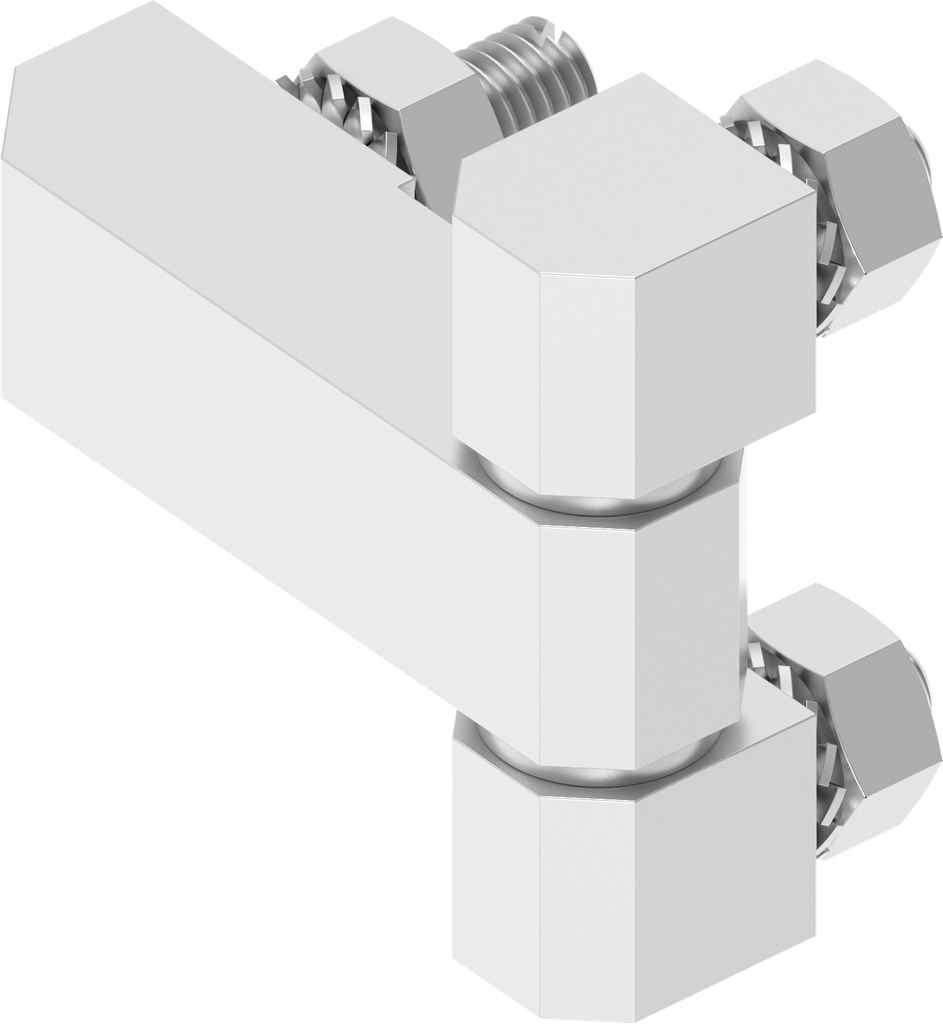

180° Hinge, Stainless steel AISI 303
180° Hinge, Stainless steel AISI 316
Internal Reference:
1055-U7
Product Type:
Hinge
Program:
1055
Catalog sheet:
4B-160
Material of the module :
Stainless steel AISI 303

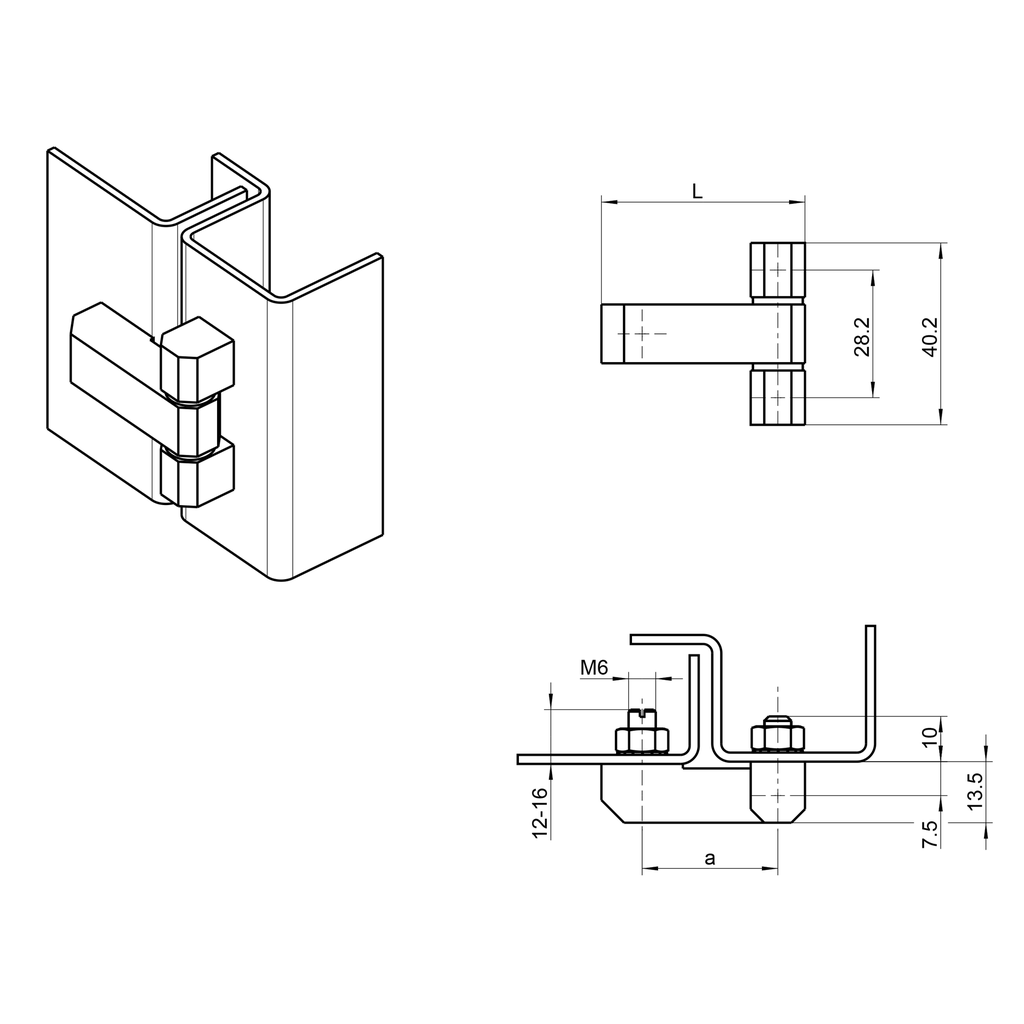

Dimension a:
30 mm
Door return variable:
Yes
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Dimension L:
45 mm
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
