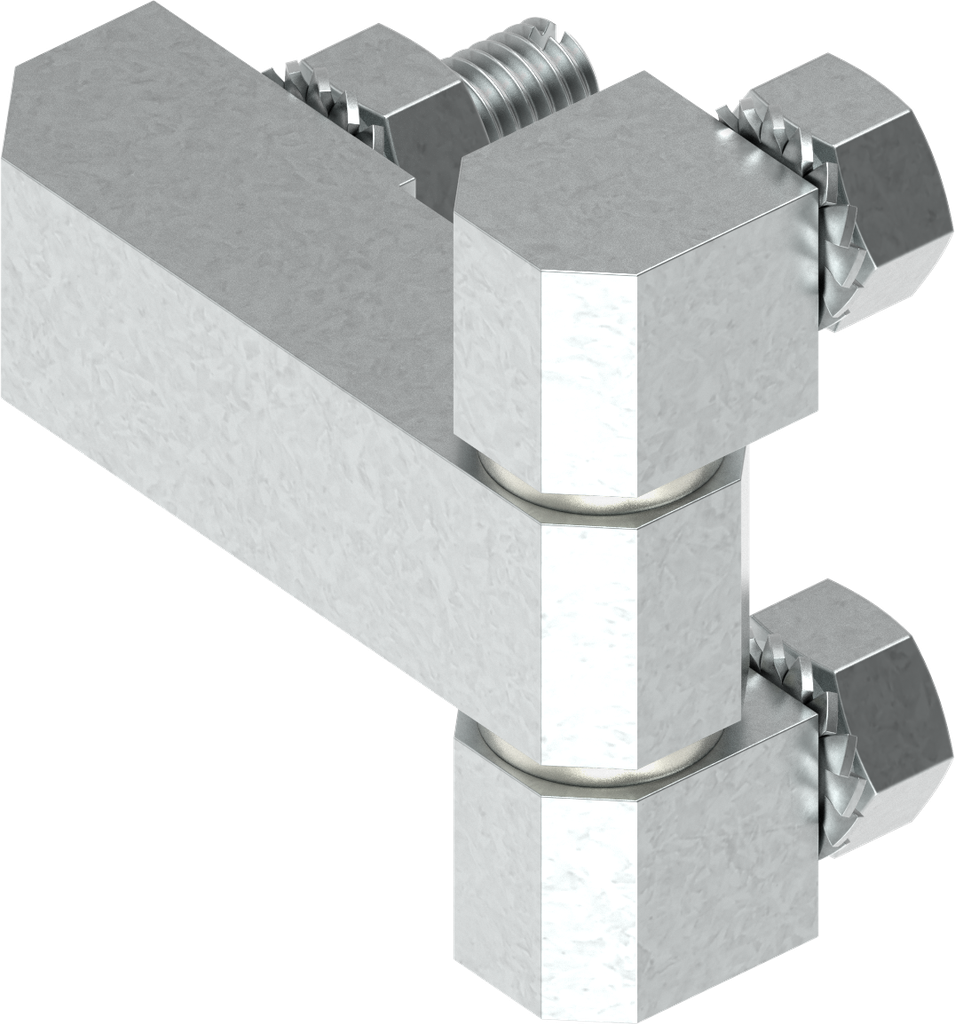

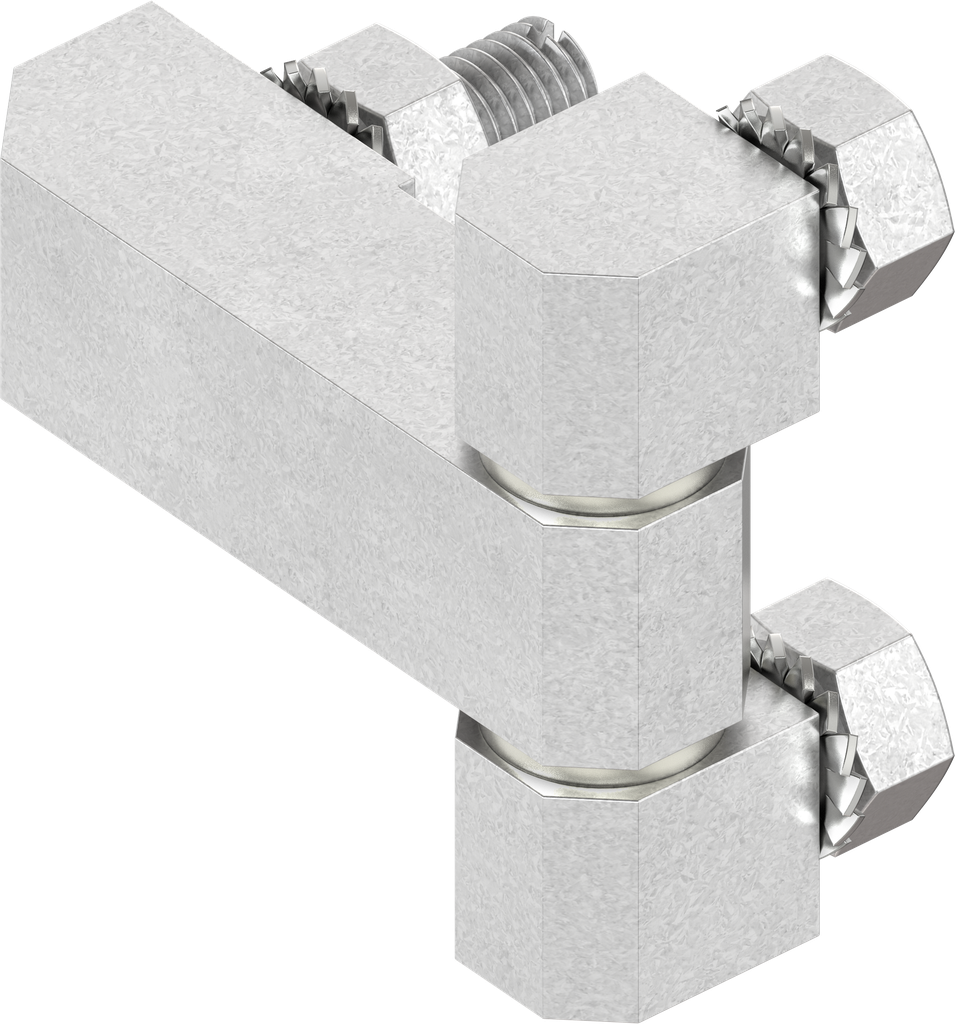

180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
Internal Reference:
1055-U3
Product Type:
Hinge
Program:
1055
Catalog sheet:
4B-160
Material of the module :
Steel
Surface of the module:
zinc-plated

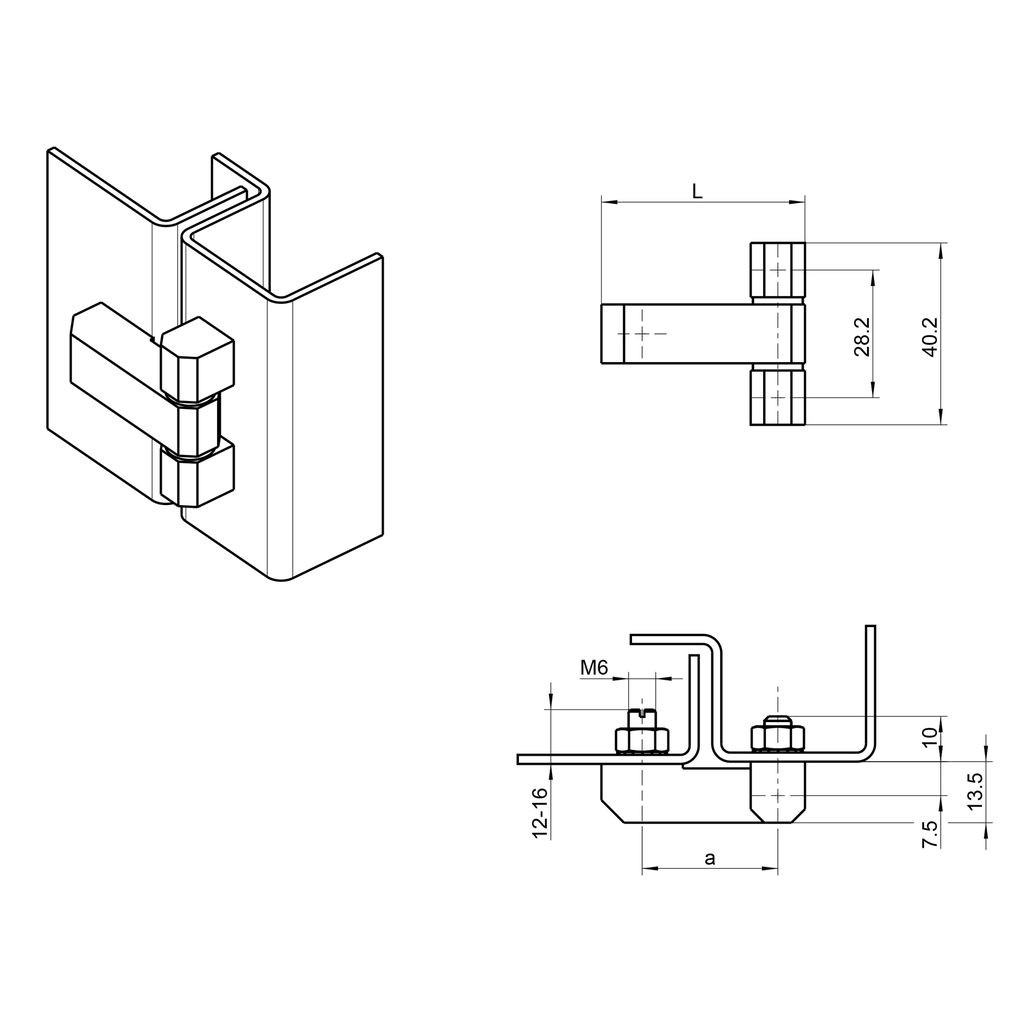

Dimension a:
30 mm
Door return variable:
Yes
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Dimension L:
45 mm
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°

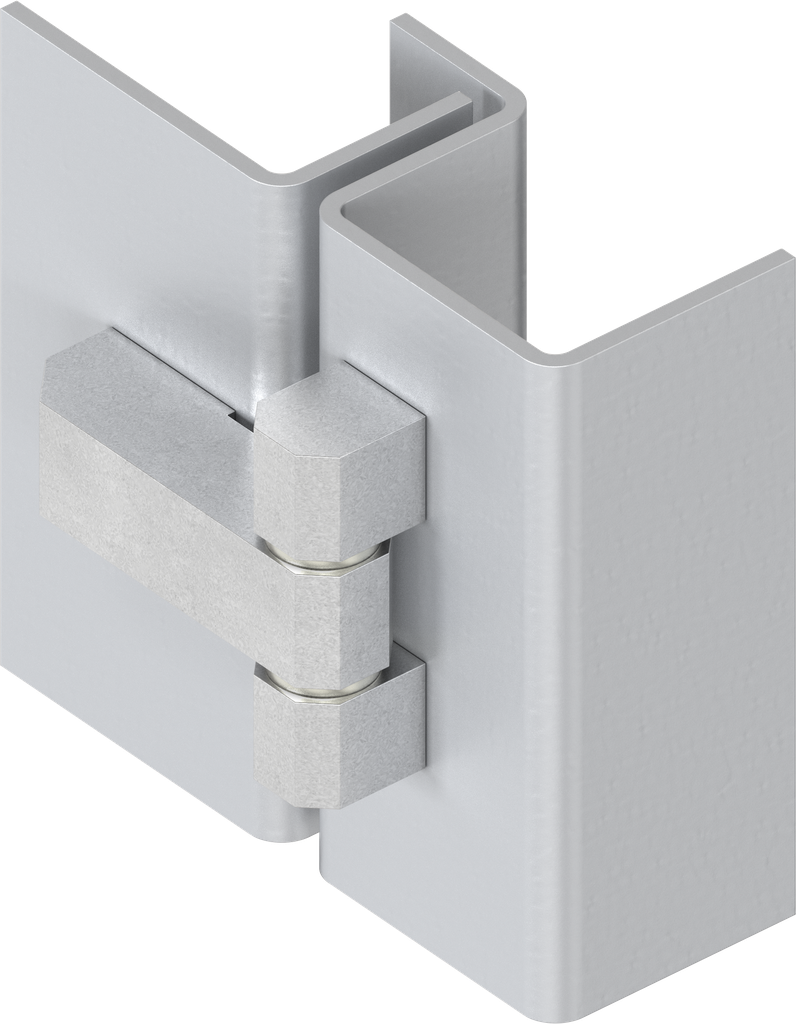

Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
