180° 2D Hinge, Zinc die black powder-coated

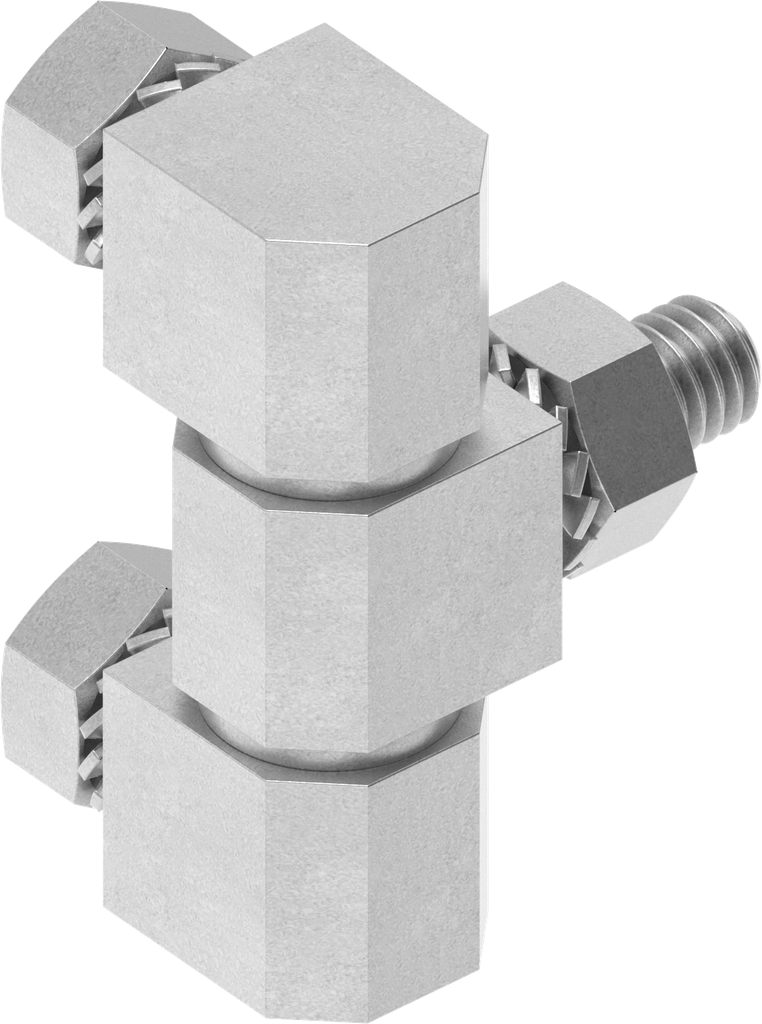

180° Hinge, Steel zinc-plated
Internal Reference:
1055-U2
Product Type:
Hinge
Program:
1055
Catalog sheet:
4A-250
Material of the module :
Steel
Surface of the module:
zinc-plated
Door return variable:
Yes
Execution:
three-piece
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Max Opening Angle:
180°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
No Matching Products

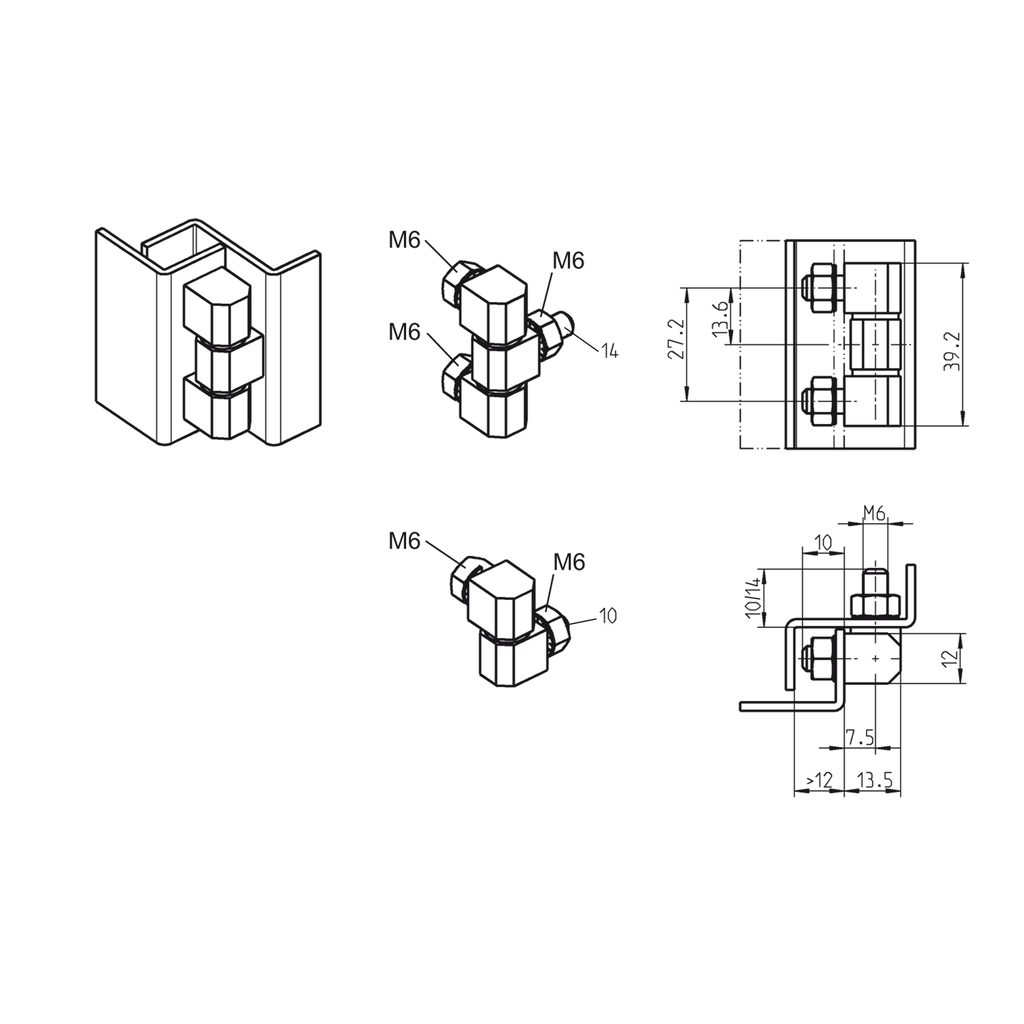

Here you can find the product data sheets and CAD files of this product
