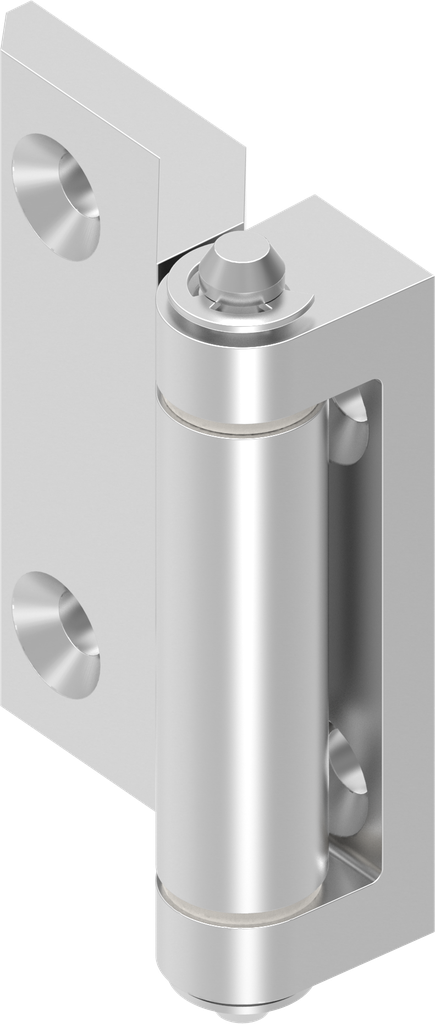

180° Hinge, Stainless steel AISI 316; 1054-U5-PH

https://20241023-uat.emka.opaas.sh/products/1054-u5-ph https://20241023-uat.emka.opaas.sh/web/image/product.template/61545/image_1920?unique=7bb16af

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us
    Internal Reference: 1054-U5-PH
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-280
    Material of the module : Stainless steel AISI 316
    Door return variable: Yes

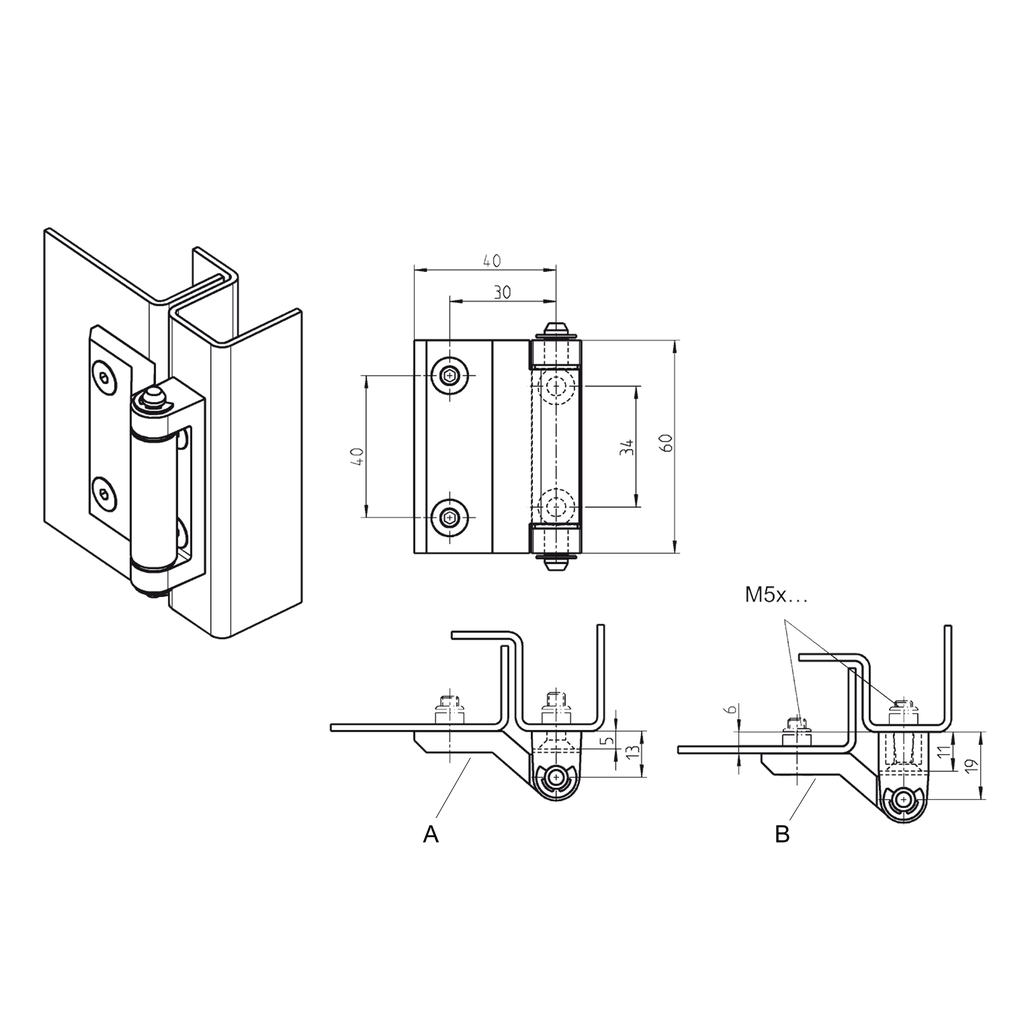

    Execution: A
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4B-280
    Product data sheet
    CAD file | 1054-U5-PH_igs
    CAD file | 1054-U5-PH_stp
