Round rod L = 1000 mm, Stainless steel AISI 304
Round rod L = 1000 mm, Stainless steel AISI 304
Rod control, right version, for round rods stroke 18, Steel zinc-plated
Rod control, right version, for round rods stroke 18, Steel zinc-plated

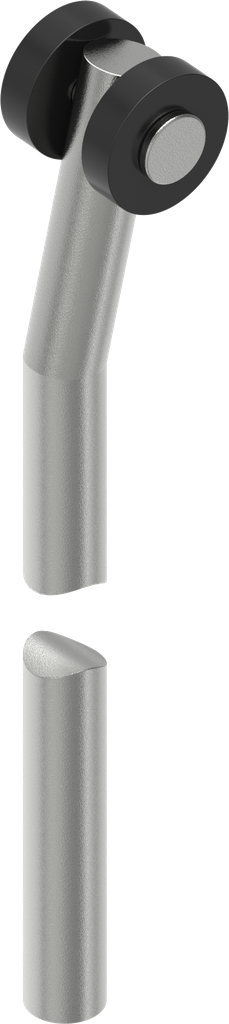

Round rod L = 1100 mm, Stainless steel AISI 304; 1049-U17

https://20241023-uat.emka.opaas.sh/products/1049-u17 https://20241023-uat.emka.opaas.sh/web/image/product.template/61454/image_1920?unique=a775c17

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1049-U17
    Product Type: Rod
    Program: 1049
    Catalog sheet: 3ZB-120
    Material of the module : Stainless steel AISI 304
    Connecting rod position: Inside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 3 point
    Mounting Positions : Inside the sealing

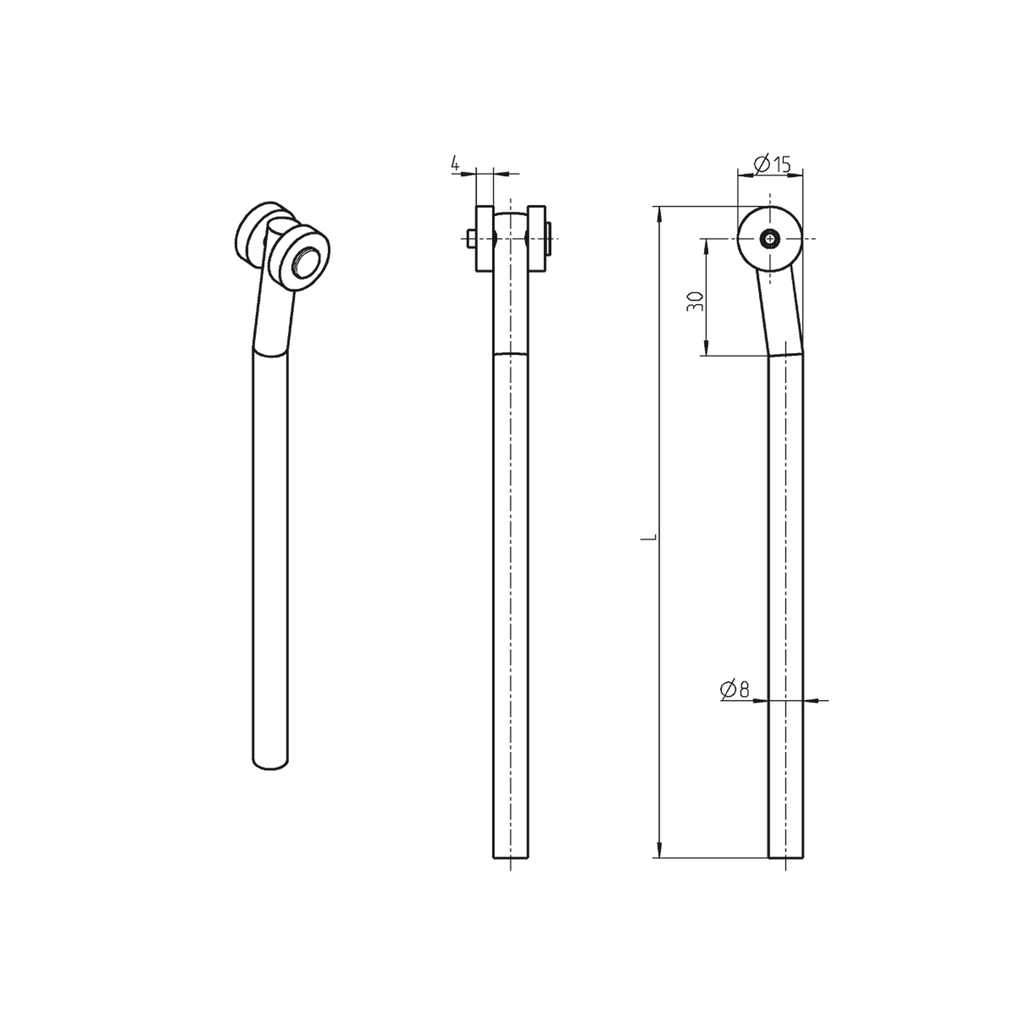

    Length(L-dimension): 1100 mm
    Round bar inside the seal: Round rod with roller and butt
    No Specifications
    View All Products
    Adapter for round rod

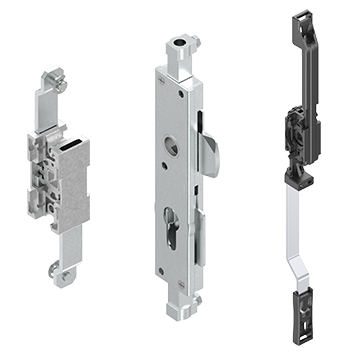

    Rod control

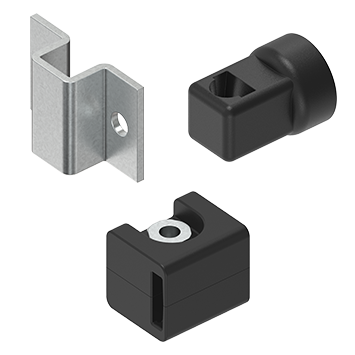

    Rod guide
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-620
    Product data sheet
    CAD file | 1049-U17_igs
    CAD file | 1049-U17_stp
