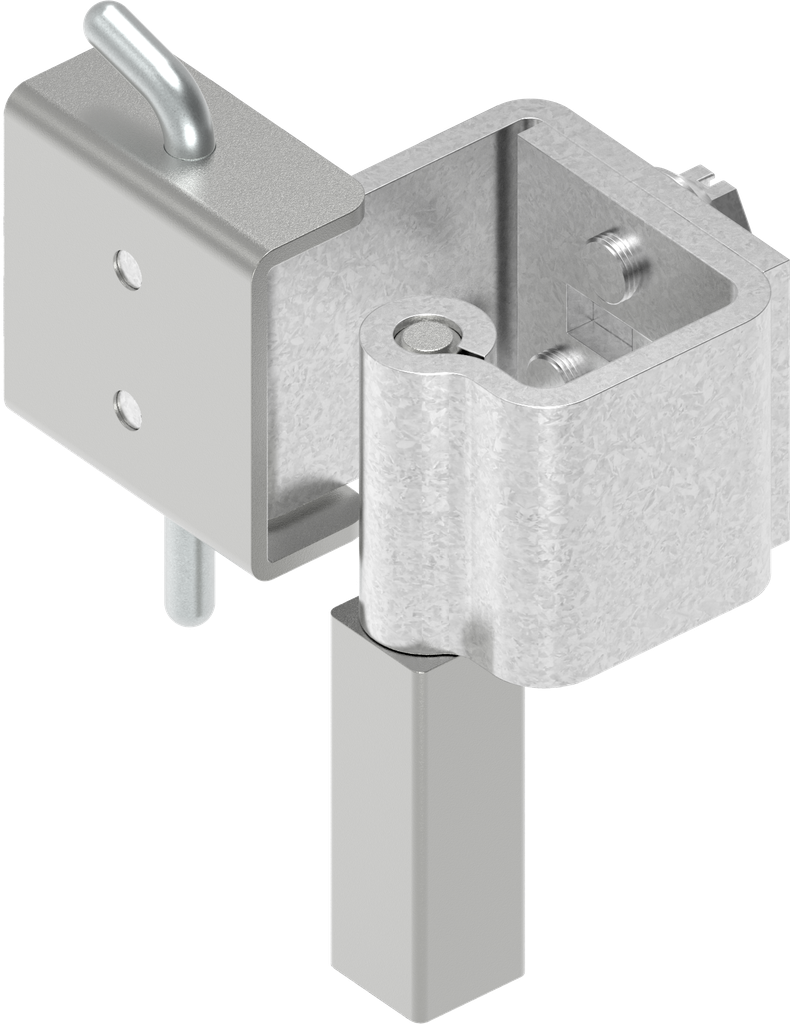

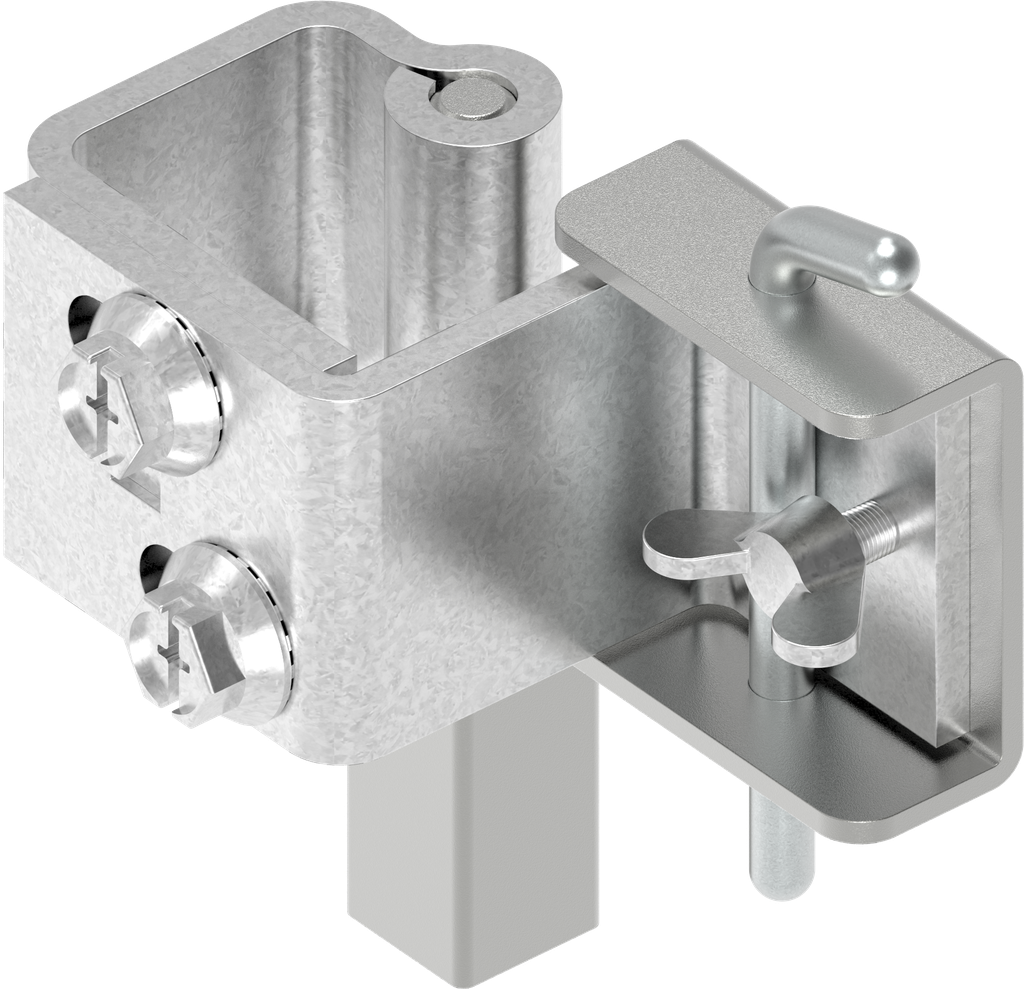

90° Concealed hinge, Steel zinc-plated and raw; 1046-U4
Connecting part and frame part m.s. raw for welding on
Internal Reference:
1046-U4
Product Type:
Hinge
Program:
1046
Catalog sheet:
4B-130
Material of the module :
Steel
Surface of the module:
zinc-plated and raw
Dimension A, Variable:
up to 26 mm
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
weld-on
Max Opening Angle:
90°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Cannot be disassembled from the outside:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
