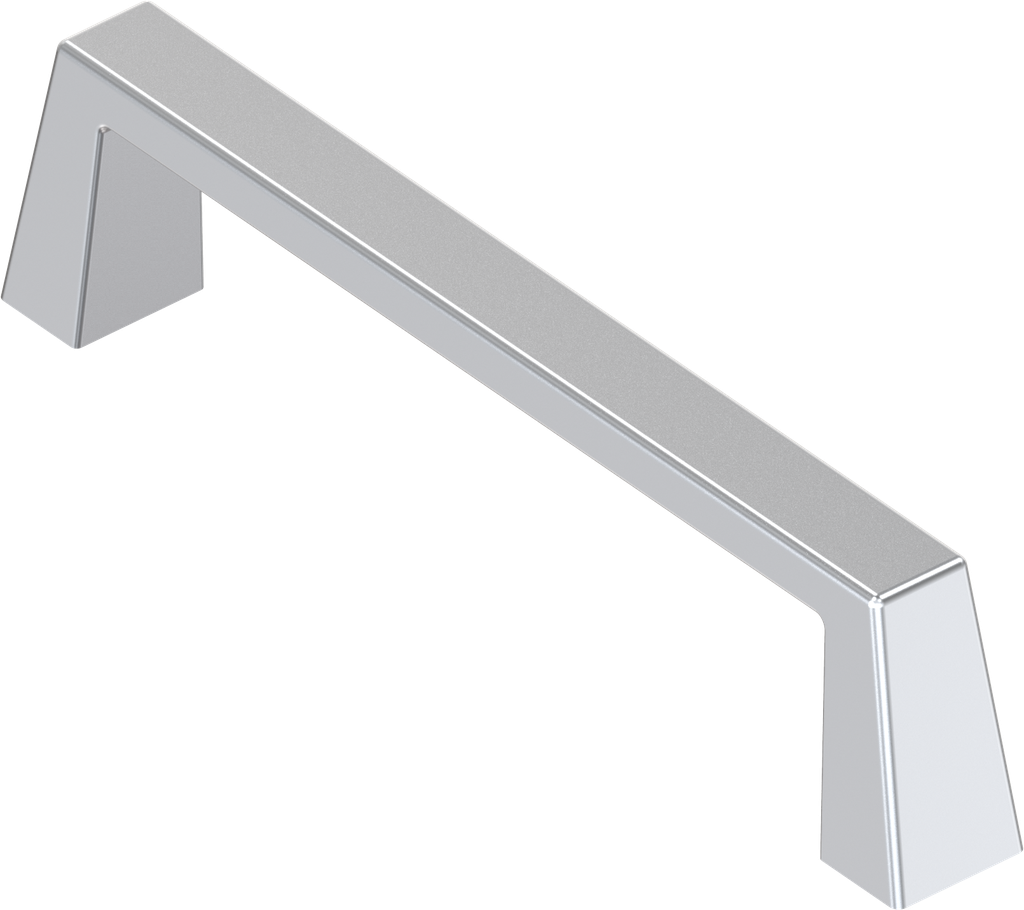

Bow-type handle, Zinc die chrome-plated
Bow-type handle, Zinc die black powder-coated
Internal Reference:
1045-03
Product Type:
Handle
Material:
Zinc die
Program:
1045
Surface:
chrome-plated

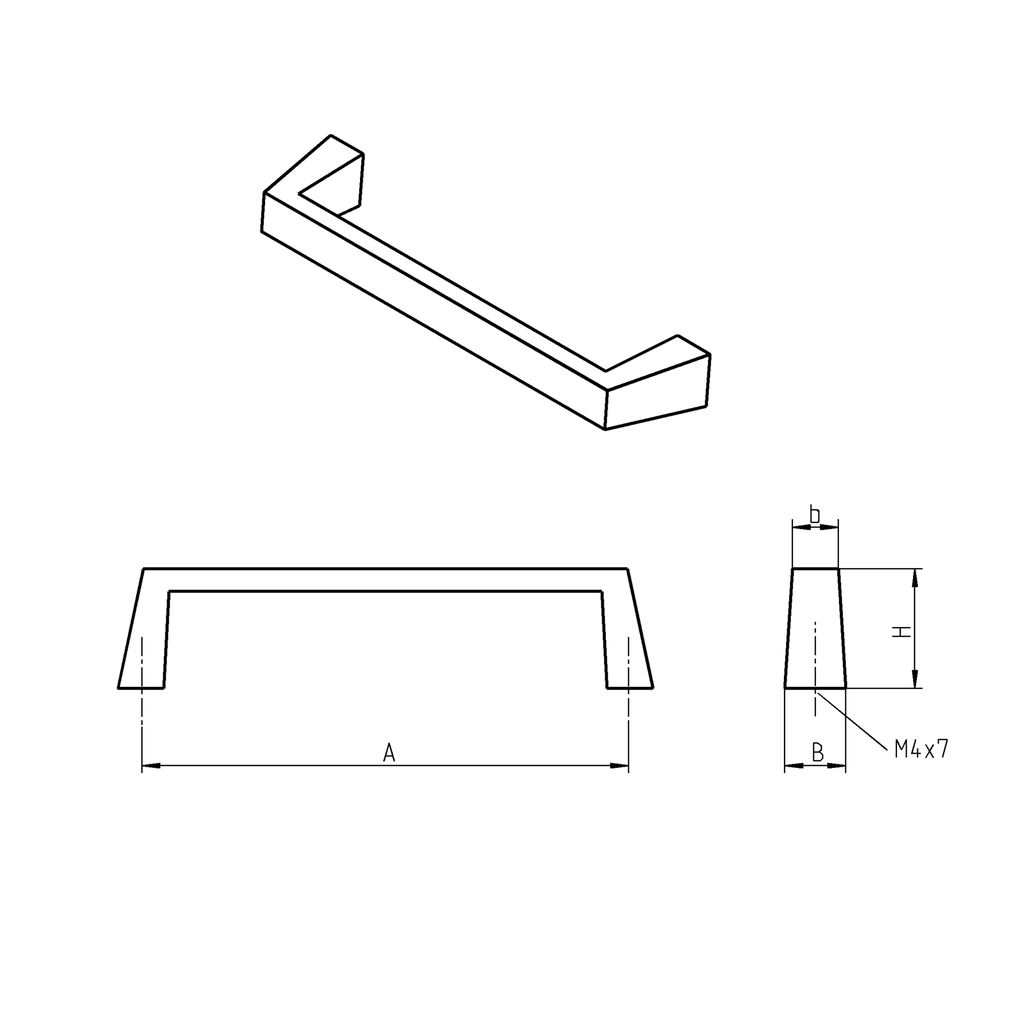

Dimension A:
81 mm
Dimension b:
8 mm
Dimension B:
11 mm
Fixing type of handle:
screw-on from inside
G = thread specification:
M4 x 7
Handle Art(2):
Fixed handle, tube handle, bow-type handle and machine handle
Dimension H:
22 mm
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
