180° Concealed hinge, Steel zinc-plated and raw
180° Concealed hinge, Steel zinc-plated and raw

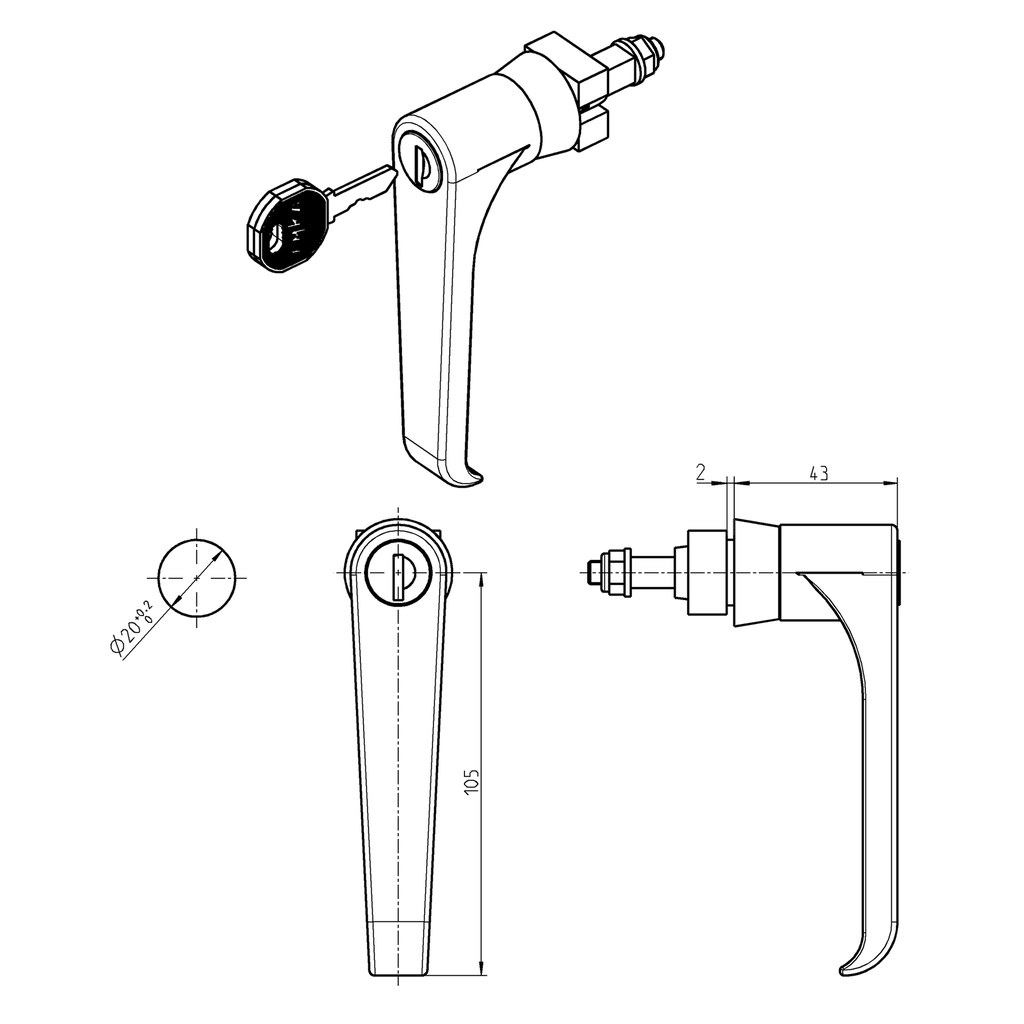

L-handle keyed EK 333, Zinc die chrome-plated
L-handle keyed EK 333, Zinc die chrome-plated

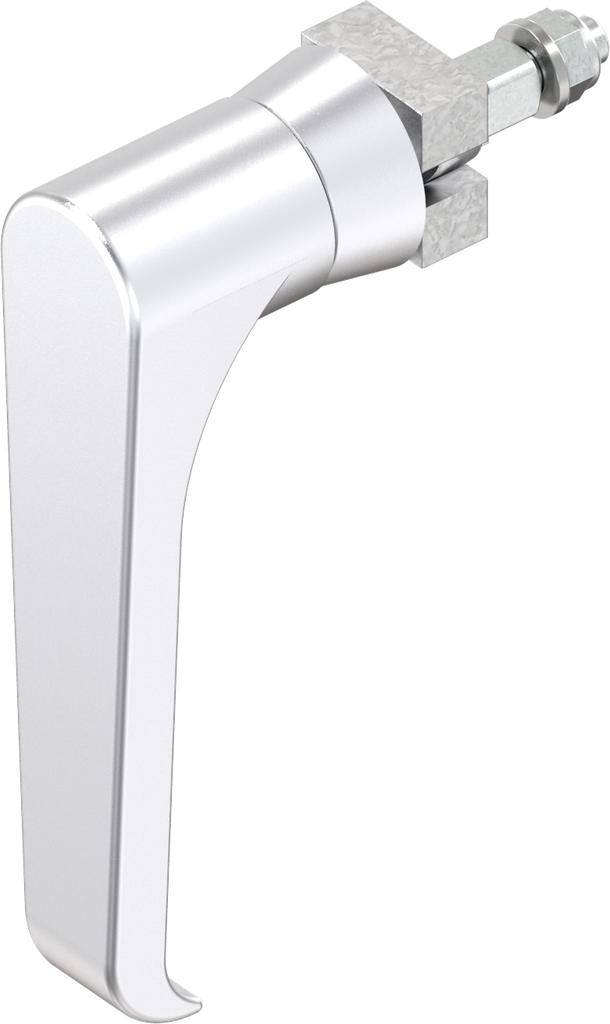

L-handle non-keyed, Zinc die chrome-plated; 1044-U1

https://20241023-uat.emka.opaas.sh/products/1044-u1 https://20241023-uat.emka.opaas.sh/web/image/product.template/61359/image_1920?unique=f4fbb77

for weld-on version, A = 20 mm

    This combination does not exist.

    Left Right
    Contact Us
    Internal Reference: 1044-U1
    Product Type: Quarter turn
    Program: 1044
    Catalog sheet: 2B-160
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Housing Head Shape: Round
    Handle Art: L-handle
    Locking set: No locking set, blind
    Door Version : Left,Right
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Rod control accessories
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2B-160
    Product data sheet
    CAD file | 1044-U1_igs
    CAD file | 1044-U1_stp
