Reinforcement plate, Steel zinc-plated
L-handle keyed different, Zinc die chrome-plated
Internal Reference:
1039-U25

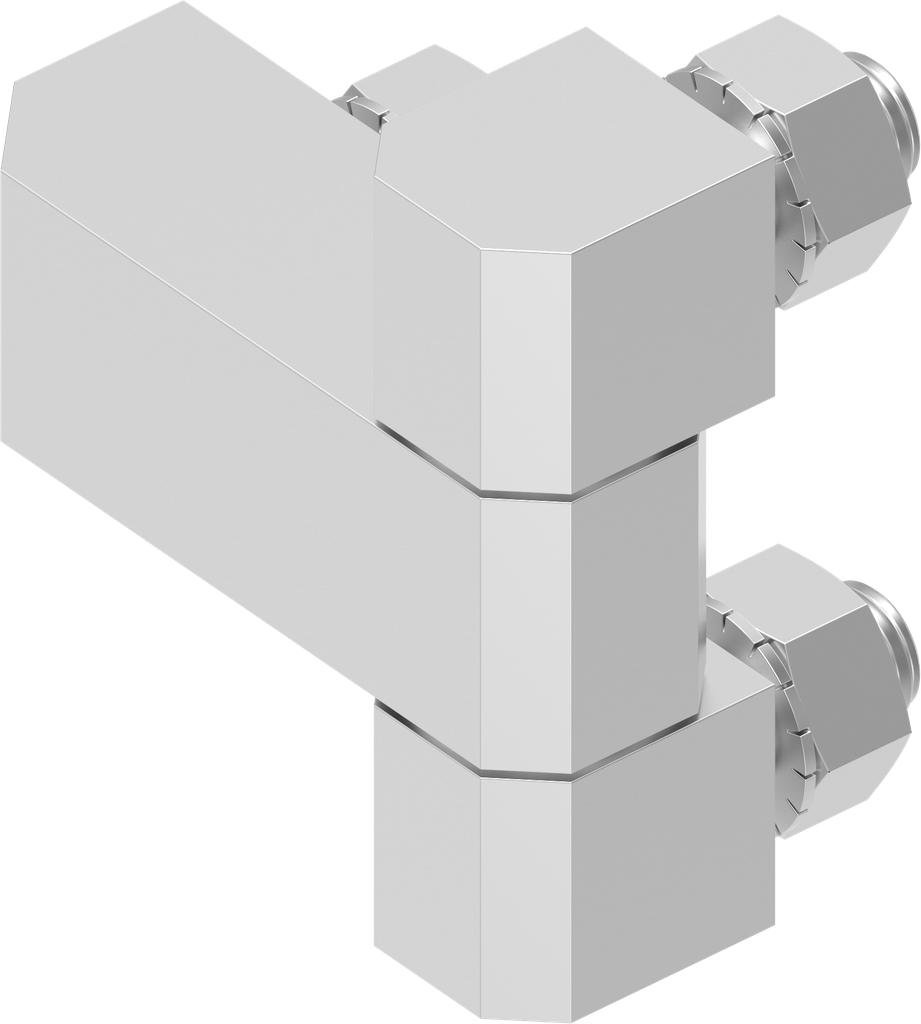

Product Type:
Hinge
Program:
1039
Catalog sheet:
4B-160
Material of the module :
Stainless steel AISI 316

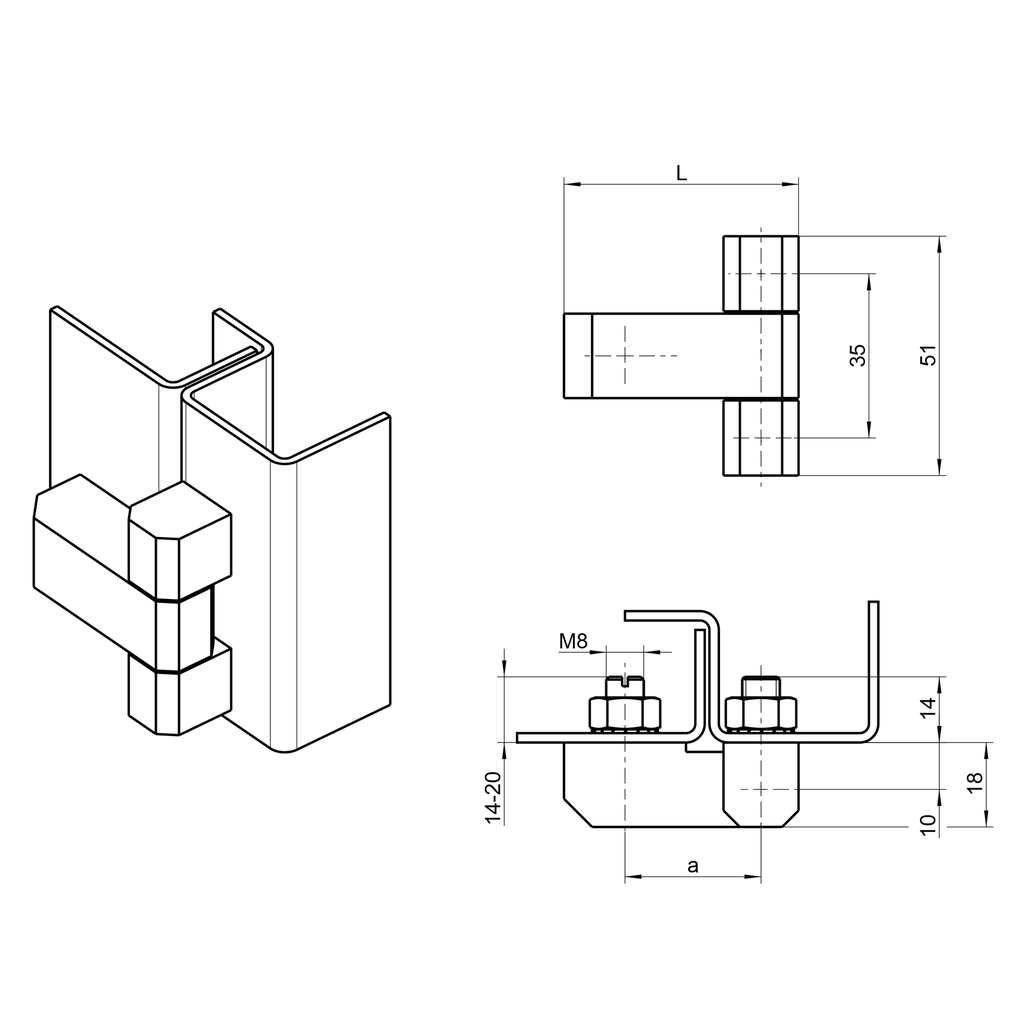

Dimension a:
29 mm
Door return variable:
Yes
Type of attachment to the frame:
screw-on from inside
Type of fastening on the door:
screw-on from inside
Dimension L:
50 mm
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
