Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black
Sealing profile, EPDM 55 Shore A black

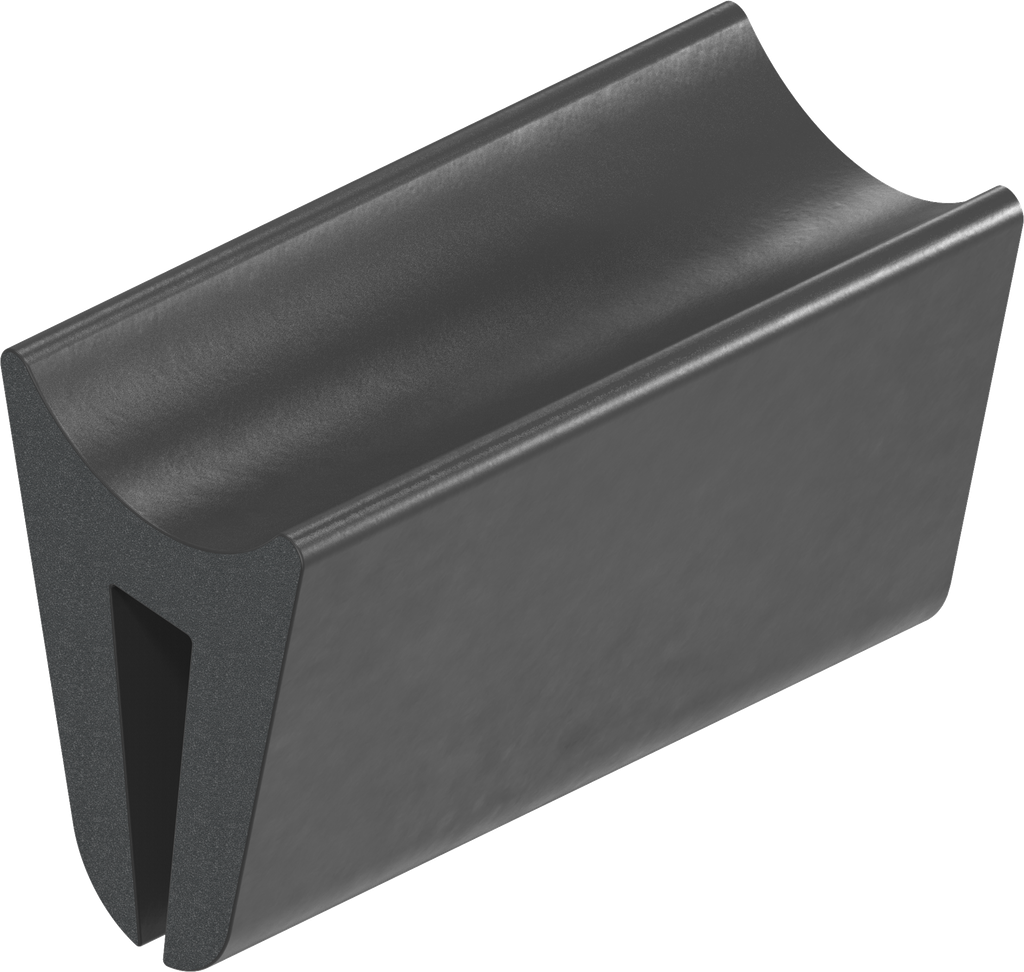

Sealing profile, EPDM 55 Shore A black; 1038-07

https://20241023-uat.emka.opaas.sh/products/1038-07 https://20241023-uat.emka.opaas.sh/web/image/product.template/61278/image_1920?unique=8c86412

    This combination does not exist.

    Contact Us
    Internal Reference: 1038-07
    Product Type: Seal
    Material: EPDM 55 Shore A
    Program: 1038
    Surface: black
    Catalog sheet: 5A-200
    Seal element: Sealing lip, top
    Seal Type: Clip-on profile

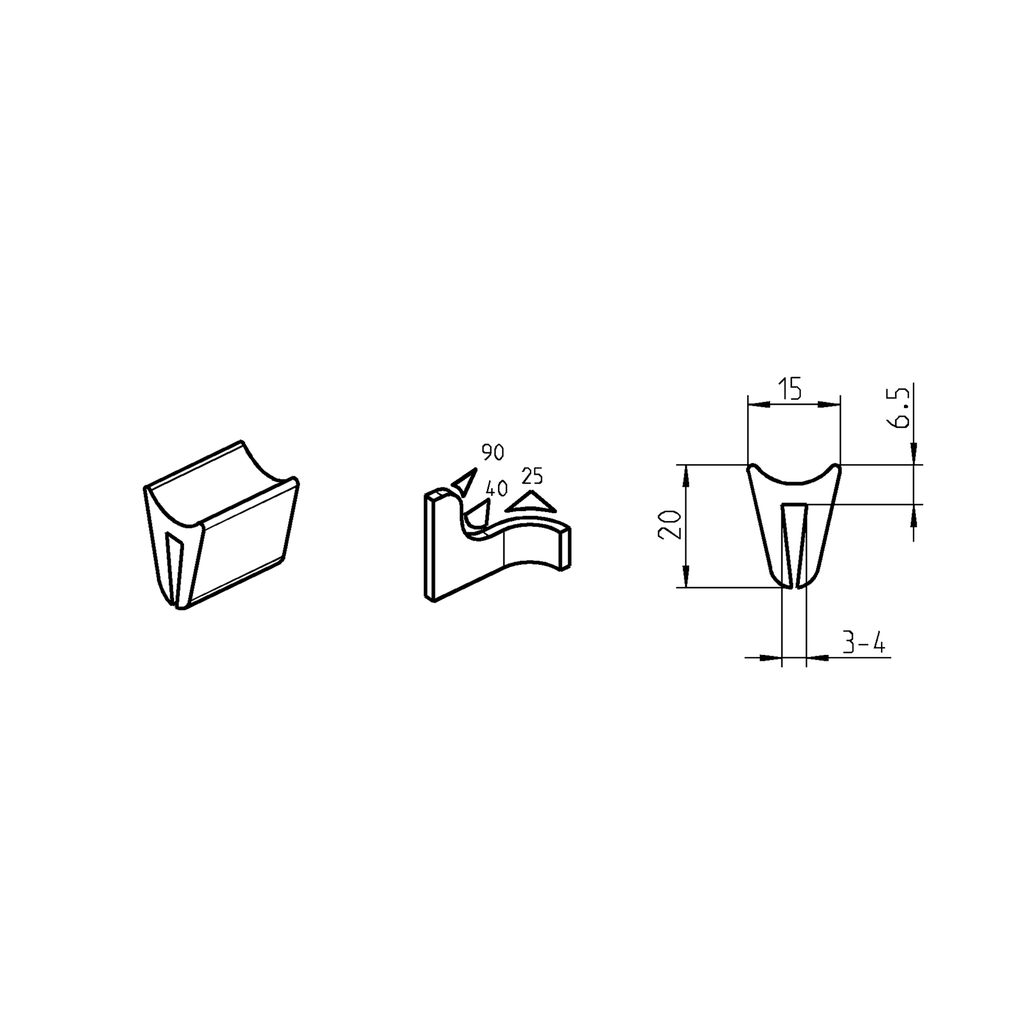

    Dimension h: 13.50 mm
    Dimension H: 20 mm
    Clamping edge is or is up to: 4
    Terminal Edge Of: 3
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 5A-200
    Product data sheet
    CAD file | 1038-07_igs
    CAD file | 1038-07_stp
