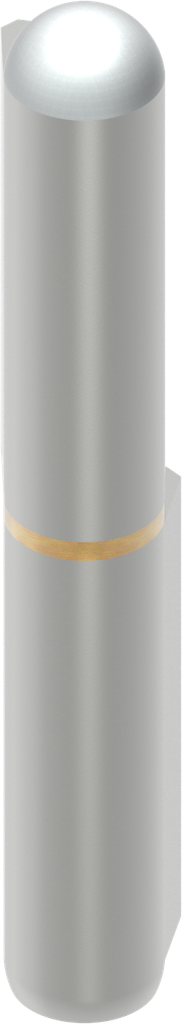

Weld-on hinge, Steel raw
Weld-on hinge, Steel raw
Weld-on hinge, Steel raw; 1033-U32
No stock item, please ask for availability
100% original guarantee
Return within 30days
Free delivery on all orders
Product information:
L dimensions are nominal; weld-on hinges can be smaller.
Internal Reference:
1033-U32
Barcode:
1033-U00032-0000000
Product Type:
Hinge
Program:
1033
Catalog sheet:
4A-300
Material of the module :
Steel
Surface of the module:
raw
Door return variable:
Yes
Detachable:
without tools
Type of attachment to the frame:
weld-on
Type of fastening on the door:
weld-on

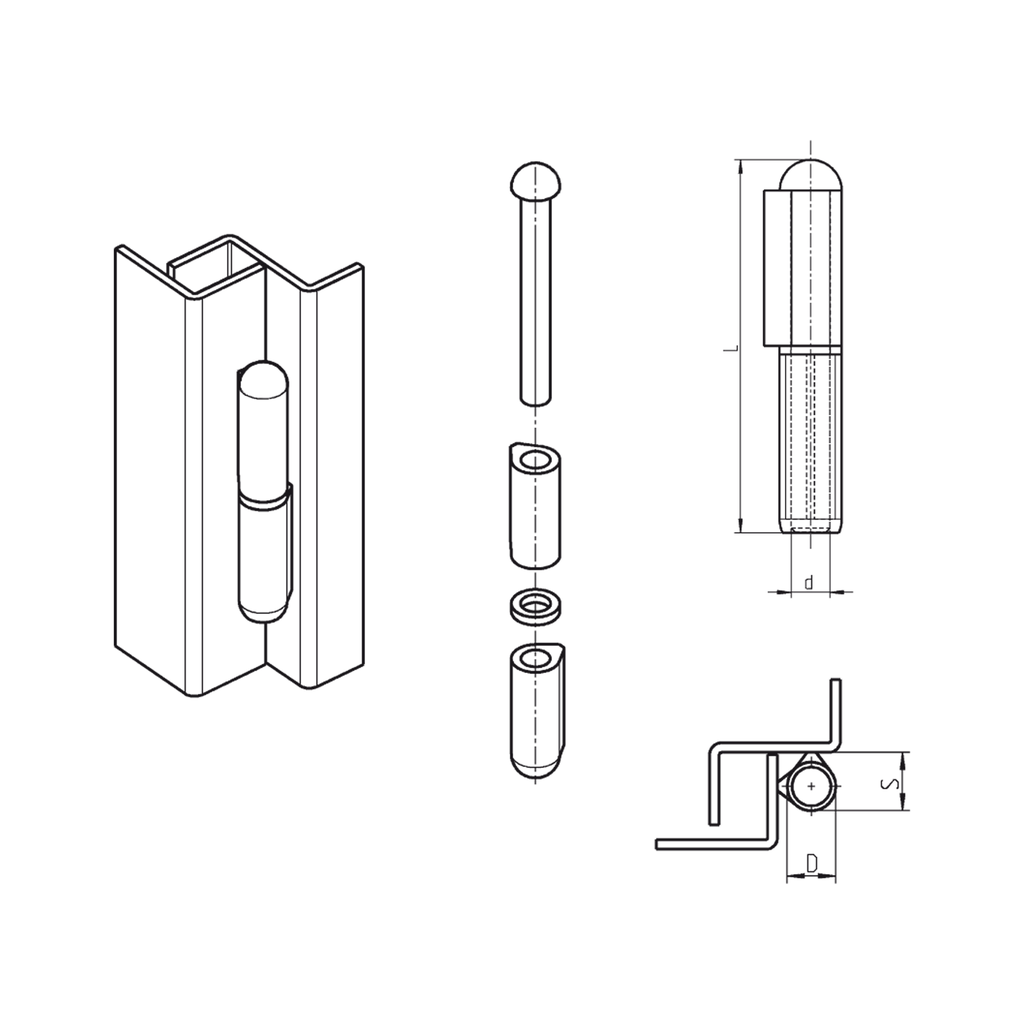

Dimension d:
12 mm
Dimension D:
18 mm
Dimension L:
135 mm
Max. opening angle due to installation:
Yes
Dimension S:
22 mm
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
