Product information:

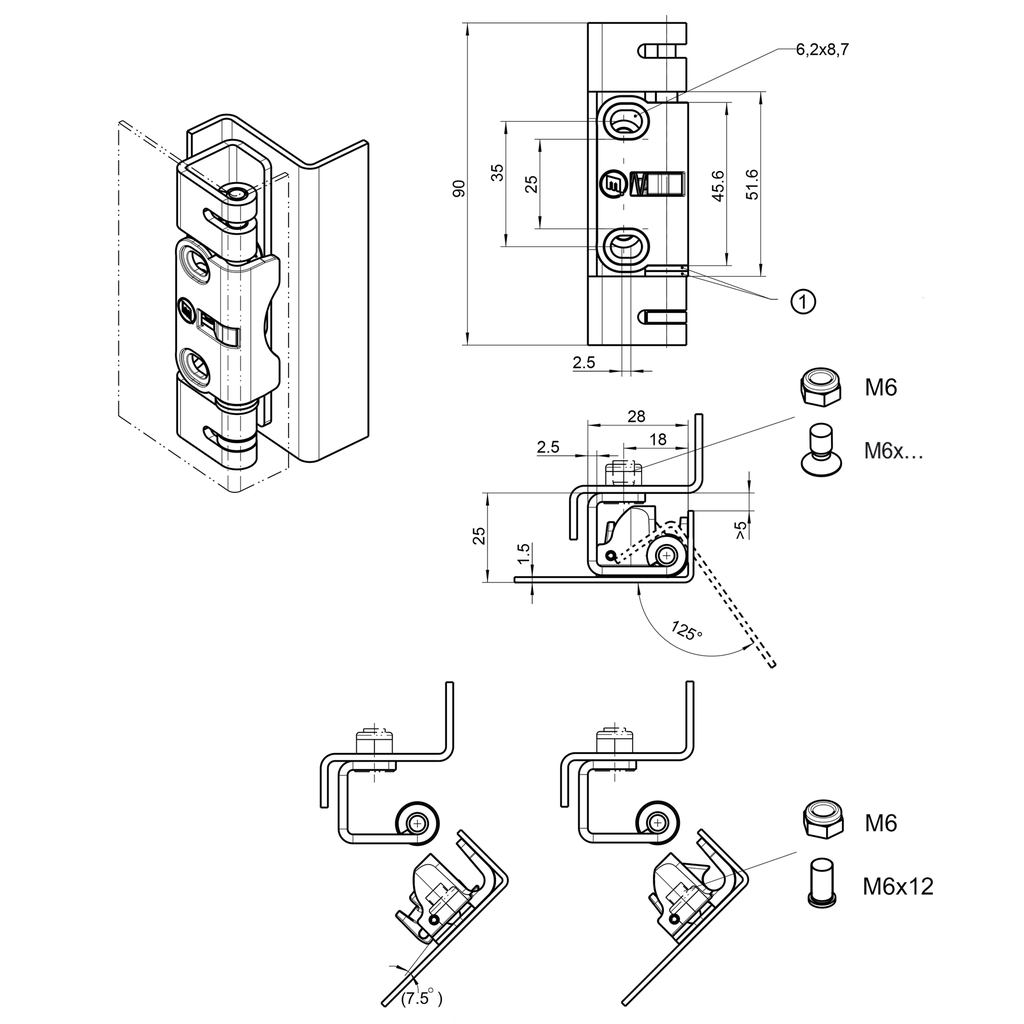

1 = Two sliding washers (mounting position)
Internal Reference:
1031-U34
Product Type:
Hinge
Program:
1031
Material of the module :
Zinc die and steel
Surface of the module:
zinc-plated
Type of attachment to the frame:
screw-on, with weld stud M6 x 12
Type of fastening on the door:
screw-on from outside, for countersunk screw small head M6
Max Opening Angle:
125°
Cabinet type :
In-line cabinets with single door
Countersinking for standard countersunk screws:
Countersink for countersunk screw M8x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Door position:
prominent
Door Version :
Left,Right
Door thickness:
1.5 mm
Captive pen:
Yes
Cannot be disassembled from the outside:
Yes
No Specifications
