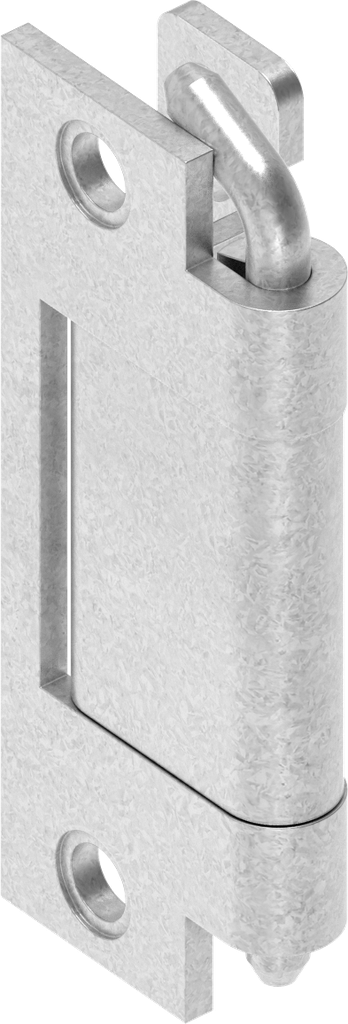

120° Hinge, Steel zinc-plated and raw
125° Hinge with captive pin, Steel zinc-plated and raw
Internal Reference:
1031-U10
Product Type:
Hinge
Program:
1031
Catalog sheet:
4A-130
Material of the module :
Steel
Surface of the module:
zinc-plated

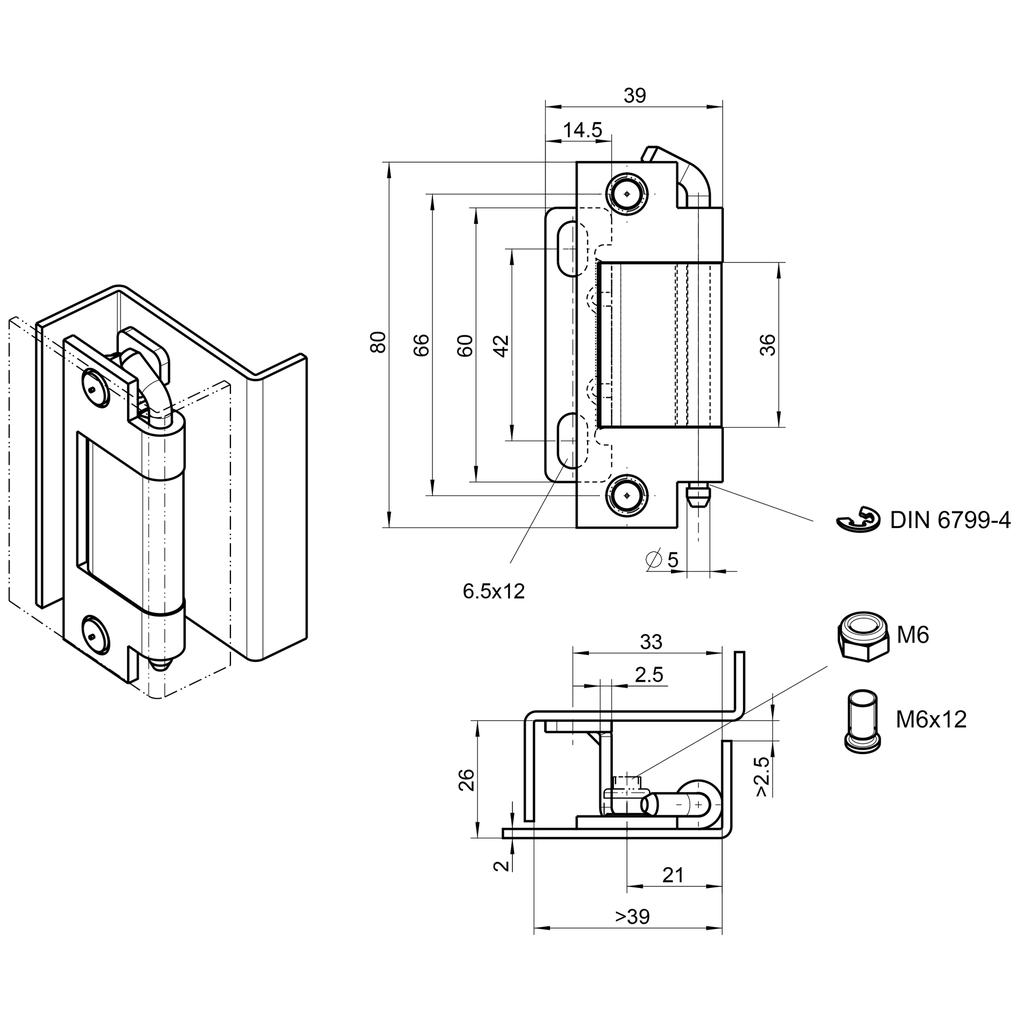

Dimension A, Variable:
26 mm
Detachable:
with tools
Type of attachment to the frame:
screw-on, with weld stud M6 x 12
Type of fastening on the door:
screw-on from outside
Max. opening angle due to installation:
Yes
Max Opening Angle:
120°
Cabinet type :
Single cabinets
Door position:
prominent
Door Version :
Left,Right
Door thickness:
2 mm
