Cylinder quarter turn, keyed different, Zinc die chrome-plated

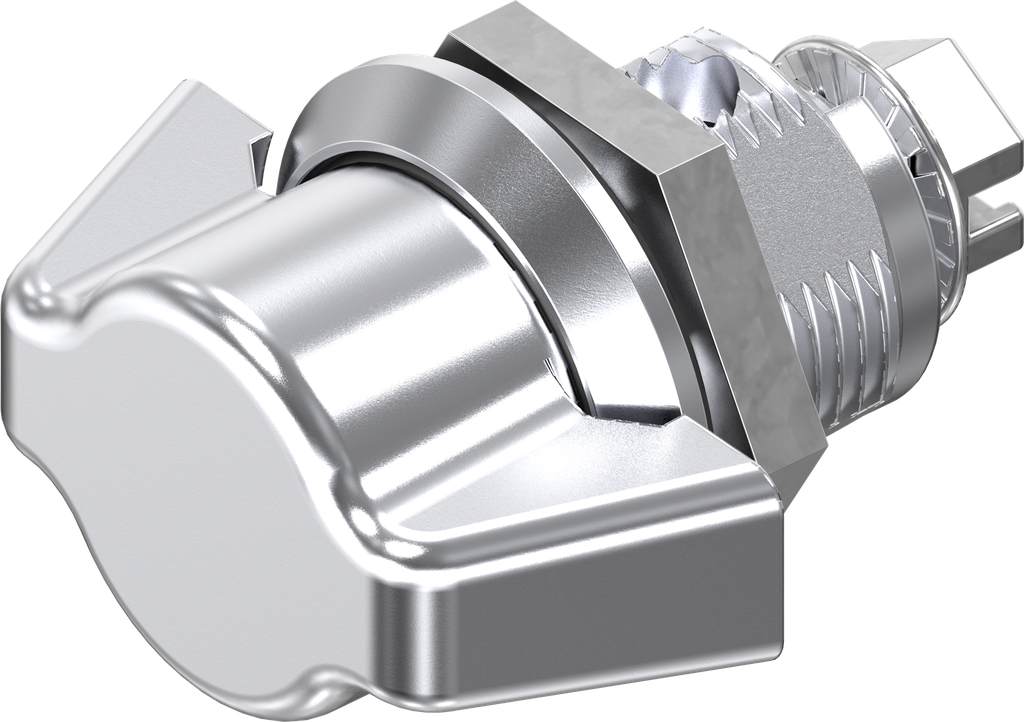

Wing knob quarter turn, non-keyed, Zinc die and steel chrome-plated
Internal Reference:
1022-U29
Product Type:
Quarter turn
Program:
1022
Catalog sheet:
1A-140
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
22 x 3 mm
GH Mass:
13.50 mm
Handle Art:
Wing knob
Suitable for door thickness from:
0.50 mm
Suitable for door thicknesses up to:
5 mm
Locking set:
No locking set, blind
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
