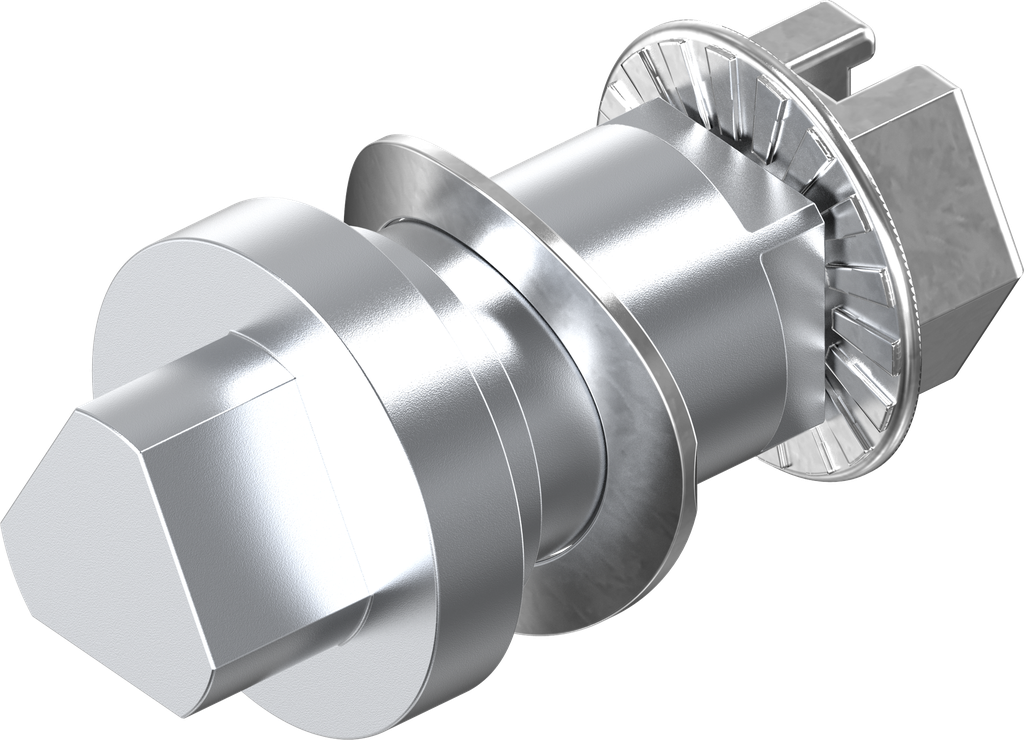

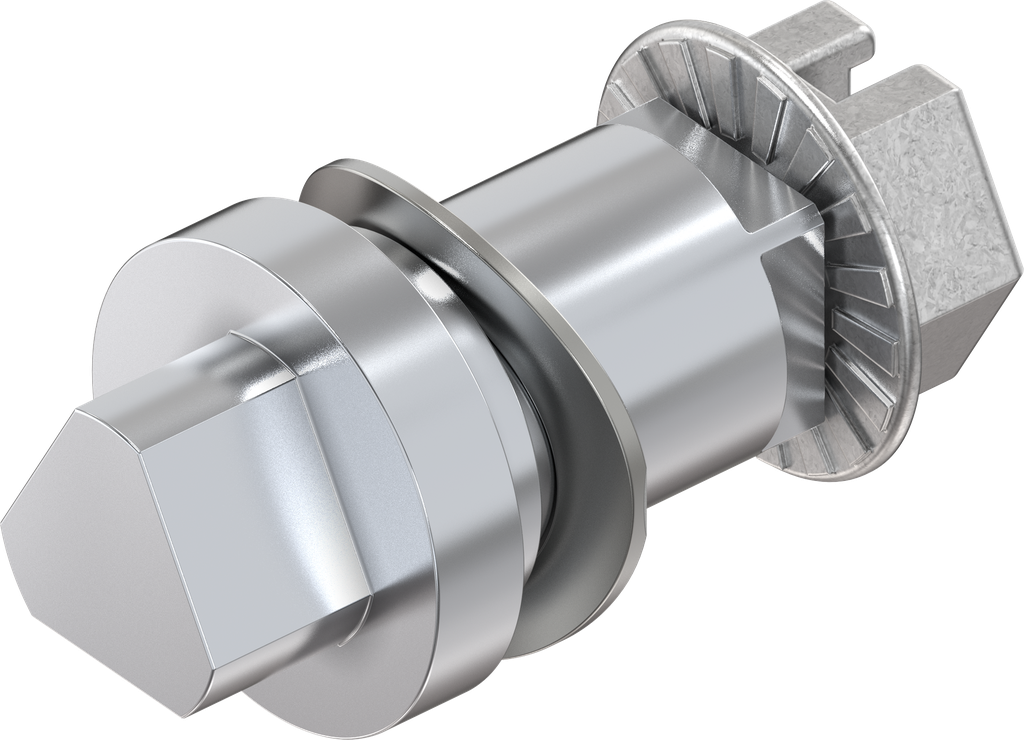

Quarter turn assembly without O-ring;
Insert square 6, Zinc die chrome-plated
Internal Reference:
1022-U1
Product Type:
Insert
Program:
1022
Catalog sheet:
1A-120
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Insert for:
Insert for housing, classic
Type of actuation:
Triangular 6.5
For GH measure:
13.50 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
View All Products

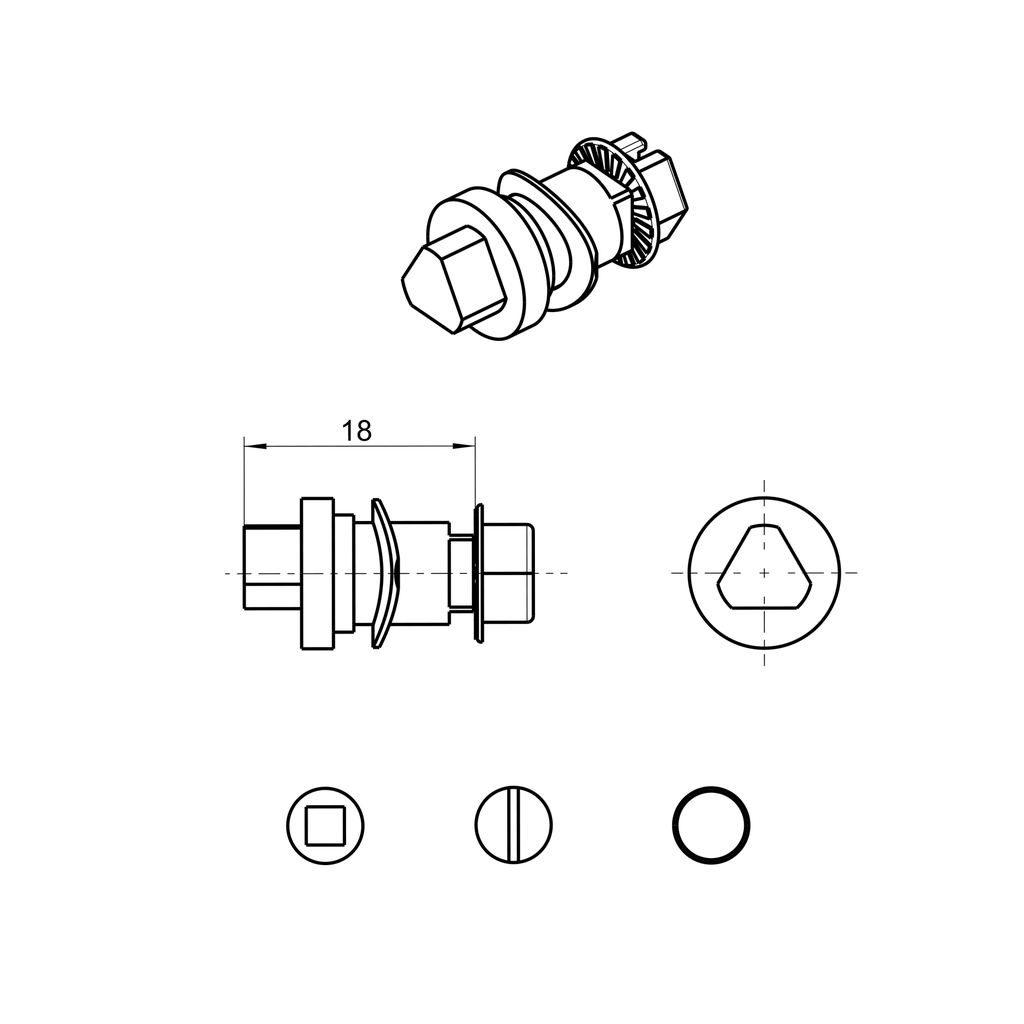

Here you can find the product data sheets and CAD files of this product
