Rotary piston, Polyamide and steel zinc-plated
Nut M16 x 1, Steel zinc-plated
Internal Reference:
1022-01-02

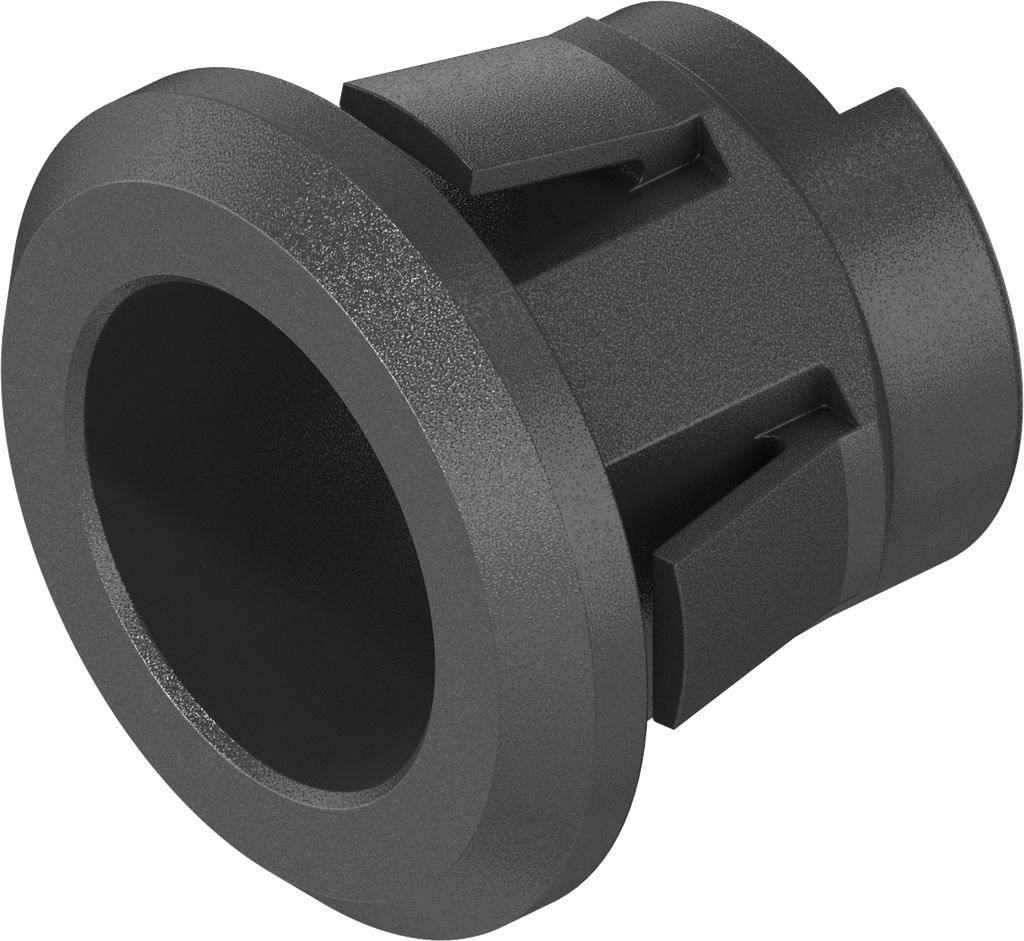

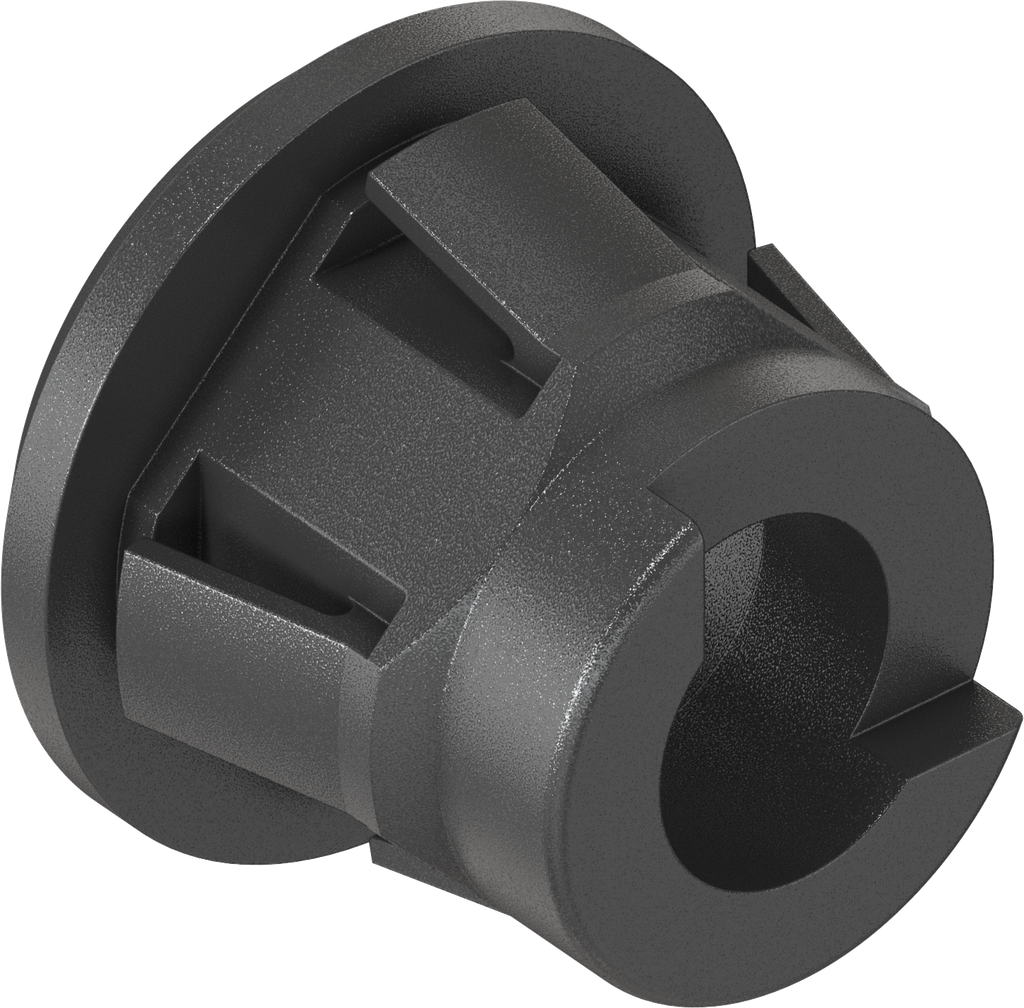

Product Type:
Housing
Material:
Polyamide
Program:
1022
Surface:
black
Catalog sheet:
1A-120
Number of Possible Locking Points:
1 point
Fixing type of housing :
clip-in
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

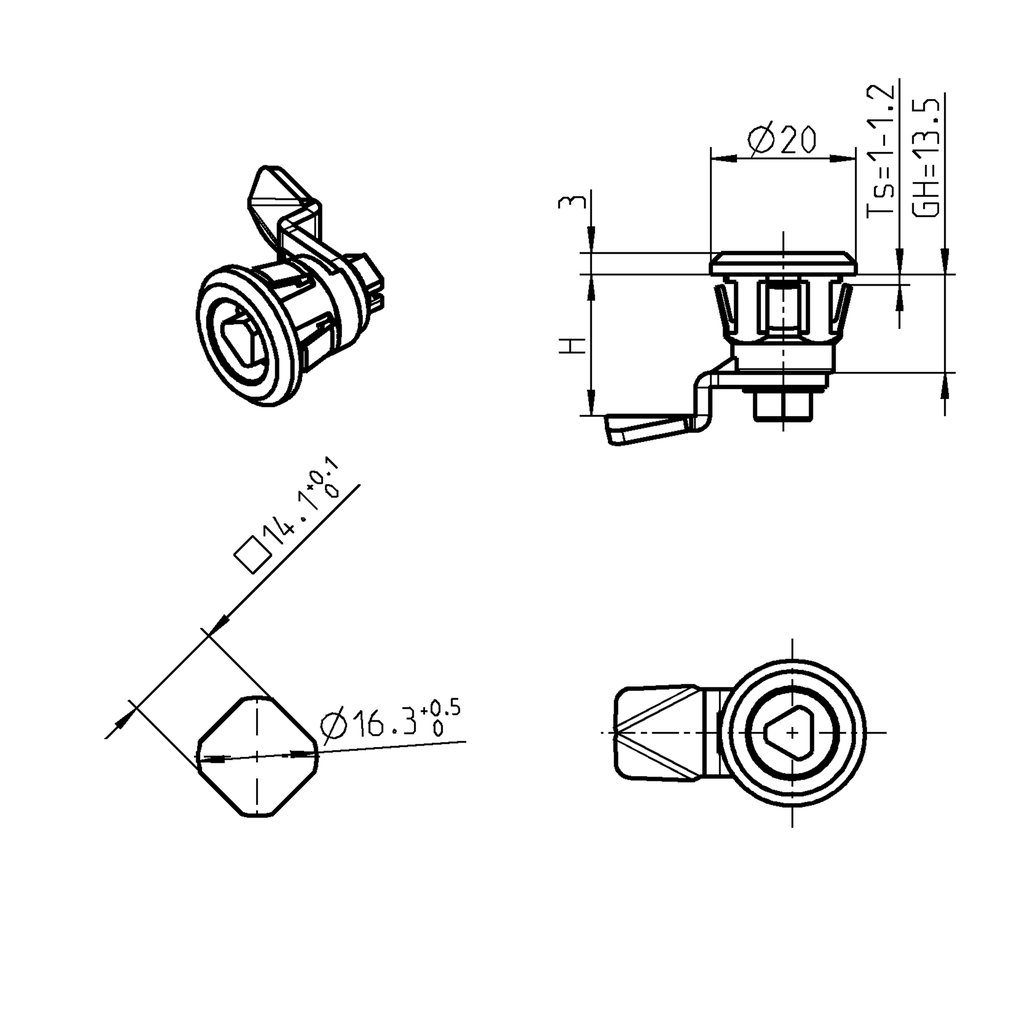

Housing Head Size:
20 x 3 mm
GH Mass:
13.50 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
1.20 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Cam Body Style:
Housing for insert, classic
Quarter turn types:
Quarter turn with simple insert
