Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black

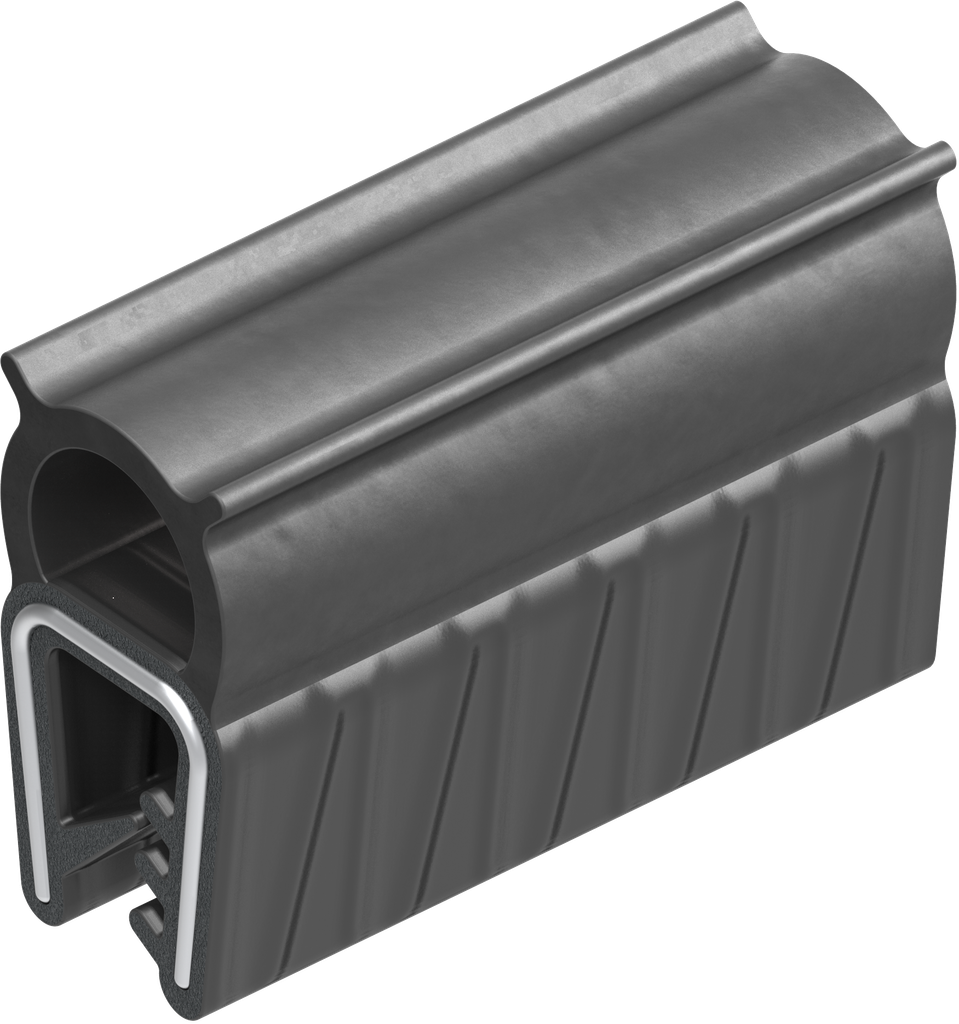

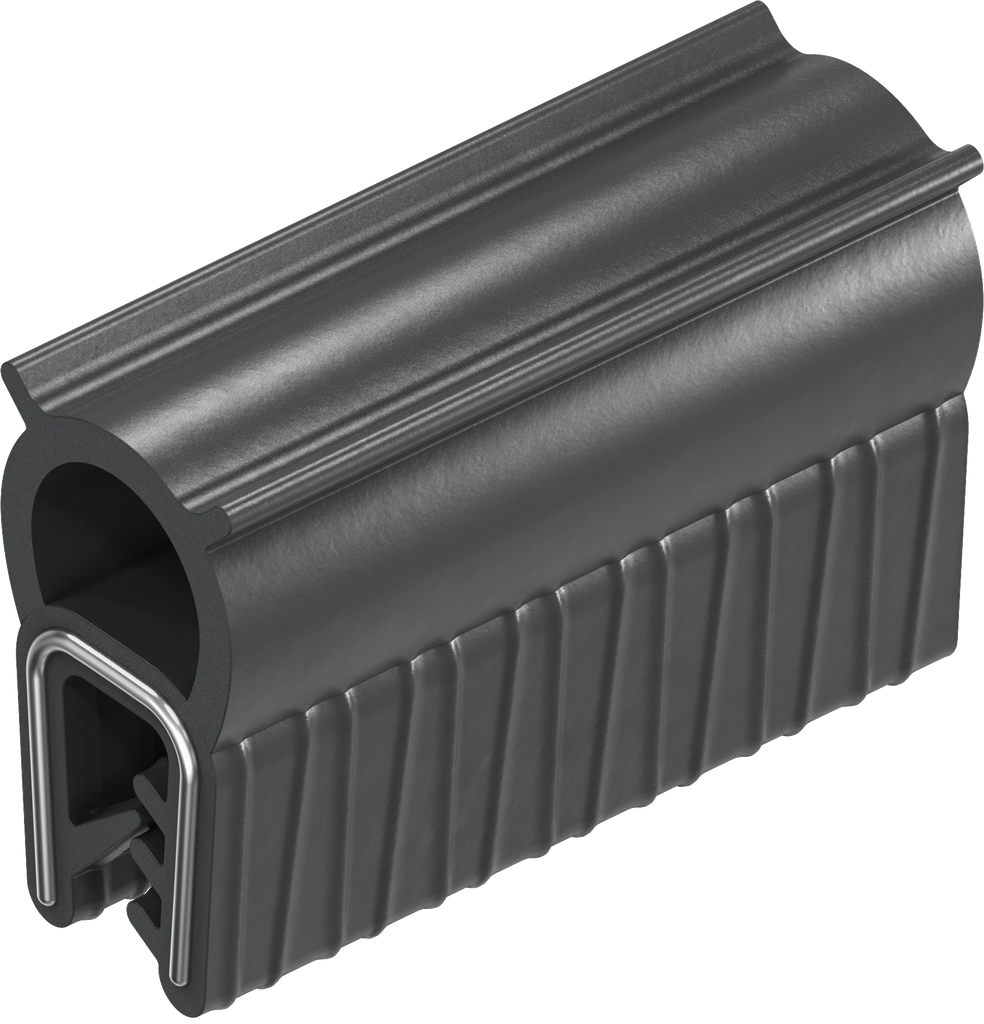

Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black; 1011-49

https://20241023-uat.emka.opaas.sh/products/1011-49 https://20241023-uat.emka.opaas.sh/web/image/product.template/60709/image_1920?unique=15a43c4

    This combination does not exist.

    Contact Us
    Internal Reference: 1011-49
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-130
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 5
    Terminal Edge Of: 3
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 5A-130
    Product data sheet
    CAD file | 1011-49_igs
    CAD file | 1011-49_stp
