Sealing profile, self-clamping, EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 70 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 70 ± 5 Shore A black

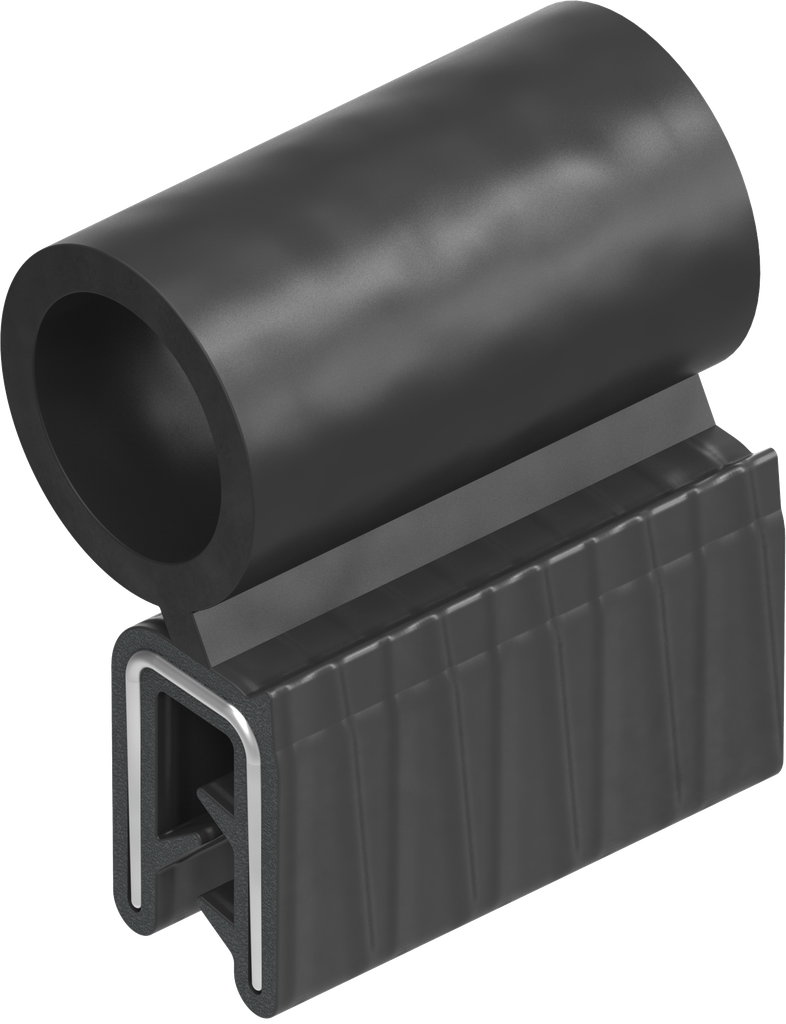

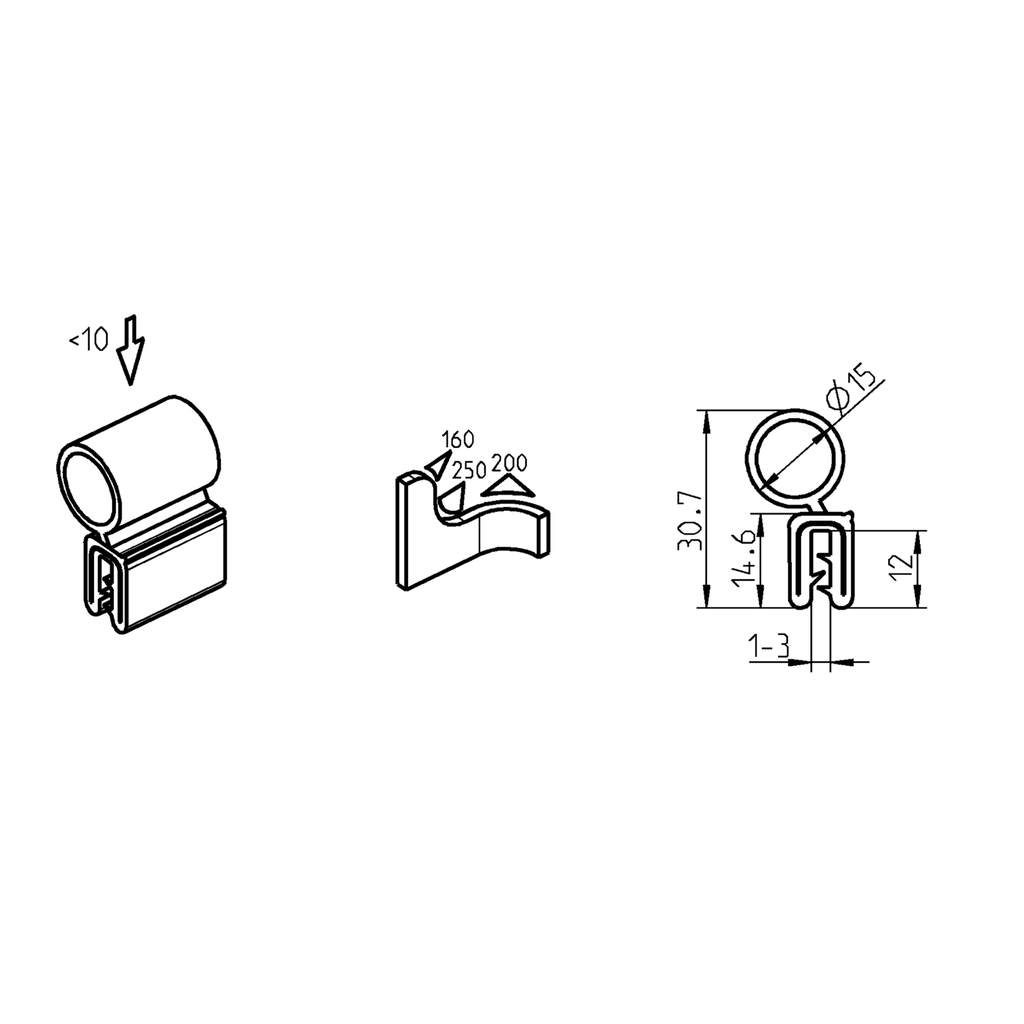

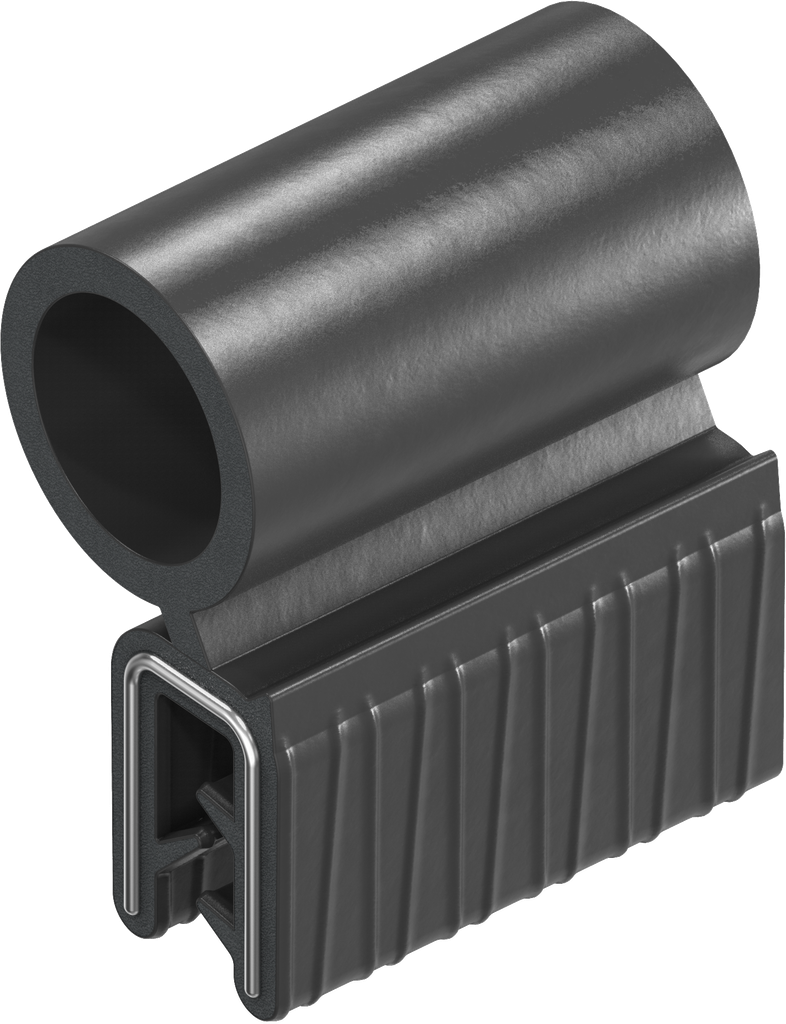

Sealing profile, self-clamping, EPDM 60 ± 5 Shore A black; 1011-34

https://20241023-uat.emka.opaas.sh/products/1011-34 https://20241023-uat.emka.opaas.sh/web/image/product.template/60698/image_1920?unique=15a68e5

    This combination does not exist.

    Contact Us
    Internal Reference: 1011-34
    Product Type: Seal
    Material: EPDM 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-140
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 3
    Terminal Edge Of: 1
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 5A-140
    Product data sheet
    CAD file | 1011-34_igs
    CAD file | 1011-34_stp
