Sealing profile, self-clamping, Foam rubber EPDM; clamping profile PVC 70 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile PVC 70 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile PVC 70 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile PVC 70 ± 5 Shore A black

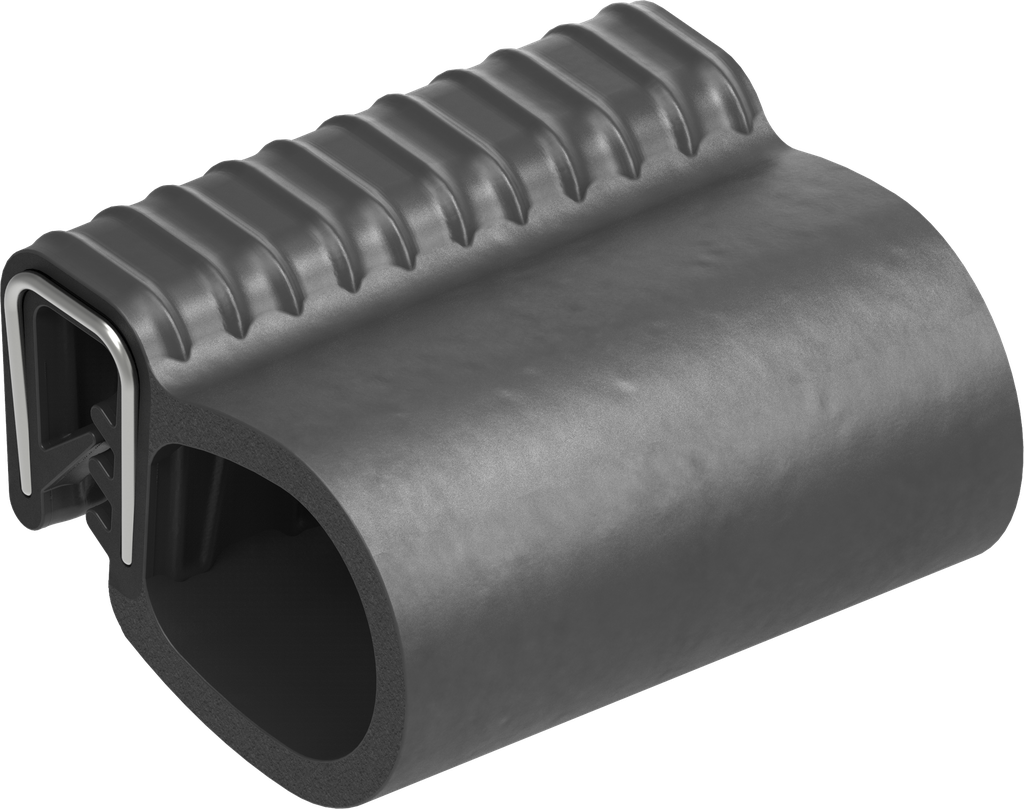

Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black; 1011-22-01

https://20241023-uat.emka.opaas.sh/products/1011-22-01 https://20241023-uat.emka.opaas.sh/web/image/product.template/60684/image_1920?unique=9140138

    This combination does not exist.

    Contact Us

    Product information:

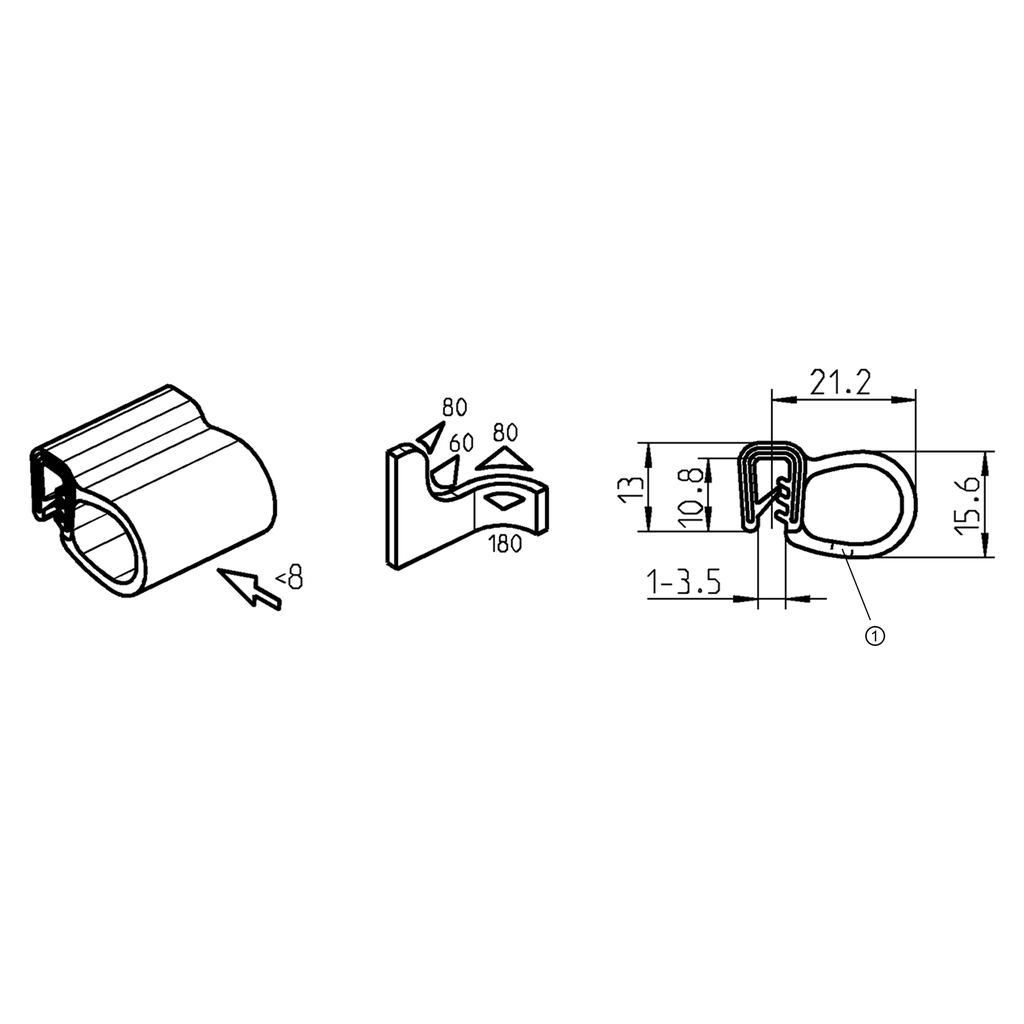

    ① = Bore holes approx. every 1500 mm
    Internal Reference: 1011-22-01
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: P1-240
    Seal element: Sealing balloon, lateral
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 1
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1011-22-01_igs
    CAD file | 1011-22-01_stp
