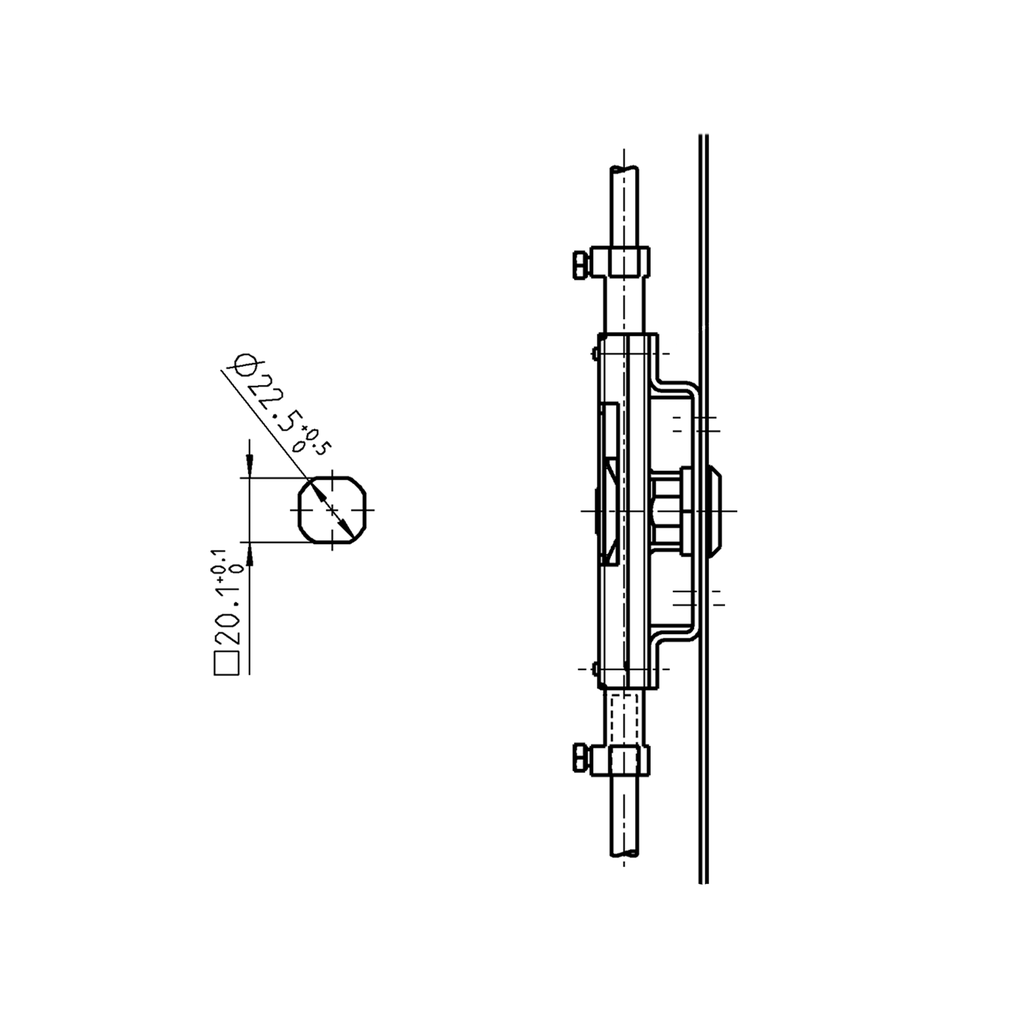

Rod control, left version, for pressure-tight system, round rods and square rods stroke 18, Steel zinc-plated
Key guide for double bit, Zinc die chrome-plated
Key guide for triangular and square, Zinc die chrome-plated; 1001-U14
for screw-on version, A = 26 mm
Internal Reference:
1001-U14
Product Type:
Housing
Program:
1001
Catalog sheet:
2A-120
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Dimention A:
A 26
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
28 x 4 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Rod control for heavy duty
No Specifications
