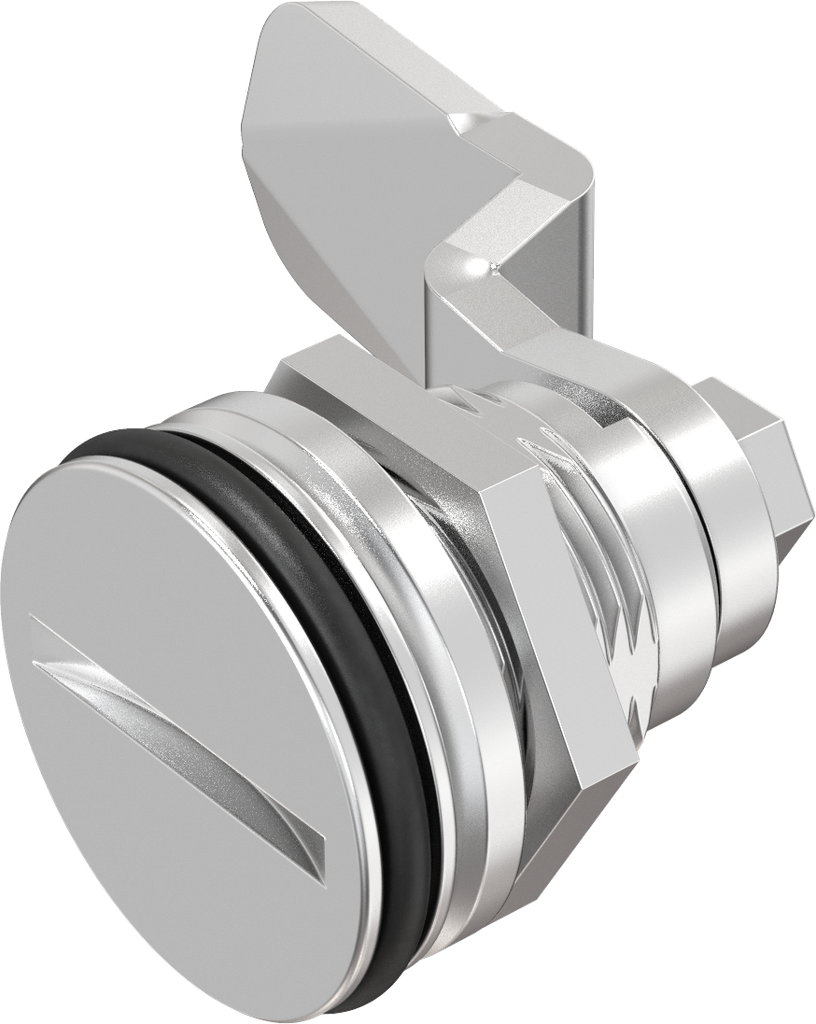

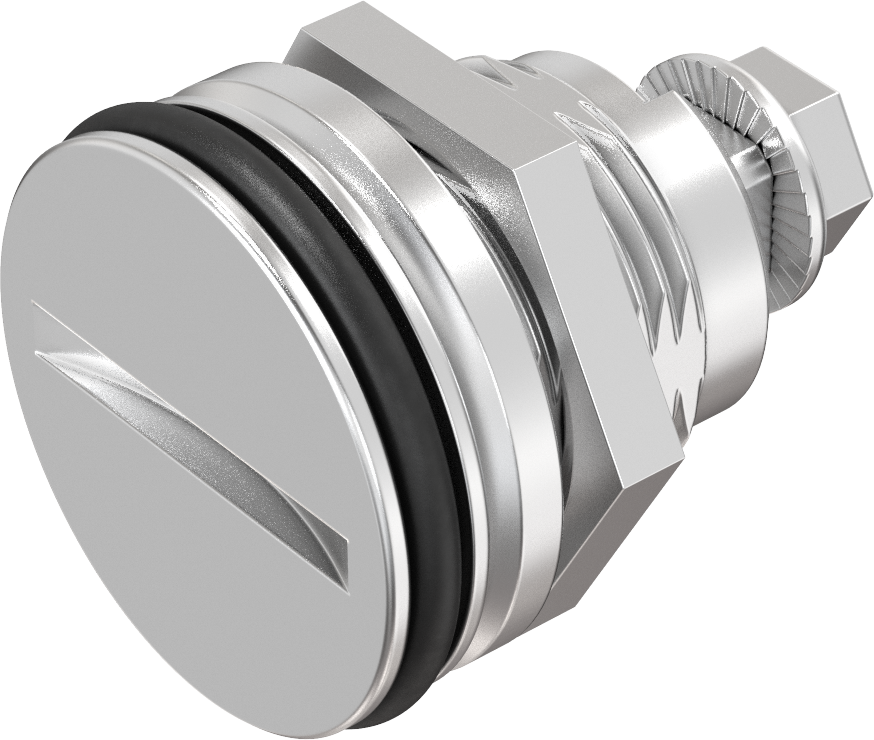

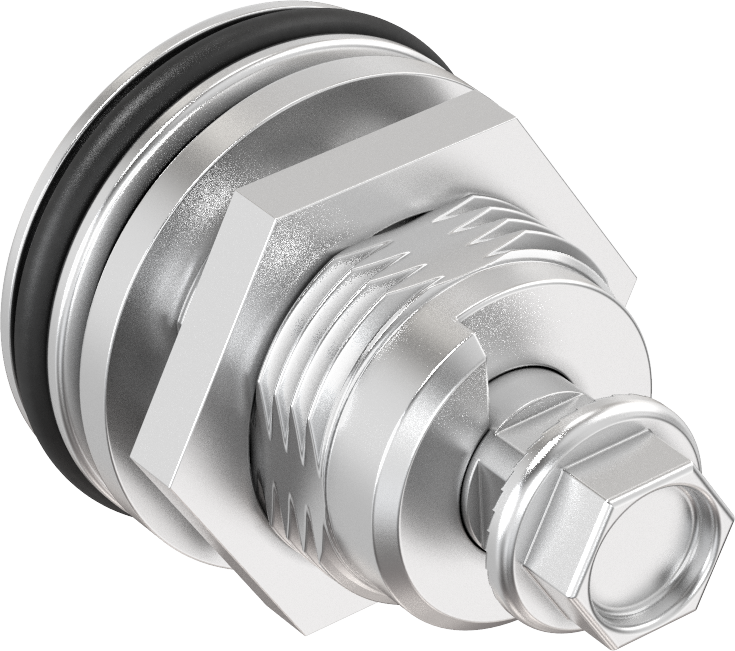

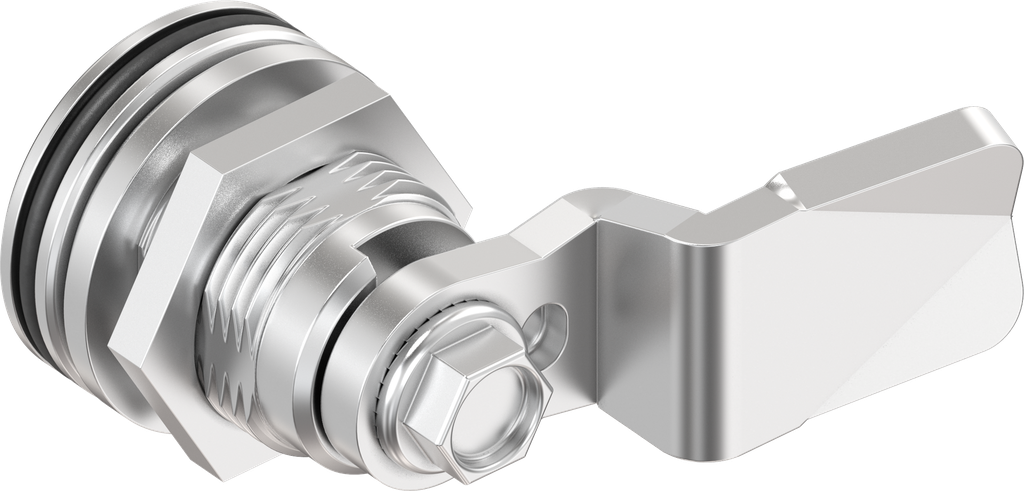

Quarter turn with cover, railway version with outer rack, Stainless steel AISI 316; 1000-U958
for bottom locks
Product information:

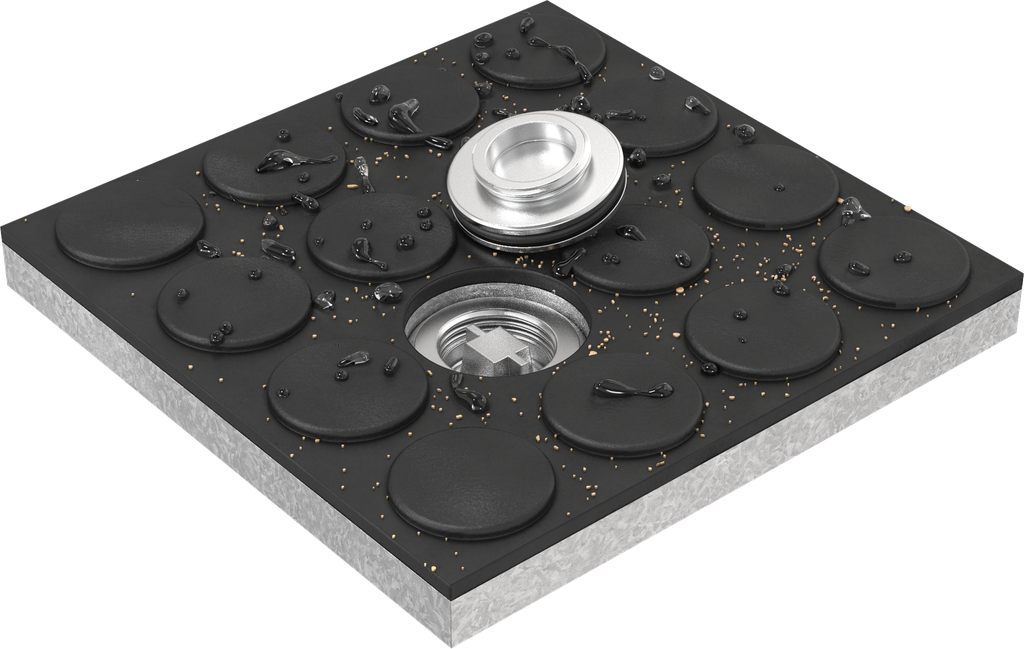

To cover latches installed in the floor.

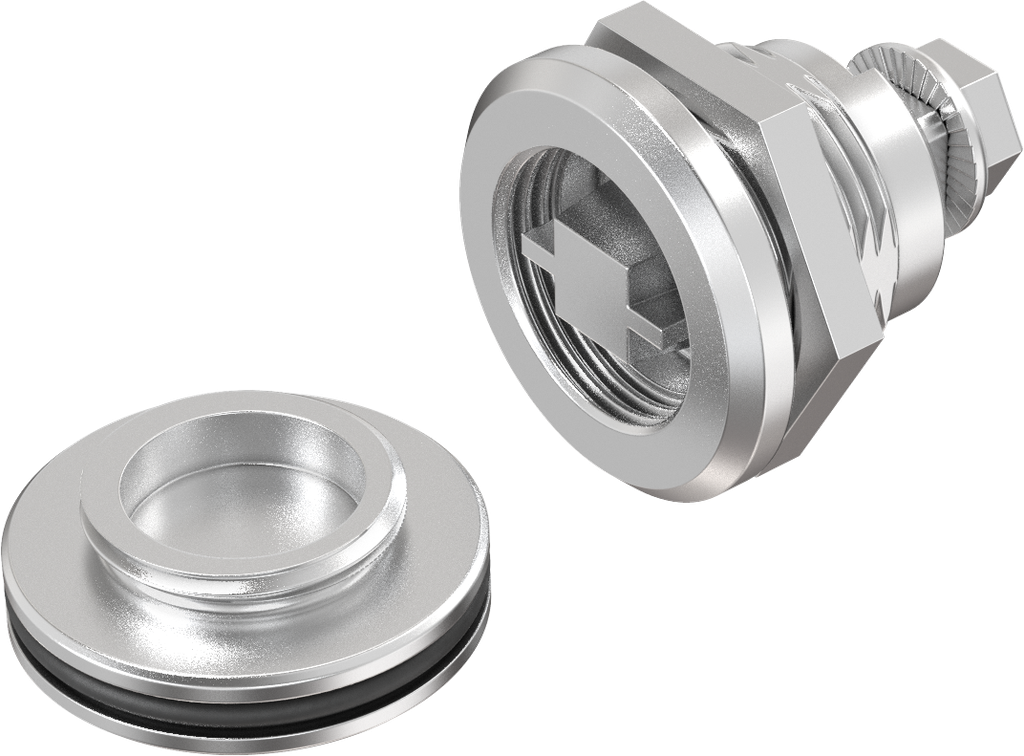

The cover lid prohibits the infiltration of dirt and moisture into the insert area.
Internal Reference:
1000-U958
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with marking and outer rack, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

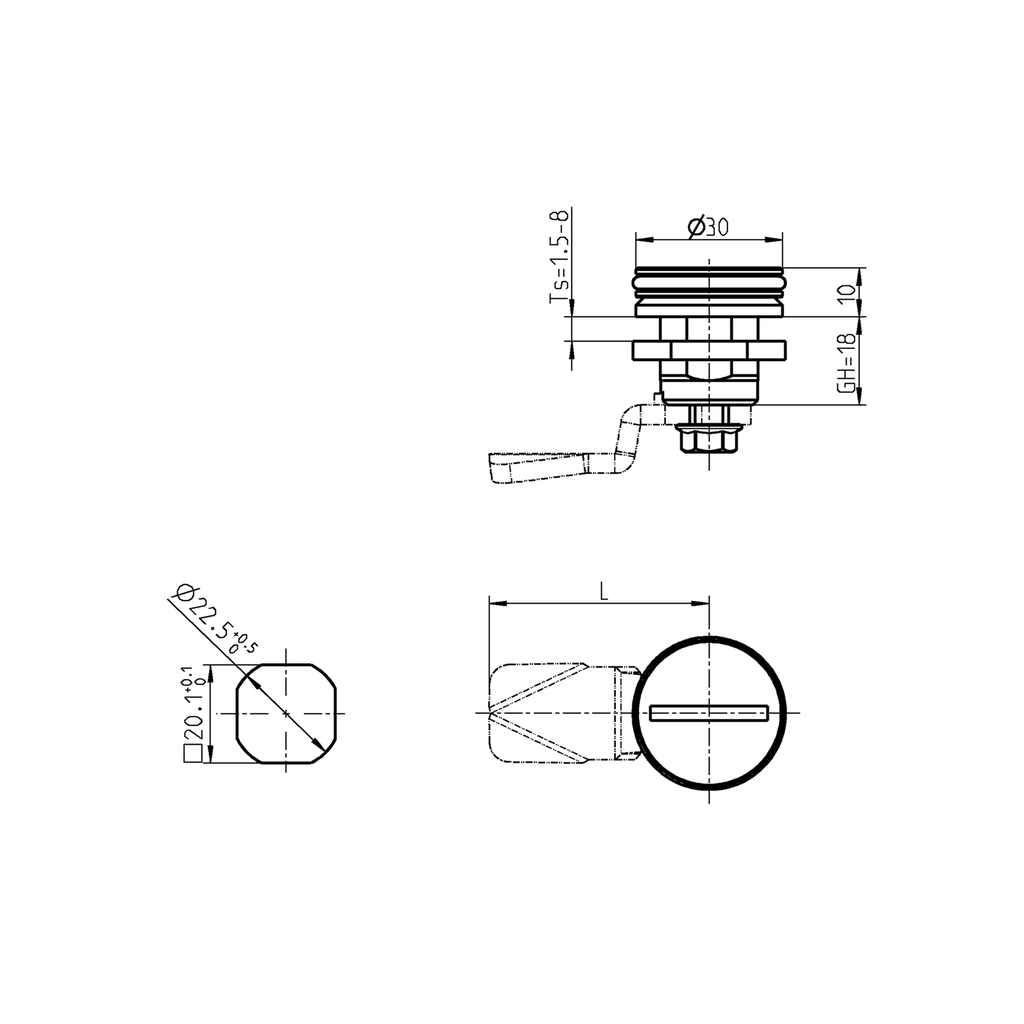

Housing Head Size:
30 x 10 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with cover
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
