Blind plug, Polyamide GF black
Quarter turn triangular 8 for hygienic areas food and medical sector, Stainless steel AISI 316L
Product Benefits:
- Prominent door lock for different door thicknesses
- Inside handle can be operated without restrictions
- Can be used without inside handle

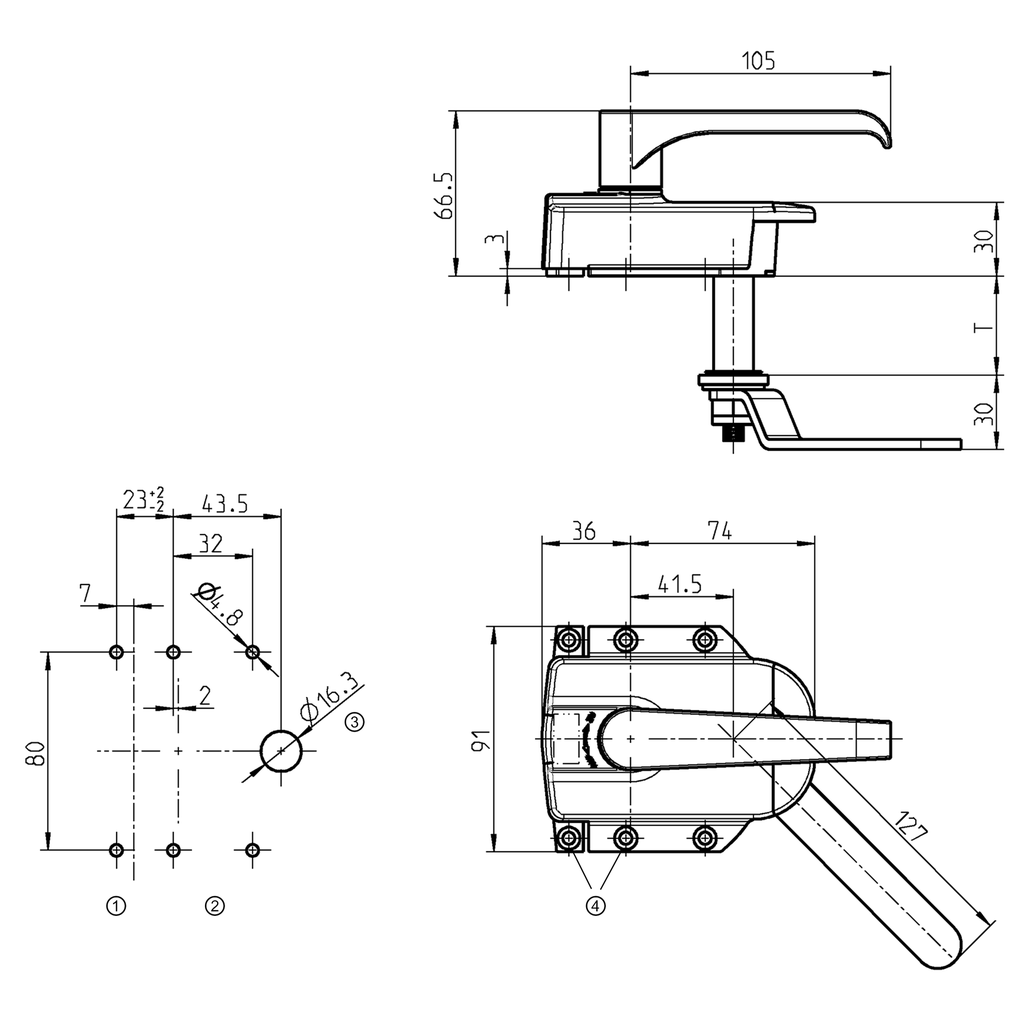

Product information:
1 = Cut out front for catch
2 = Cut out front for housing
3 = Bore hole Ø 16 continuously
4 = Countersinking for rivet in housing and catch
Internal Reference:
1000-U937
Product Type:
Other latch
Program:
1000
Material of the module :
Polyamide 66 GF 50
Surface of the module:
black
Number of Possible Locking Points:
1 point
Fixing type of housing :
rivetable
Mounting Positions :
Inside the sealing,Outside the sealing
Suitable for door thickness from:
30 mm
Suitable for door thicknesses up to:
30 mm
Locking set:
No locking set, blind
Door Version :
Left,Right
Lock Type:
Prominent door lock
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
