Internal Reference:
1000-U910
Product Type:
Insert
Program:
1000
Catalog sheet:
1B-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Insert for:
Insert for housing, classic
Type of actuation:

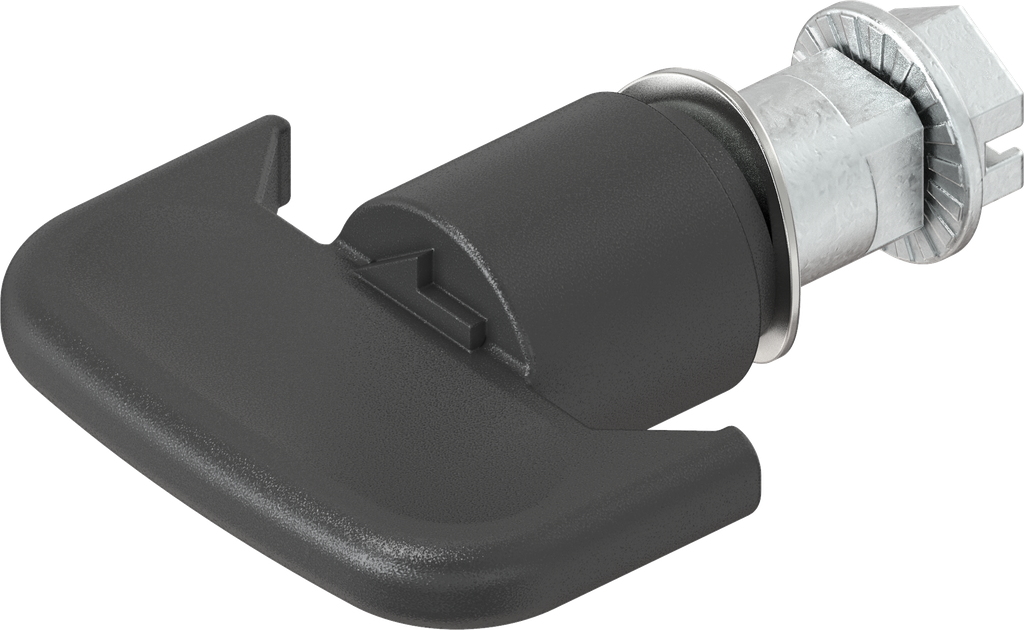

Wing knob insert
For GH measure:
18 mm
O-ring position:
Hub
Locking set:
Insert
Screw Fastening:
Metric
No Specifications
