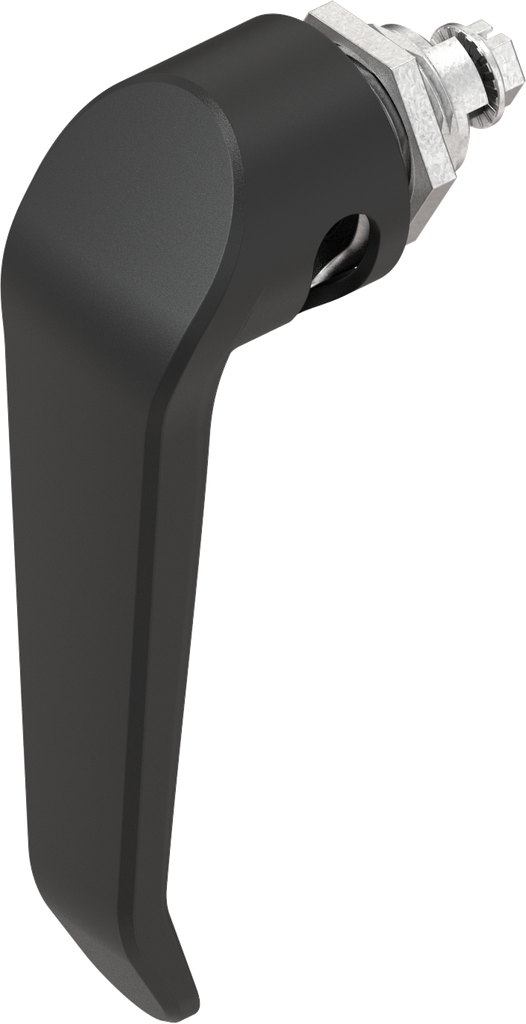

L-handle quarter turn for padlock, Stainless steel AISI 316
L-handle quarter turn for padlock, Zinc die chrome-plated
Product information:

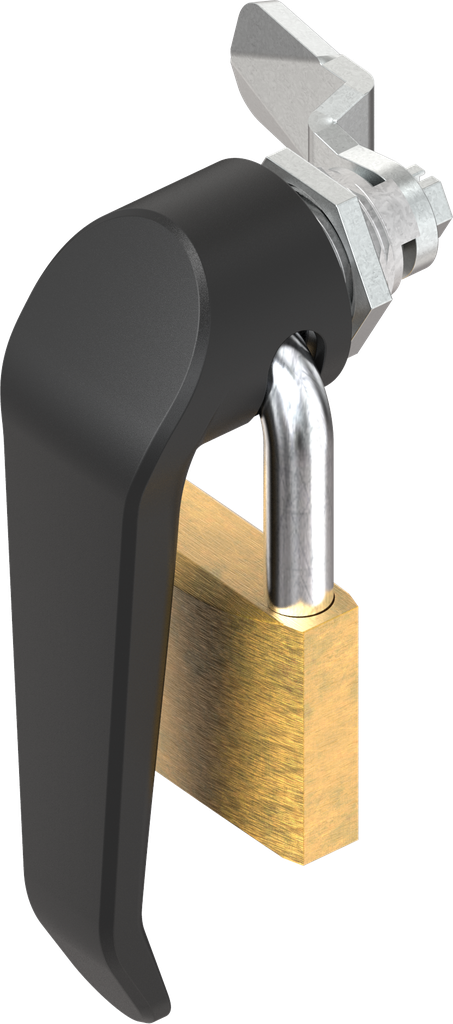

Attention: L-handle is locked when a padlock is fitted.
Internal Reference:
1000-U860-01AA
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-650
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art:
L-handle
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Padlock
Door Version :
Left,Right
Locking components:
Cam
Padlock Art:
Padlock with shackle dimension Ø 10.5
Quarter turn types:
Quarter turn with handle,Quarter turn for padlock
No Specifications
