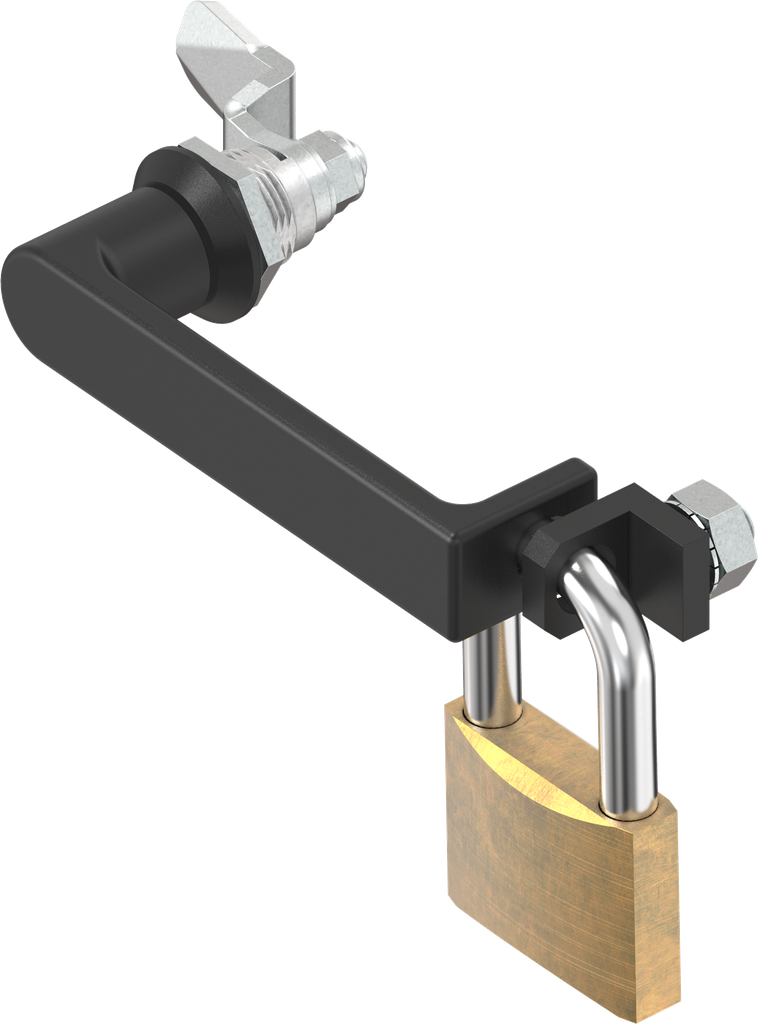

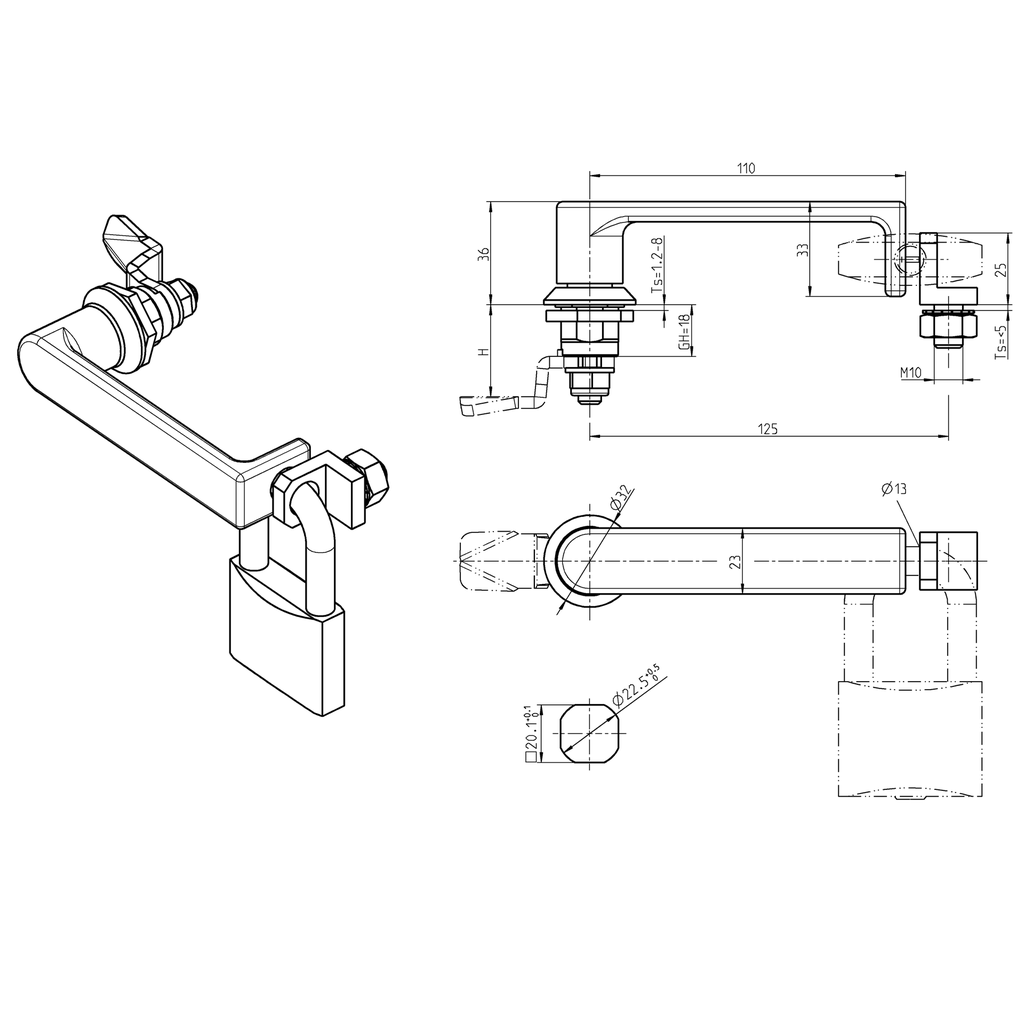

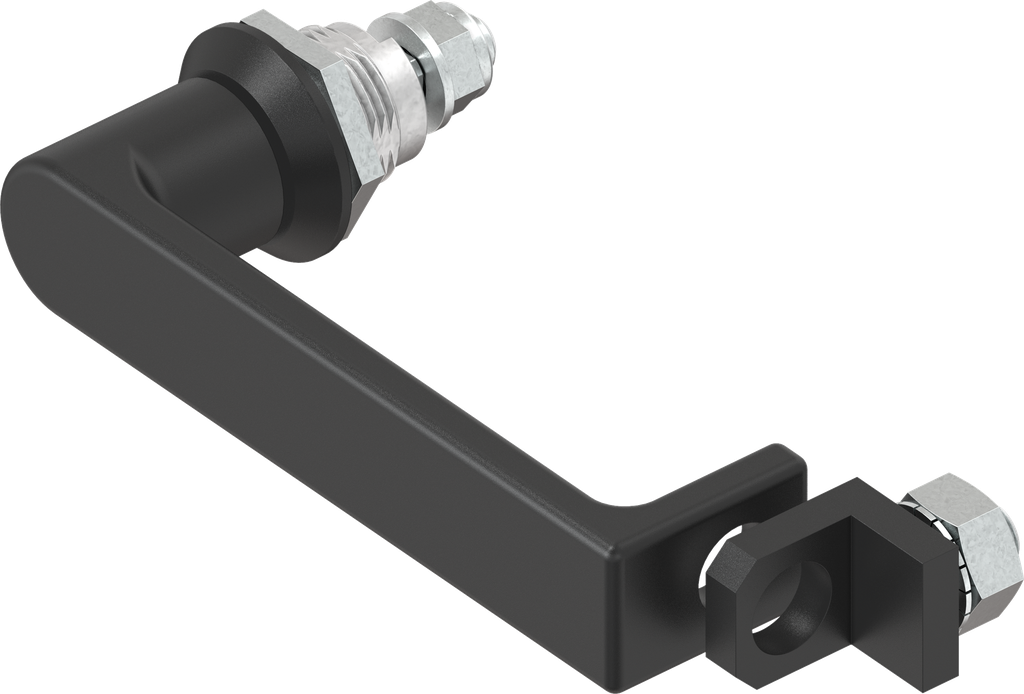

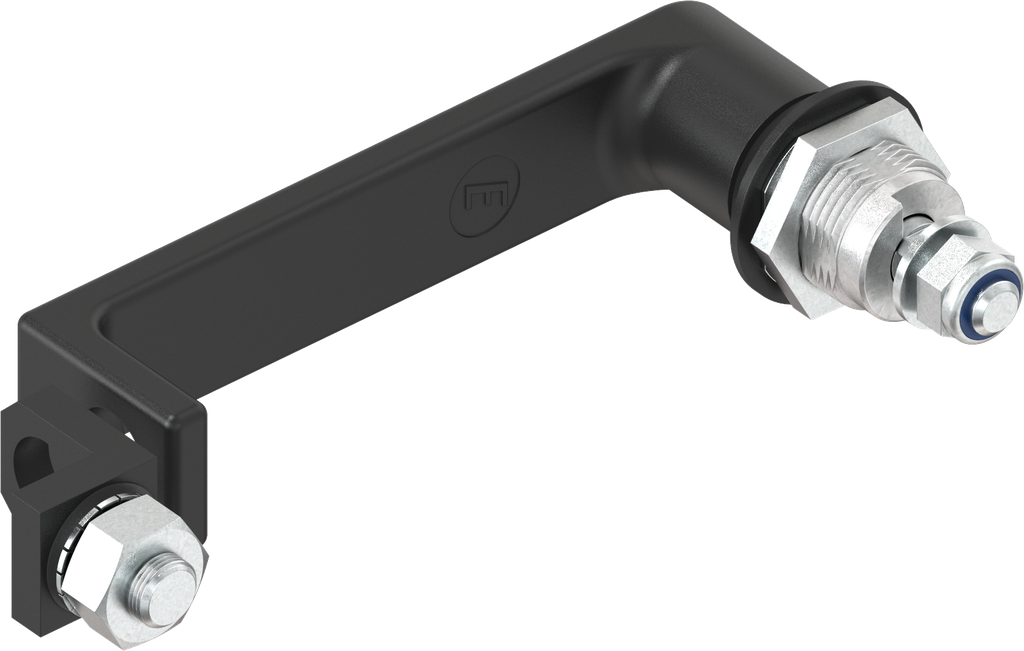

L-handle quarter turn for padlock, Steel black powder-coated; 1000-U857

https://20241023-uat.emka.opaas.sh/products/1000-u857 https://20241023-uat.emka.opaas.sh/web/image/product.template/60384/image_1920?unique=5cdb030

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1000-U857
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-690
    Material of the module : Steel
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18.0000 MILLIMETER
    Handle Art: L-handle
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Padlock
    Door Version : Left,Right
    Locking components: Cam
    Padlock Art: Padlock with shackle dimension Ø 13
    Quarter turn types: Quarter turn with handle,Quarter turn for padlock
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1B-690
    Product data sheet
    CAD file | 1000-U857_igs
    CAD file | 1000-U857_stp
