Compression latch square 8 with OPEN - CLOSED indicator, left version, Stainless steel AISI 316 pickled and passivated
Compression latch square 8 with OPEN - CLOSED indicator, left version, Stainless steel AISI 316 pickled and passivated
Housing foamed, Zinc die chrome-plated
Housing foamed, Zinc die chrome-plated

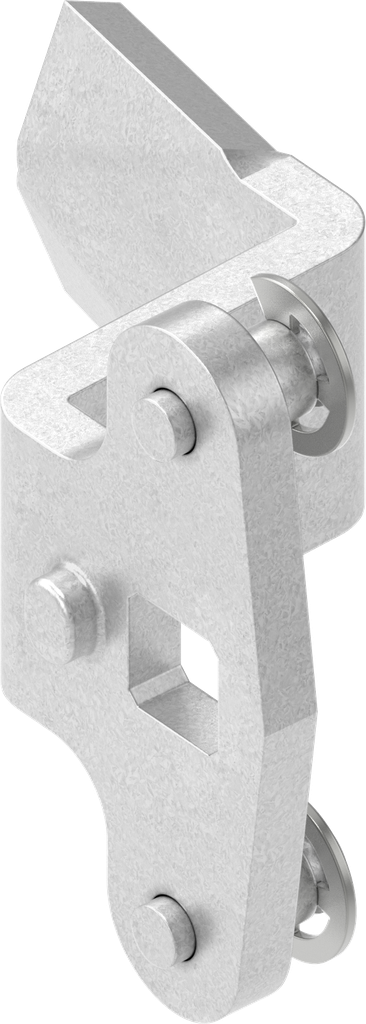

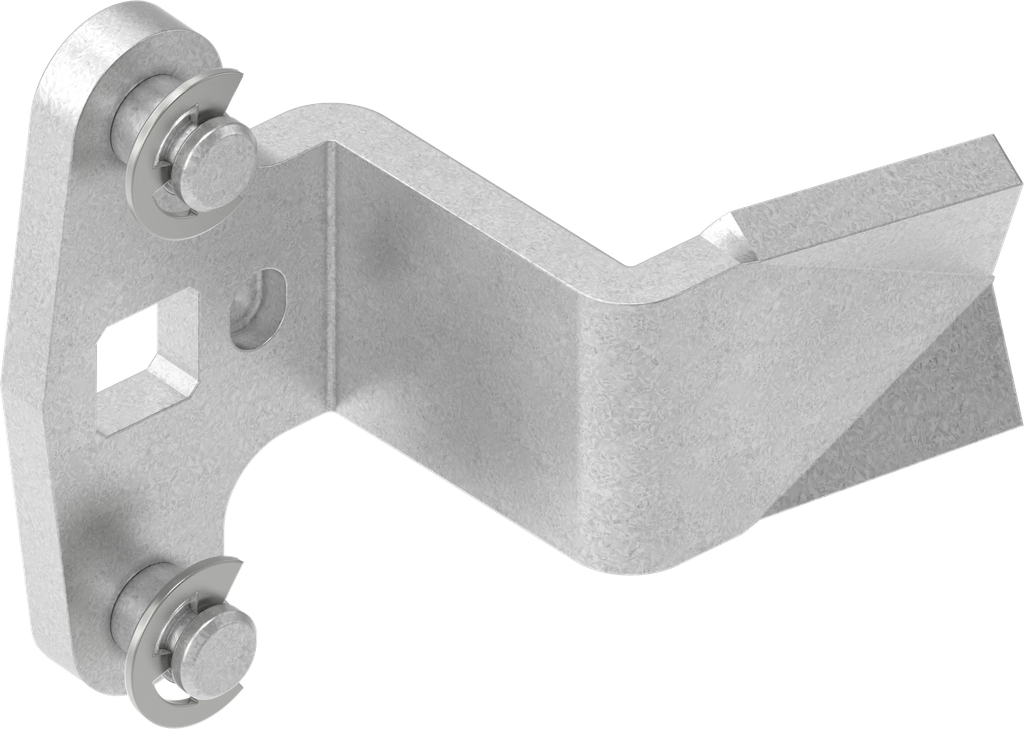

3-point cam, Steel zinc-plated; 1000-U41

https://20241023-uat.emka.opaas.sh/products/1000-u41 https://20241023-uat.emka.opaas.sh/web/image/product.template/205337/image_1920?unique=ec0a95b

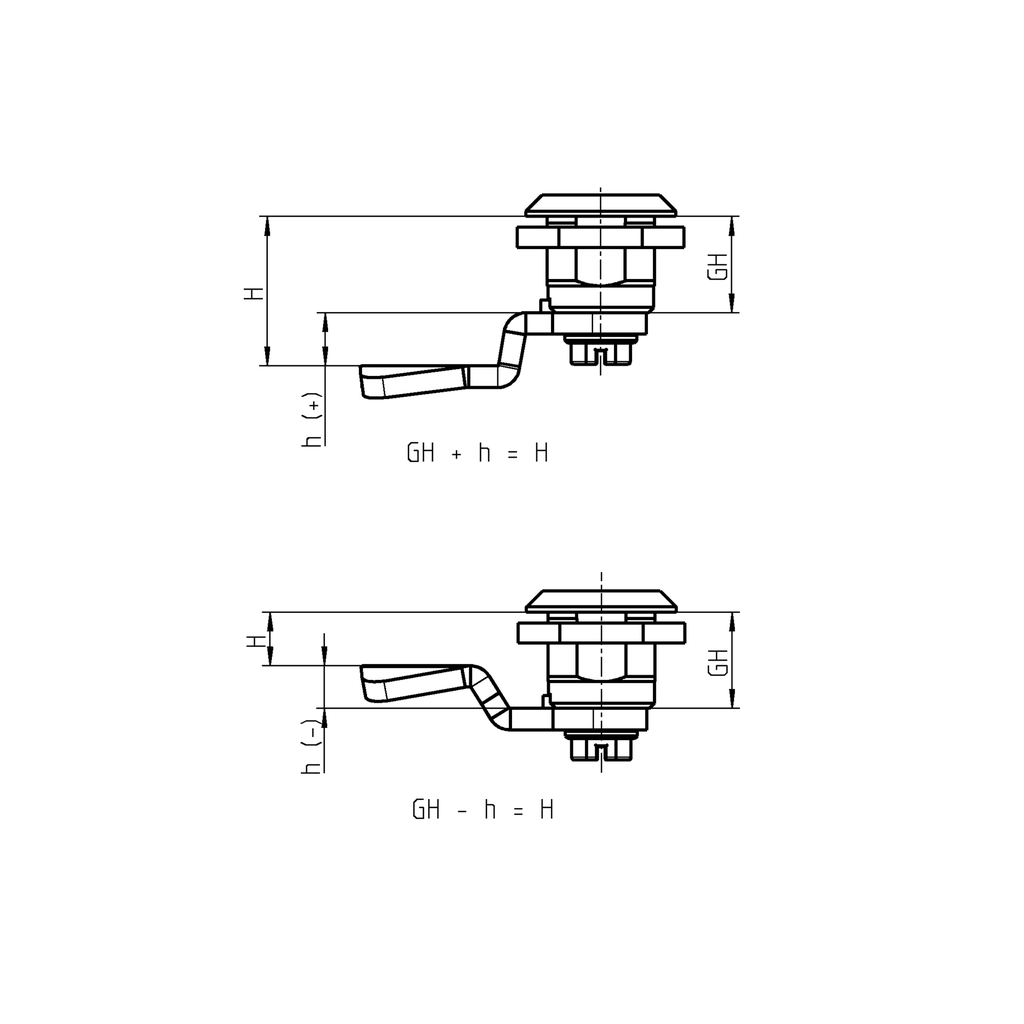

Offset h = 26 mm

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U41
    Product Type: Cam
    Program: 1000
    Catalog sheet: 3YB-440
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 26 mm

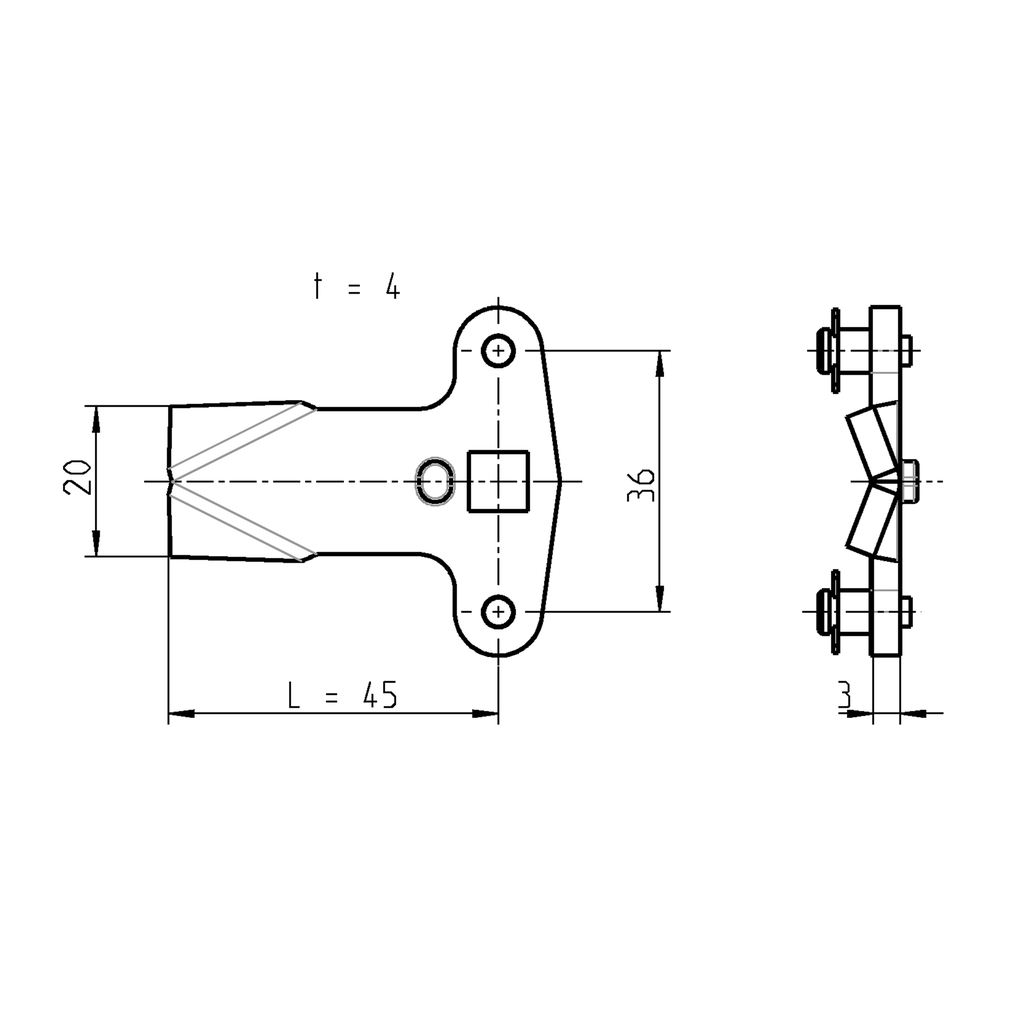

    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
    No Specifications
    View All Products
    Housing
    Rod
    Ramp
    Quarter turn
    Adapter for round rod
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-U41_igs
    CAD file | 1000-U41_stp
