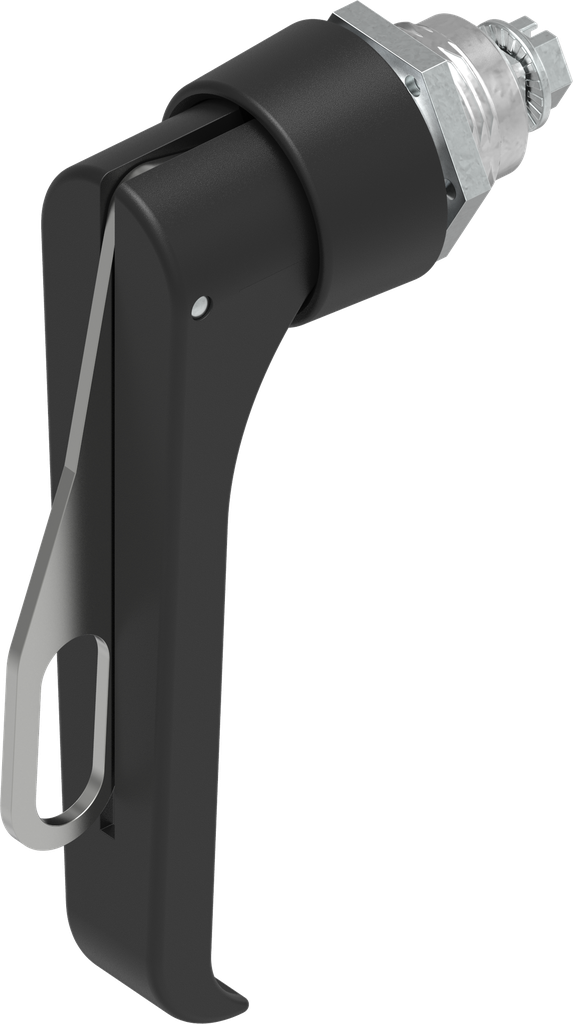

L-handle quarter turn double bit 5, Zinc die black powder-coated
Wing knob quarter turn, non-keyed, Zinc die black powder-coated
Function:
Attention:
L-handle is locked when a padlock is fitted.
Internal Reference:
1000-U402
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-620
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round

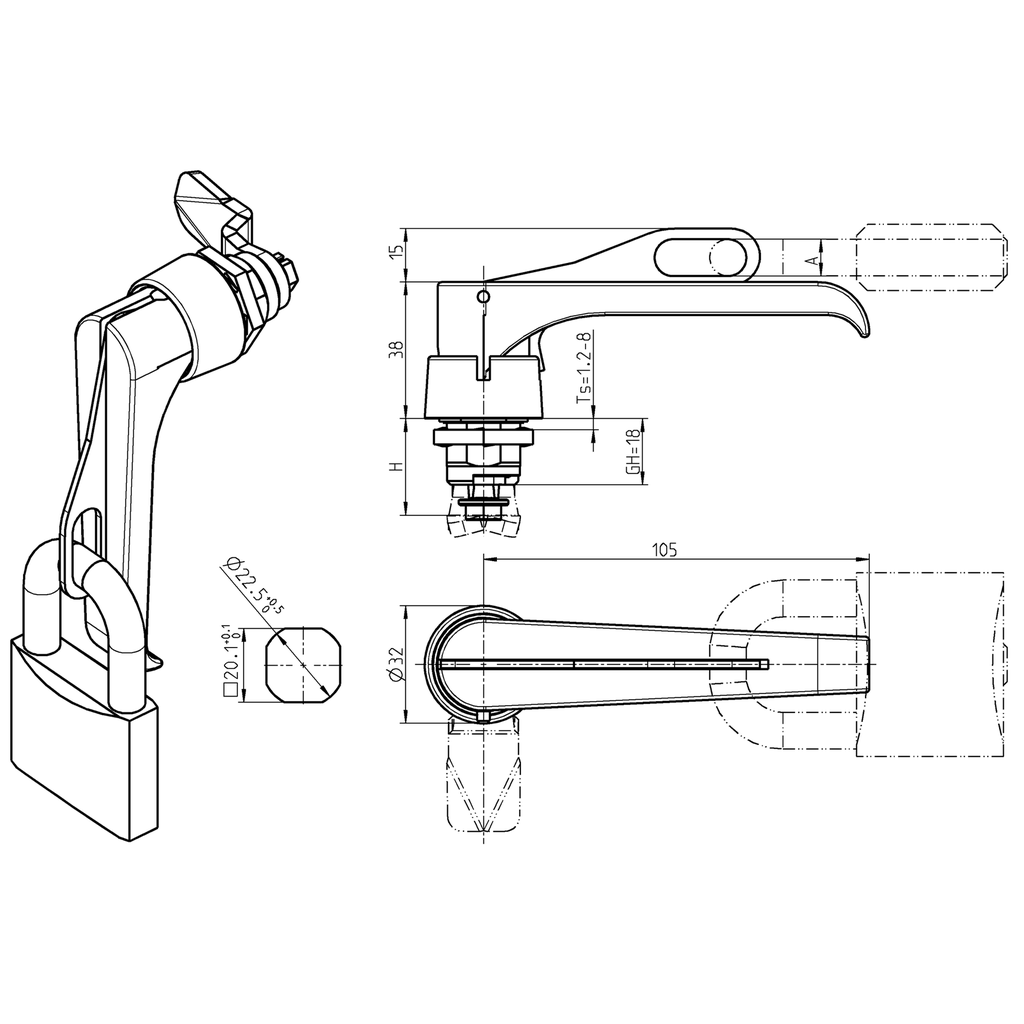

Housing Head Size:
32 x 17 mm
GH Mass:
18 mm
Handle Art:
L-handle
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Padlock
Door Version :
Left,Right
Locking components:
Cam
Padlock Art:
Padlock with shackle dimension Ø 10
Quarter turn types:
Quarter turn with handle,Quarter turn for padlock
No Specifications
