Housing, Zinc die black powder-coated

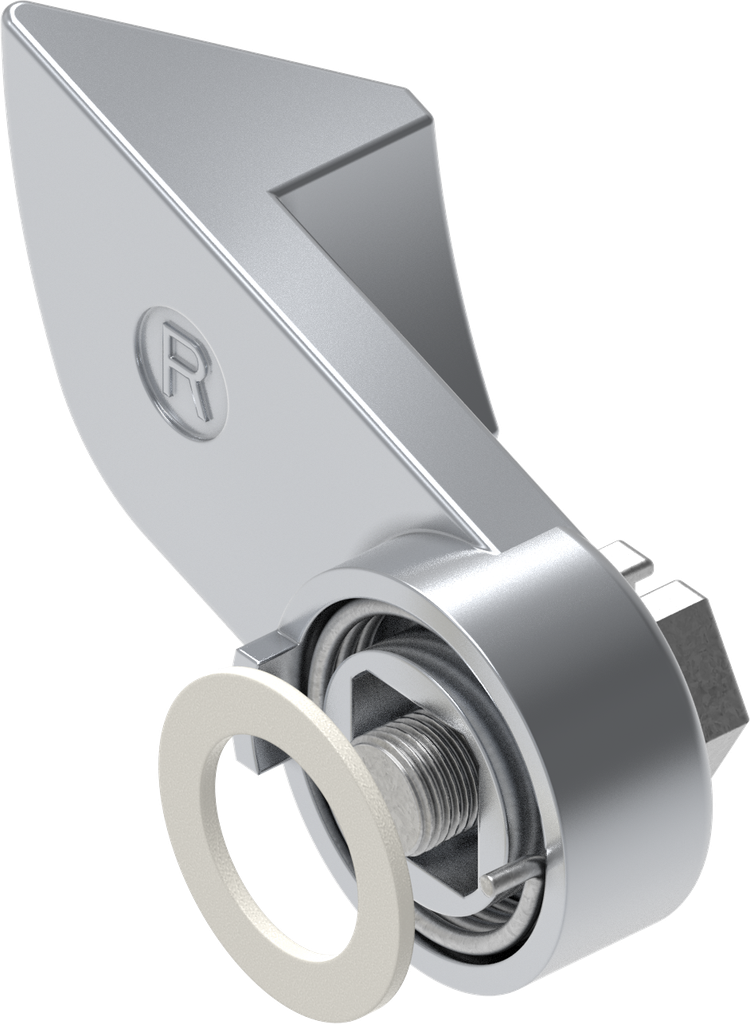

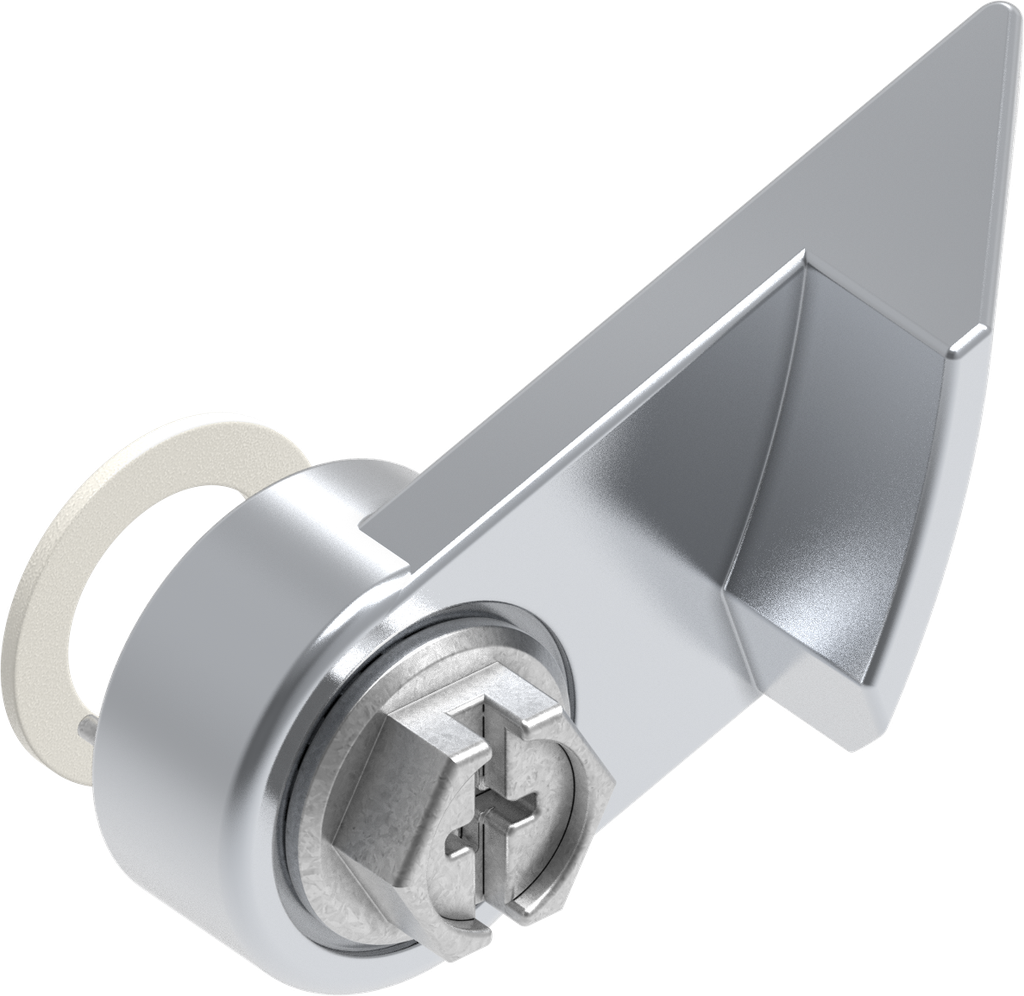

Slam cam, right version, Stainless steel AISI 316
Product Benefits:
Spring-loaded with slam effect
Product information:
Protection types IP 54 to IP 69K are not possible with this slam cam!

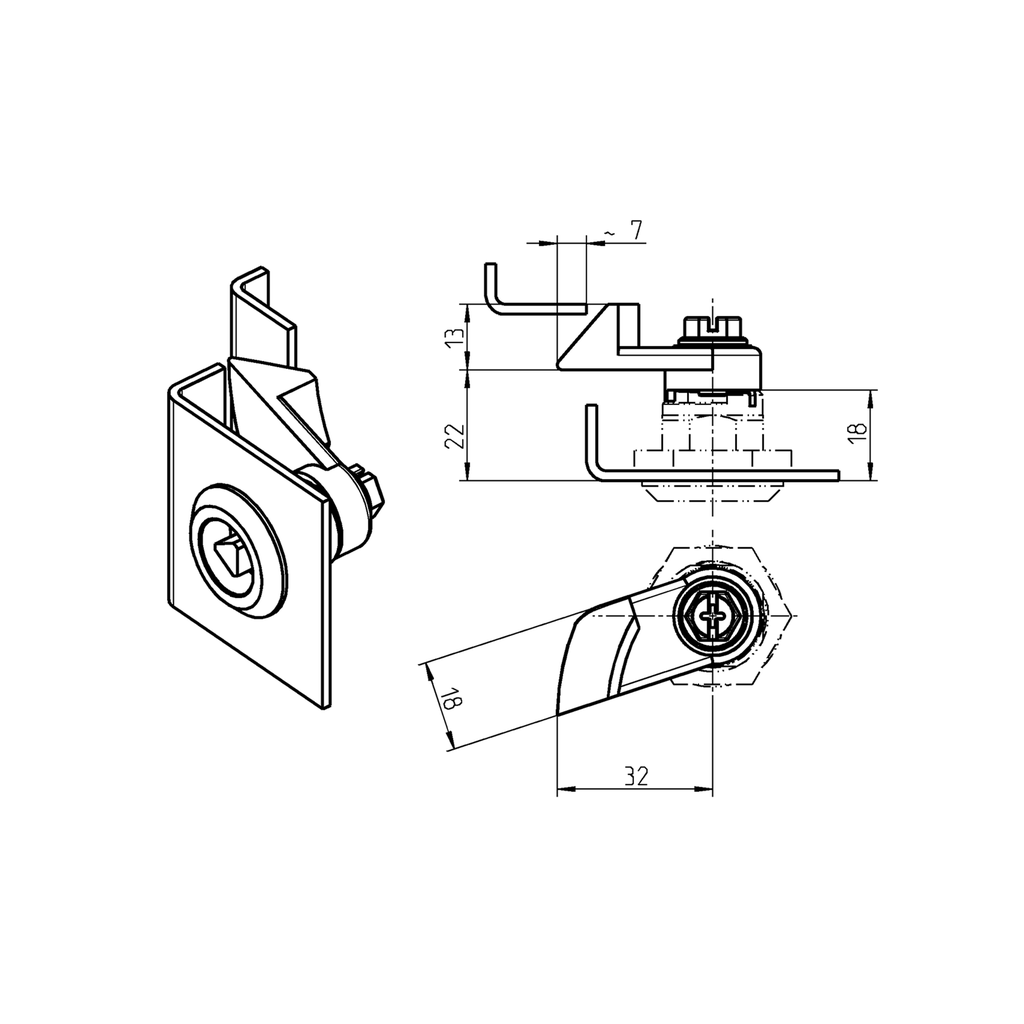

The slam cam is designed for quarter turns with GH = 18 mm.
Assembly instruction:
The spring washer delivered with the insert has to be replaced by the enclosed spacer ring.
Internal Reference:
1000-U235-N
Product Type:
Cam
Program:
1000
Catalog sheet:
1C-180
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Mounting Positions :
Inside the sealing
Slam cam:
Yes
Offset:
positive
offset of cam:
4 mm
Dimension L:
32 mm
Door Version :
Right
No Specifications
